Ikan PT4900S-PTZ-TM-V2 Quick Start Manual

Professional 19” high-bright ptz-compatible sdi teleprompter w/ widescreen talent monitor
Hide thumbs

Advertisement

Table of Contents

Quick Start Guide
PT4900S-PTZ-TM-V2
Professional 19" High-Bright PTZ-Compatible SDI Teleprompter w/ Widescreen Talent Monitor
OVERVIEW

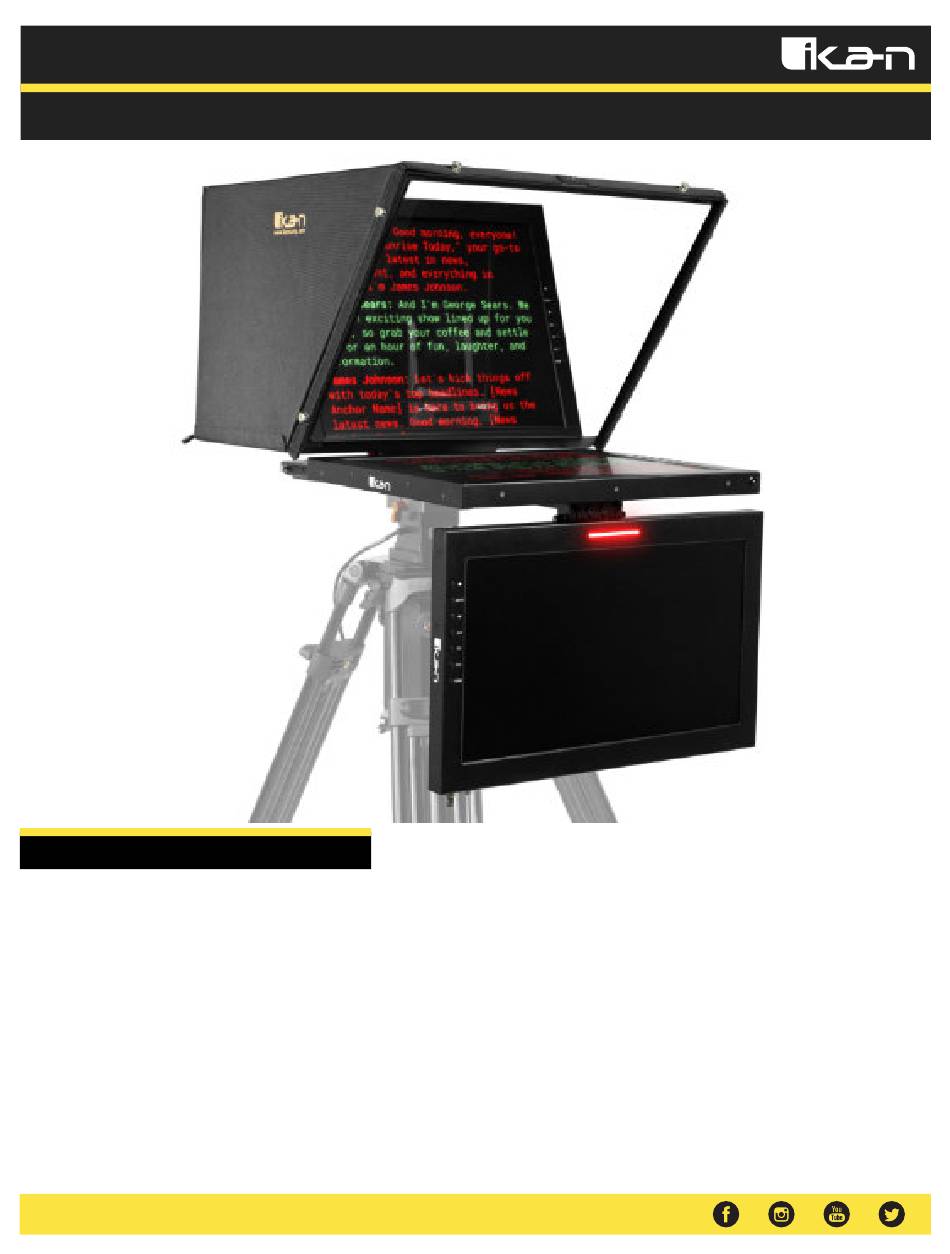

Ikan's professional teleprompter series is designed for a quick and easy setup to work efficiently in studio or broadcast applications. The
included teleprompter hood fully encloses the PTZ camera allowing it to move freely inside the hood. The teleprompter features a 65/35
reflective glass that makes the reflection easier to see for the presenter. The lightweight aluminum teleprompter has multiple 1/4-20" and 3/8-
16" threads for mounting to a tripod or pedestal. The monitor includes SDI, HDMI, and VGA video inputs. Its high bright screen ensures clear
visibility in any lighting condition. An intuitive image flip button allows for easy adjustment of the display orientation. The monitor also features a
wide viewing angle and a 19" widescreen SDI talent monitor with a built-in tally light.
