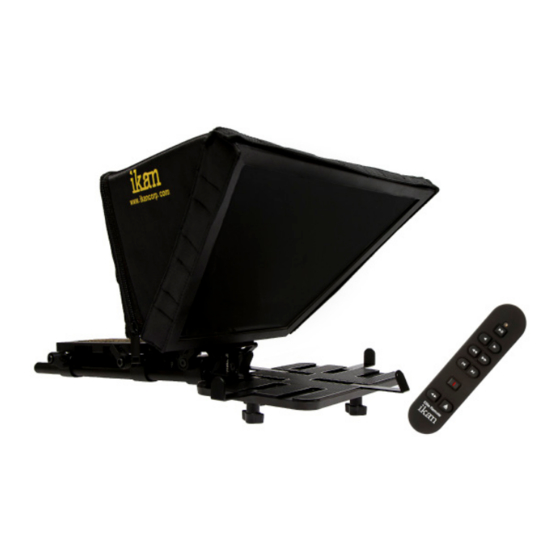

- Page 1 PT-ELITE-U-RC QUICKSTART GUIDE Elite Universal Tablet Teleprompter Kit w/ Elite Remote CHECKED BY www.ikancorp.com 713.272.8822 support@ikancorp.com © 2015 ikan Corporation. All rights Reserved...
-
Page 2: What's Included
PT-ELITE-U-RC What’s Included Hood 30/70 Pr ompter Glass Glass Fram e LBP-03 EV2 Adjustable Camcorder iPad Te lepr ompter Mount 1 x Hex Key mm Baseplate (Large ) 1 x Hex Key 2.5 mm 1 x D-Rin g 2 x 4mm X 12mm Socke t... -
Page 3: Getting Started
Getting Started 1. Fit Frame to iPad Mount. Secure with 2 x Socket Head Countersink Screw. Bottom view of tablet Mount & Frame. **Align the two holes under the tablet Mount to the highlighted set of holes on PT-AKM-2. - Page 4 2. Remove 4 x Small frame screws and 2 x brackets. Insert prompter glass into frame. Secure prompter glass by replacing brackets and screws. ** Glass with more reflectivity faces out. Front view Vertical Adjustments to the frame can be made by loosening the Hex Screws located on the inside of the unit.
- Page 5 Adjustment Points (Adjust to fit your camera size) Numerous Adjustment Points allow for precise positioning modifications. Loosen Thumb Screws to move forward/backwards along 12” Rods. Loosen Hex Screws to make vertical and horizontal adjustments. 3. Secure Large Baseplate Rods to Rod Clamp.
- Page 6 4. Attach the magnetic hood to glass frame. Quick Release Mounting Options The ikan Large Baseplate is compatible with both the Canon TA100 & ikan-WDGL Tripod Adapter Systems. Simply mount your Quick Release Plate to the bottom of the Large Baseplate component on the appropriate end, using four (4) Socket Head Countersink Screws.
-
Page 7: Learn More
(*Even if the product is still within the warranty period.) • Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company. • Damage caused by natural disaster, abnormal voltage, and environmental factors, etc. ©2015 ikan Coporation. All rights reserved...
