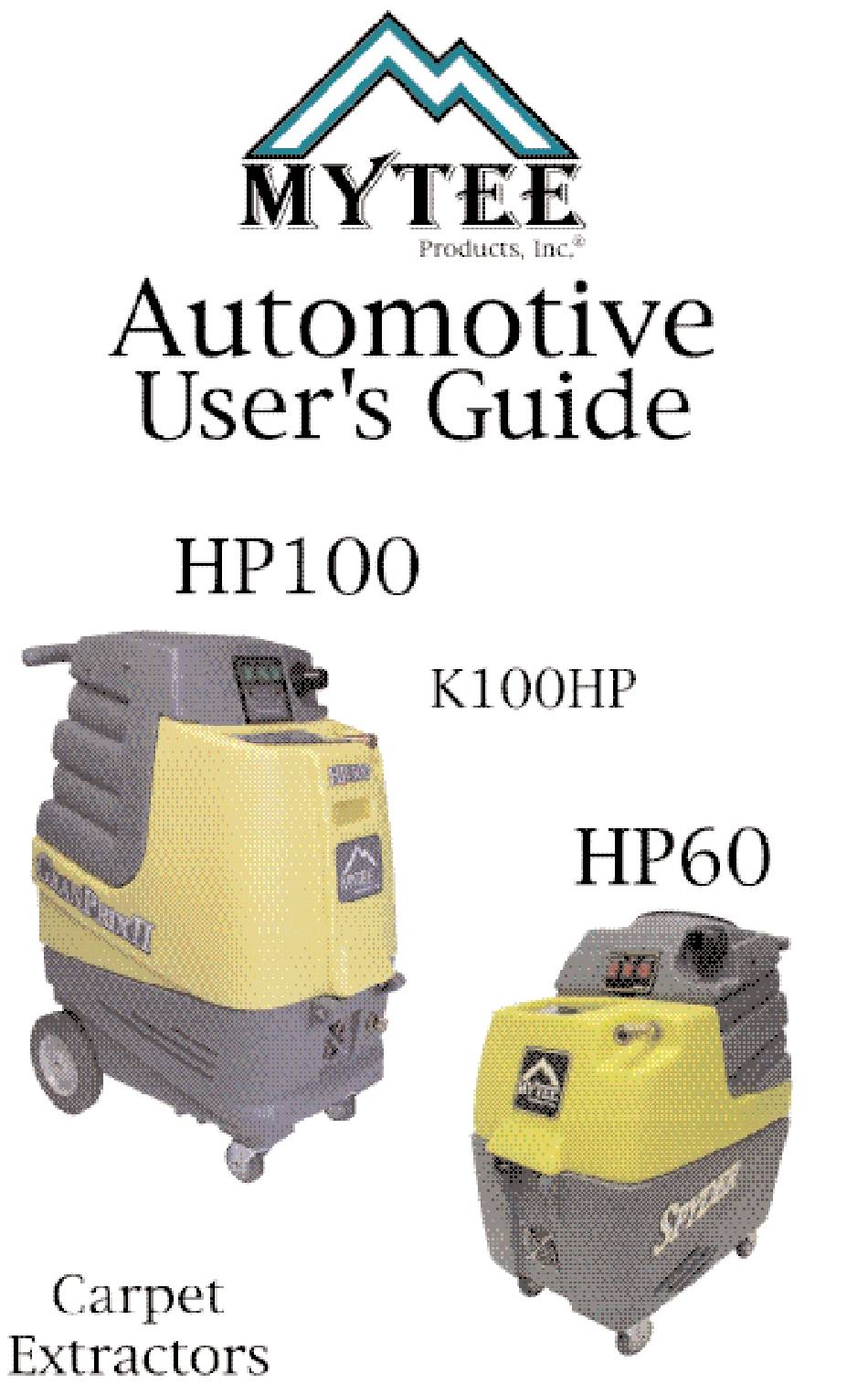

  • Page 1 12/02...
  • Page 2 Congratulations on the purchase of your new detailing equipment. As you are already aware, the scene of the detailing world is becoming more high tech, and we at Mytee Products, Inc. strive to keep you on the cutting edge with superior quality and technology.

  • Page 3: Table Of Contents

    Table of Contents General Safety ........3 Warranty ........4 RMA .

  • Page 4: General Safety

    General Safety/ Warnings These precautions have been written for your safety and the safety of others in mind. These precautions MUST BE FOLLOWED at all times to avoid serious injury, harm, and/or death, and damage to the unit. Warning: To reduce the risk of fire, electrical shock, or injury: 1.

  • Page 5: Warranty

    Mytee warrants a percentage of the cost of replacement of rotationally-molded housings pro-rated as follows: Mytee will pay 100% of replacement cost in the first year from the date of purchase, 75% of replacement cost in the second year from the date of purchase and 25% in the third year from the date of purchase.

  • Page 6: Rma

    Mytee or a Mytee authorized distributor or service center to describe the claim and to receive and follow instructions for documenting and resolving the claim. In addition, the purchaser must provide the product to which the claim applies to Mytee or a Mytee authorized distributor or service center for a thorough inspection.

  • Page 7: Model Description

    25' 12-3 cord. Each unit draws about 19 amps. (115v) To run effectively, use a dedicated 20-amp outlet. The HP100 has 11 gallon solution and recovery tanks. The K100HP has 9 gallon solution and recovery tanks. The HP60 has 6 gallon solution and recovery tanks.

  • Page 8: Operation

    Because the vacuum is on, the fluid will quickly be sucked back into the hand tool. You will notice that the area you have just cleaned will be damp. This is normal. To speed up the drying process, use the model A9700, Mytee Dry airmover.

  • Page 9: Troubleshooting

    TROUBLESHOOTING SYMPTOM: Unit will not turn on. PROBLEM: Not plugged in. SOLUTION: Plug machine in proper outlet. PROBLEM: Circuit breaker has popped. SOLUTION: Reset circuit breaker. Make sure no other items are running on the same circuit as machine. Outlet must be a 20-amp circuit. PROBLEM: Wire from power cord has become disconnected from terminal block.
  • Page 10 SOLUTION: Flush out heaters with system maintainer. If they are still blocked, replace heaters. PROBLEM: Brass check valve is stuck. SOLUTION: Replace with new check valve. PROBLEM: Pump motor brushes are worn out. SOLUTION: Replace pump. PROBLEM: Pump is pulsating. SOLUTION: Tighten all hoses.
  • Page 11 SOLUTION: Clean upholstery tool. PROBLEM: Drain valve is not shut completely. SOLUTION: Close drain valve completely. PROBLEM: Vacuum tank lid is not on tightly. SOLUTION: Secure the vacuum tank lid on tightly. PROBLEM: Vacuum tank lid or the vacuum tank is cracked. SOLUTION: Replace the vacuum tank lid or the vacuum tank.

  • Page 12: Parts List

    DESCRIPTION WHERE USED PART NUMBER HP60 3 stage HP100 C302 vacuum motor K100HP HP60 100 psi pump HP100 C305 K100HP HP60 200 psi pump HP100 C322 (upgrade) K100HP Maintains all System maintainer internal hose lines 3601 12 quarts per case &...
  • Page 13 DESCRIPTION WHERE USED PART NUMBER HP60 1/4” female HP100 B102 quick disconnect K100HP 8400 Valve repair kit 8700 B141 (wands) HP60 1200 watt heater HP100 A907 (for 2400 watt upgrade) K100HP HP60 600 watt heater HP100 A905A K100HP HP60 Lighted 2 position...
  • Page 14 DESCRIPTION WHERE USED PART NUMBER HP60 1/2” filter strainer HP100 B119A K100HP HP60 210 degree auto HP100 E573 thermostat K100HP HP60 375 degree manual HP100 E574 thermostat K100HP Green circuit light HP60 indicator HP100 E512 (with 2400w K100HP upgrade) HP60...

  • Page 15: Notes

    IMPORTANT INFORMATION Model # ________________________ Serial # ______________________ Distributor name and phone# ______________________________________ Date of purchase ___________________ NOTES...
