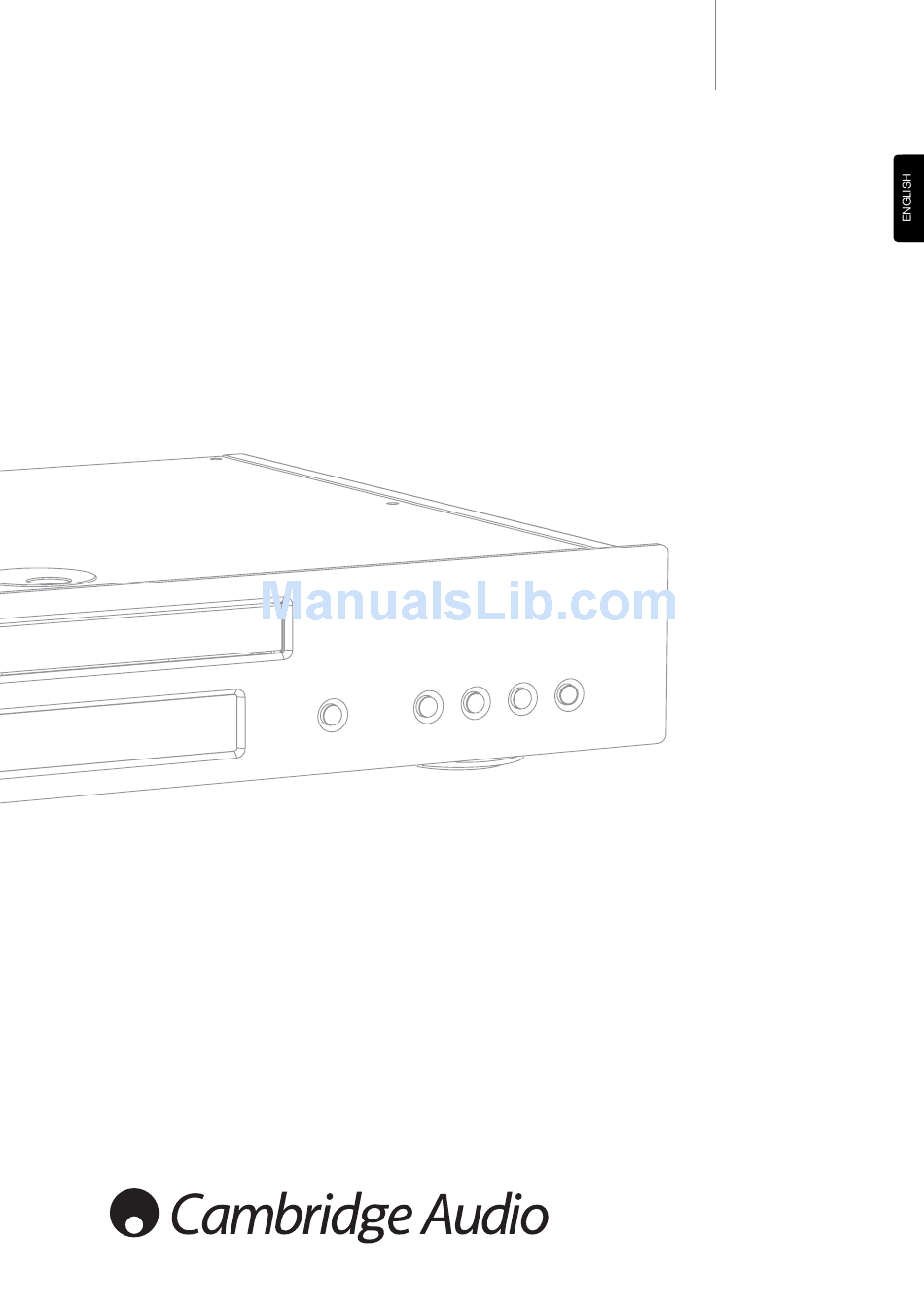

- Page 1 540D V2 DVD player User’s manual...
-
Page 2: Table Of Contents
AV receiver for surround-sound use. Your 540D V2 can only be as good as the system it is connected to. Please do not compromise on your partnering equipment. Naturally we particularly recommend equipment from the Cambridge Audio Azur range, which have been designed to the same exacting standards as this product. -
Page 3: Limited Warranty
To obtain warranty service, please contact the Cambridge Audio authorised dealer from which you purchased this product. If your dealer is not equipped to perform the repair of your Cambridge Audio product, it can be returned by your dealer to Cambridge Audio or an authorised Cambridge Audio service agent. -
Page 4: Important Safety Instructions
Important safety instructions Please take a moment to read these notes before installing your 540D V2, as they will enable you to get the best performance and prolong the life of the unit. We advise you follow all instructions, heed all warnings and keep the instructions for future reference. -
Page 5: Rear Panel Connections
5.1 Channel Audio Out If Downmix is set to ‘Off’ in the Speaker Setup section of the 540D V2’s Setup menus, these sockets provide 5.1 output from the 540D V2's built in Dolby Digital / Pro Logic II decoder. This can be used to connect to the 5.1 audio line-level inputs of an amplifier/AV receiver or amplified... -
Page 6: Front Panel Controls
Display Used to display the 540D V2’s functions and playback state etc. Please refer to the following ‘Front Panel Display’ section for more information. Disc tray DVD/Compact Disc tray. Use the Open/Close button to activate. -
Page 7: Remote Control
Disc Menu Press to go to a DVD disc’s own setup menu. Setup Press to enter the 540D V2's Setup menu. Please refer to the ‘DVD player setup’ section of this manual for more information. Info While playing a DVD, press to cycle through the following... -
Page 8: Audio Connections
The digital audio outputs should be used to decode the surround-sound soundtracks of DVDs with an external AV Receiver (Note: SPDIF output must be set to ‘RAW Bitstream’ in the Audio Setup menu). The 540D V2 sends an undecoded audio bitstream to the AV Receiver for decoding into 5.1/6.1/7.1 etc. -
Page 9: Analog Video Connections
Analog video connections The 540D V2 can output video in both fully digital (HDMI) and analog (Composite, S-Video, RGB/SCART and Component) formats. If your TV set supports HDMI then this is the preferred format (see next section). If your TV set supports only analog video the preferred connection is (in declining order of quality) Component, then RGB/SCART, S-Video and finally Composite. -
Page 10: Surround-Sound Formats
540D V2 to the AV Receiver. Consult your receivers manual. If it is desired to use the 540D V2's own built in PLII decoder a 5.1 analog connection from the 540D V2's 5.1 Audio outputs to a suitable amplifier/speaker package should be made, downmix should be set to ‘Off’... -
Page 11: Dvd Player Setup
DVD player setup Press the Setup button on the remote to enter the 540D V2 Setup menus: Running along the top of the screen are four icons that represent the four main menu sections: Video Setup Audio Setup Dolby Digital Setup... -
Page 12: Angle Mark
Either select ‘NTSC’ or ‘PAL’ to force the analog video outputs of the 540D V2 to the TV system in your area (the 540D V2 will also then automatically convert any PAL DVDs to NTSC playback or vice versa as necessary) or select ‘AUTO’... -
Page 13: -- Au Dio Setup Me Nu
With the unit in Stop mode, the disc drawer open and Downmix set to Large ‘Off’, select ‘On’ to carry out a test tone procedure. The 540D V2 will Small then play ‘white-noise’ sound from each of the 5.1 outputs in turn. They... -
Page 14: Dolby Digital Setup Menu
When HDMI Audio is set to Follow SPDIF the HDMI output will exactly follow the SPDIF output as per the previous section and table. When the 540D V2 is connected to an AV receiver by HDMI there are two possibilities depending whether the receiver accepts HDMI audio... -
Page 15: Preference Menu
Go To Pre fere nc e Page The Preferences menus are used to set the default language tracks the 540D V2 will use for Soundtrack, Subtitles and Disc Menu if they are available on the disc. The 540D V2 will automatically select the appropriate language from those available on the disc where possible. -
Page 16: Basic Operating Instructions
Press to cycle through the various zoom magnifications (and back to normal display). DivX/MP4 playback If a disc (CD or DVD) with DivX/MP4 files on it is loaded, the 540D V2 will detect these file types and show a special folder navigation screen as below:... -
Page 17: Custom Installation Use
3.5mm mini-jack lead can be used for a more reliable electrical connection. The 540D V2 also features a ‘direct’ IR/Control code for On/Off that can be accessed on the supplied remote control for teaching into C.I. systems as follows: Press and hold the Standby button. - Page 18 Cambridge Audio Gallery Court Hankey Place London SE1 4BB England www.cambridge-audio.com © 2007 Cambridge Audio Ltd...
