Fanimation Zonix FP4620 Series Specification Sheet page 2

The Zonix
6˝dia
12½˝
14° Blade Pitch
Blade Sweep = 54˝ dia
Net Hanging Weight: 20 lbs
INSTALLATION REQUIREMENTS:
Ceiling fan attaches to electrical junction box securely anchored and capable of withstanding a load of at least 50 lbs.
ELECTRICAL REQUIREMENTS:
Ceiling fan requires a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit.
MOTOR SPECS:
153 x 18 motor is designed for optimal performance with this fan.
FAN SPEEDS:
4 fan speeds with reversing switch (on top of the motor). High – 150 rpm; Med High – 115 rpm; Med – 85 rpm; Low – 50 rpm
CONTROL OPTIONS:
The fan-only wall control (CW40) is included. Reversing switch located on fan housing. Installation and operating
instructions provided with control. Optional controls are: C2 wall control, C4 hand-held remote with receiver.
LIGHTING OPTION:
The optional 1-bulb downlight fi xture (13 watt, Energy-Effi cient CFL bulb included) is available and sold separately.
Maximum downlight wattage not to exceed 13 watts. NOTE: Fan supplied with fan only wall control. Light kit will require
an additional control/switch.
DOWNROD OPTIONS:
The Zonix fan comes with a 1˝ Dia. x 6˝ (DR1-6) downrod. Optional downrods are available in 12", 18", 24", 36", 48", 60",
™
and 72". For installations requiring a longer downrod, a downrod coupler is available. The Zonix
on a sloped ceiling up to 30°. Most sloped ceiling installations require a downrod longer than the standard 6˝ downrod.
Optional sloped ceiling ball kits (SCB1-52) are available for up to 52°. Call tech support for more information.
BLADE SETS:
A set of three 26˝ reversible (cherry/walnut) wood blades are included. Optional set of three 20˝ reversible (cherry/
walnut–B4442CWR) and satin nickel (B4442SN) blades are available and sold separately. Not recommended for Damp
Location.
DAMP LOCATION:
Fan not rated for Damp Location usage.
Copyright 2008 Fanimation, Inc.

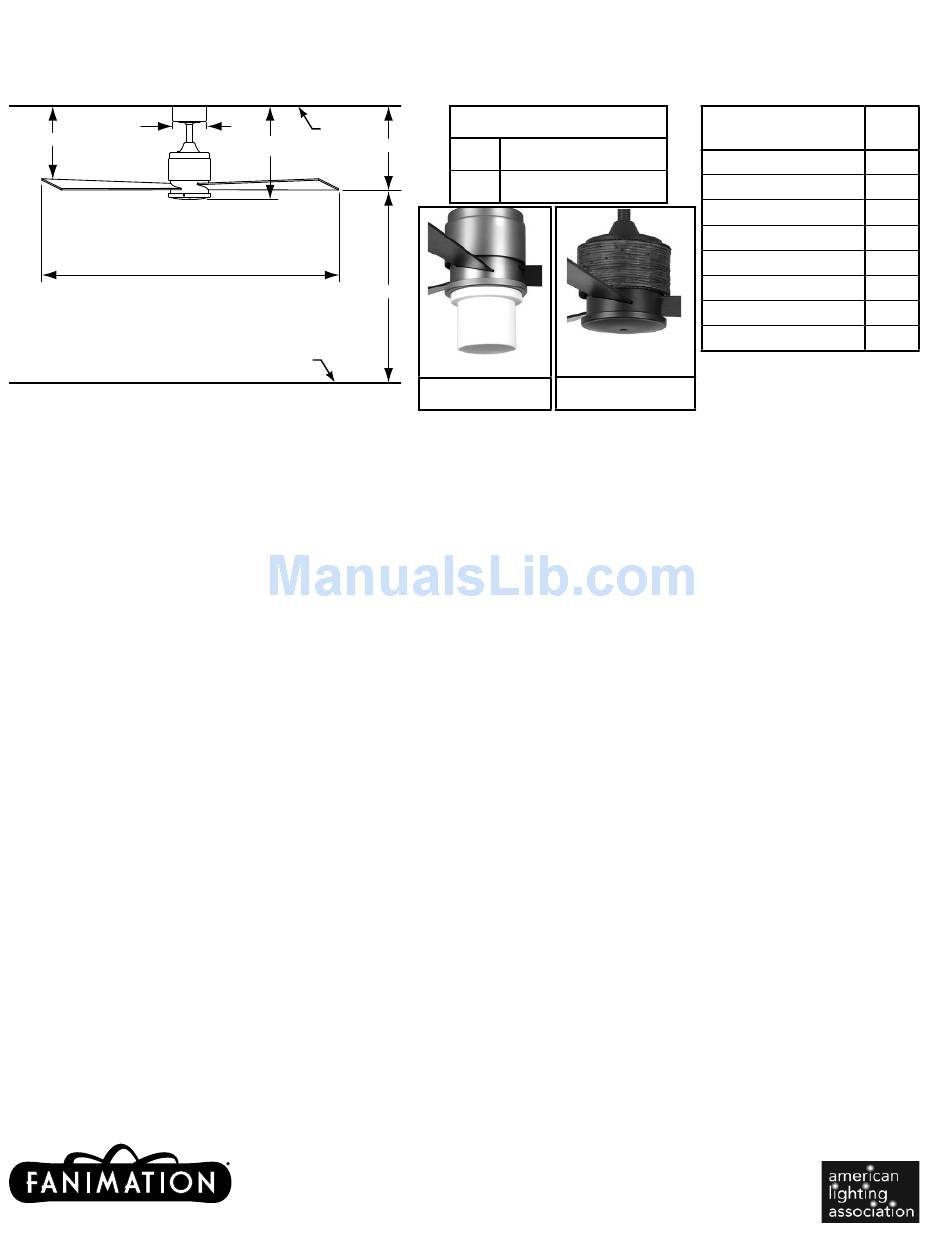

Fan Assembly – FP4620**
™
Ceiling
A
14˝
7´ min
Floor
Dimensions shown in inches
10983 Bennett Parkway
Zionsville, IN 46077
Toll Free (888) 567-2055
FAX (866) 482-5215
Outside U.S. call (317) 733-4113
Visit Our Website www.fanimation.com
Available Finish
OB Oil-Rubbed Bronze
SN Satin Nickel
Optional Woven
Cherry or Walnut
Optional Light Kit
Housing Accessory
LK4620** HA4620CY/WA
Distance from Ceiling
A
to Bottom of Fan
Fan w/6˝ downrod 15½˝
Fan w/12˝ downrod 21½˝
Fan w/18˝ downrod 27½˝
Fan w/24˝ downrod 33½˝
Fan w/36˝ downrod 45½˝
Fan w/48˝ downrod 57½˝
Fan w/60˝ downrod 69½˝
Fan w/72˝ downrod 81½˝
™ fan can be mounted
2008/06
