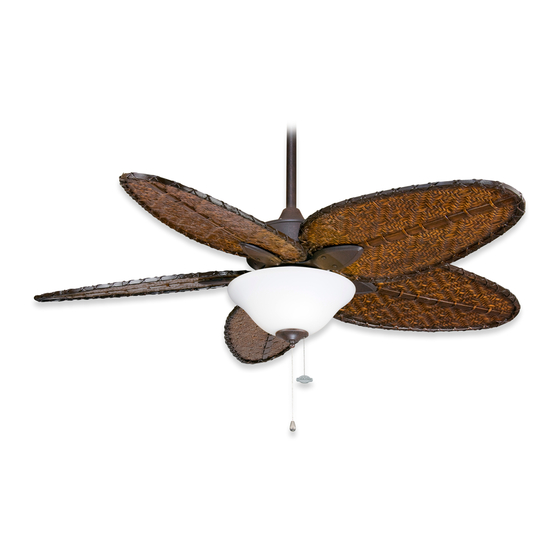

- Page 1 The WindPointe FP7300; 3-Bladed Model FP7500; 5-Bladed Model Models No. FP7300, FP7400 & FP7500 OWNER’S MANUAL READ AND SAVE THESE INSTRUCTIONS Ceiling Fans FP7400; 4-Bladed Model Windpointe ™ FP7300 FP7400 FP7500 Fan Model (Std) Net Weight (lbs) Net Weight (kgs) 28.46...
-
Page 2: Table Of Contents
Fanimation. 7. Fanimation reserves the right to modify or discontinue any product at any time and may substitute any part under this warranty. 8. Under no circumstances may a fan be returned without prior authorization from Fanimation. The receipt of purchase must ac- company authorized returns and must be sent freight prepaid to Fanimation. -
Page 3: Tools Needed For Assembly
Fanimation. Substitution of parts or accessories not designated for use with this product by Fanimation could result in personal injury or property damage. Contact your retail store for missing or damaged parts. -
Page 4: Electrical And Structural Requirements
Electrical and Structural Requirements Your new ceiling fan will require a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit. The outlet box must be securely anchored and capable of withstanding a load of at least 50 lbs. Figure 1 depicts different structural configurations that may be used for mounting the outlet box. -
Page 5: How To Assemble Your Ceiling Fan
How to Assemble Your Ceiling Fan 1. Remove the Hanger Ball by loosening the setscrew in the Hanger Ball until the ball falls freely down the Downrod. (Figure 1) Remove the Pin from the Downrod, then remove the Hanger Ball. Retain the Pin and Hanger Ball for reinstallation in Step 5. -
Page 6: How To Hang Your Ceiling Fan
How to Hang Your Ceiling Fan ▲WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before hanging. NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation. -
Page 7: How To Wire Your Ceiling Fan - Pull Chain
How to Wire Your Ceiling Fan - Pull Chain If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. ▲WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. -
Page 8: Assembling And Mounting The Fan Blades, And Switch Housing
Assembling and Mounting the Fan Blades and Switch Hsg INSTALLATION NOTE Do not connect fan blades until the fan is completely installed. Installing the fan with blades assembled may result in damage to the fan blades. ▲WARNING To reduce the risk of personal injury, do not bend the blade holders when installing, balancing the blades or cleaning the fan. -
Page 9: Operating Instructions - Pull Chain
Assembling and Mounting the Fan Blades and Switch Hsg 10. Assemble the Housing Switch Cup onto the assembled Adapter with three screws. (Figure 6) 11. Restore Power and your fan is now wired to be turned on and off from the fan pull chain speed control. Operating Instructions - Pull Chain 1. -
Page 10: Parts List
Chain Coupler Chain Fob Wire Connectors (4) Blade Mounting Hardware Bag Containing: ˝–24 x 11 mm Washer-Hd Screws (Models FP7300 & FP7400) ˝–24 x 17 mm Washer-Head Screws (Model FP7500) Fiber Washers ˝–24 Carriage Head Nuts Blade Holder Mounting Hardware Bag Containing: ¼–20 x ½˝... -
Page 11: Exploded-View Drawing
FP7300**, FP7400**, FP7500** FP7300** Blade Holders FP7400** Blade Holders FP7500** Blade Holders NOTE: The illustration shown is not to scale or its actual confi guration may vary Figure 1 Exploded-View... -
Page 12: Trouble Shooting
For your own safety turn off power at fuse box or circuit breaker before trouble shooting your fan. Trouble 1. Fuse or circuit breaker blown. 2. Loose power line connections to the fan, or loose switch wire connections in the switch housing. 1. - Page 14 10983 Bennett Parkway Zionsville, IN 46077 Toll Free (888) 567-2055 FAX (866) 482-5215 Outside U.S. call (317) 733-4113 Visit Our Website @ www.fanimation.com Copyright 2008 Fanimation 2008/06...
