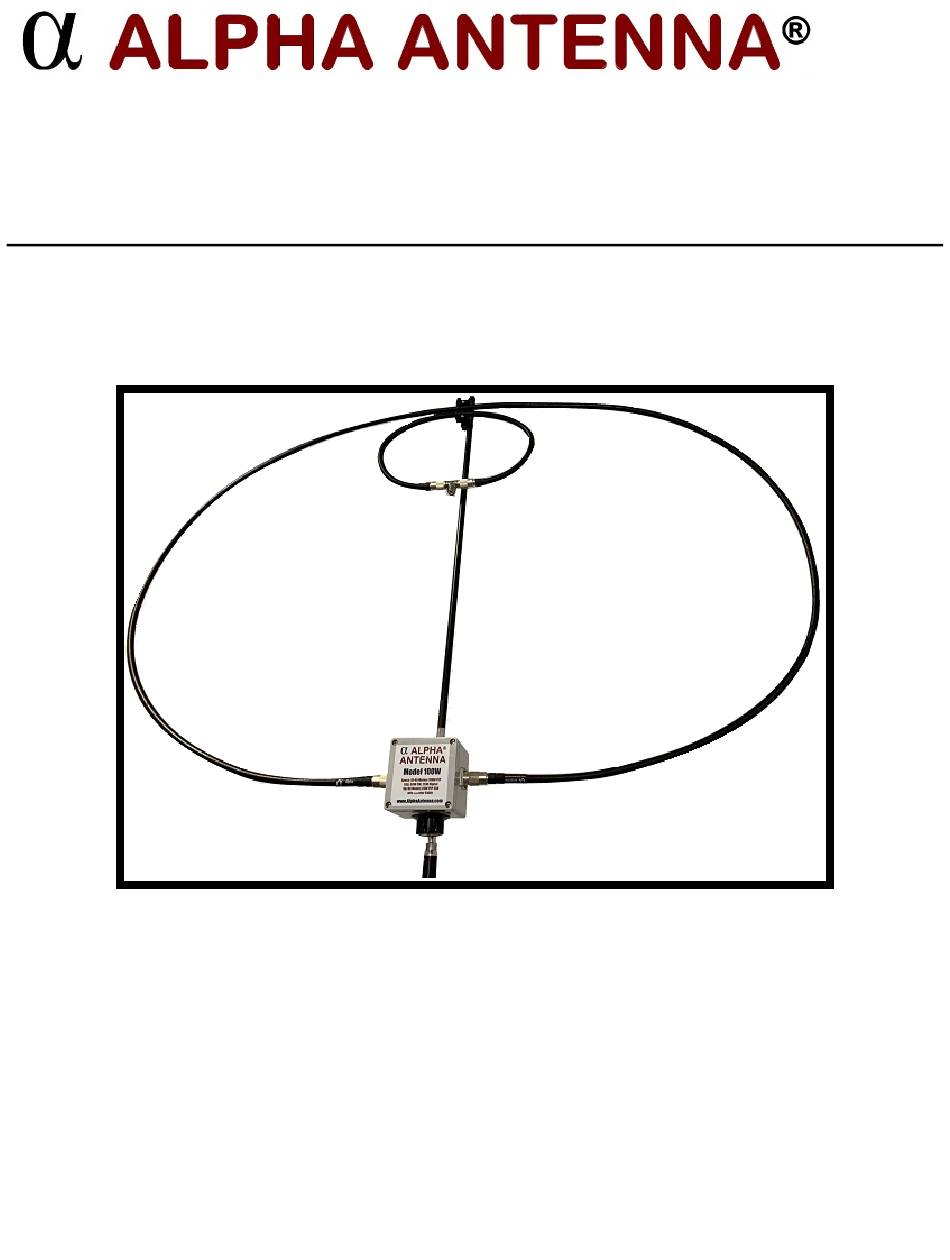

Model – 100W Alpha Loop
Operating Manual, Version 5.0, June 11, 2019
Operation
The model 100W Alpha Loop is a 10‐40 Meter transmit/receive antenna, which handles 25 Watts Digital, 50 Watts CW,
and 100 Watts PEP SSB.
Excess RF Exposure Warning
In the United States, the Federal Communications Commission has established guidelines for human exposure to Radio
Frequency (RF) electromagnetic fields no matter what the antenna type. The commission's requirements are detailed in
parts 1 & 2 of the FCC's rules and regulations {47 CFR, 1.1307(b), 1.1310, 22.1091, 2.1093}. It is the responsibility of the
owner/operator of this device to follow all applicable warnings and precautions regarding human exposure to RF fields.
Additional interference with other electrical devices can occur. Additional reference: http://www.arrl.org/rf‐exposure
Support Contacts
If you have questions about your antenna, please feel free to contact us.
Email: support@alphaantenna.com ‐ Phone: 1‐888‐482‐3249
WEB: www.alphaantenna.com – Video Tutorials: www.YouTube.com/AlphaAntenna
Page 1
Advertisement
Related Manuals for Alpha Antenna 100W Alpha Loop
Summary of Contents for Alpha Antenna 100W Alpha Loop
- Page 1 ____________________ Model – 100W Alpha Loop Operating Manual, Version 5.0, June 11, 2019 Operation The model 100W Alpha Loop is a 10‐40 Meter transmit/receive antenna, which handles 25 Watts Digital, 50 Watts CW, and 100 Watts PEP SSB. Excess RF Exposure Warning In the United States, the Federal Communications Commission has established guidelines for human exposure to Radio Frequency (RF) electromagnetic fields no matter what the antenna type. The commission’s requirements are detailed in parts 1 & 2 of the FCC’s rules and regulations {47 CFR, 1.1307(b), 1.1310, 22.1091, 2.1093}. It is the responsibility of the owner/operator of this device to follow all applicable warnings and precautions regarding human exposure to RF fields. Additional interference with other electrical devices can occur. Additional reference: http://www.arrl.org/rf‐exposure Support Contacts If you have questions about your antenna, please feel free to contact us. Email: support@alphaantenna.com ‐ Phone: 1‐888‐482‐3249 WEB: www.alphaantenna.com – Video Tutorials: www.YouTube.com/AlphaAntenna Page 1...
- Page 2 Assembly Screw the tripod onto the bottom of the grey Alpha Match. Screw the center support pole onto the top of the grey Alpha Match box, then remove the Rubber Cap on the top of the center support pole. Keep that rubber cap in a safe place (like your pocket). Locate the small Coaxial feed Loop: Slide the clips that are attached to the small Coaxial Feed Loop onto the support pole. Locate the large Coaxial outer Loop element: Slide the clips that are attached to the large Coaxial Feed Loop onto the support pole. Replace the Rubber cap onto the top of the center support pole. Attach the PL259 connectors on the outer loop to the grey box: Attach the PL‐259 connectors on the larger Coaxial Loop Element to the SO‐239 connectors on the grey Alpha Match box. Attach your coax: Connect your PL259 to the T‐Connector on the small inner loop, and then run your coax to your equipment. Tuning: Start with MINIMUM power & select your frequency, then turn the black knob Optional 40‐80M on the grey Alpha Match till your rigs meter peaks with the loudest audible noise floor. Booster Cable The Booster cable Fine Tuning: Slide the inner/outer loop up or down the center support pole while enables 20W PEP SSB on monitoring for the lowest SWR on an inline SWR meter, your rigs SWR meter, or an 40/60/80M and installs in antenna analyzer, as you change the distance between the loops. Series with the 10‐40M outer loop. BEFORE increasing your power to 100W, please ensure your SWR is optimally tuned. Page 2...
