Model – 100W Alpha Loop
Operating Manual, Version 6.4, July 17, 2020

Operation

The model 100W Alpha Loop is a 10-40 Meter transmit/receive antenna, which handles 100W PEP SSB, 50W CW, or 25W
for sporadic use of digital modes (10W for continuous use of digital modes).

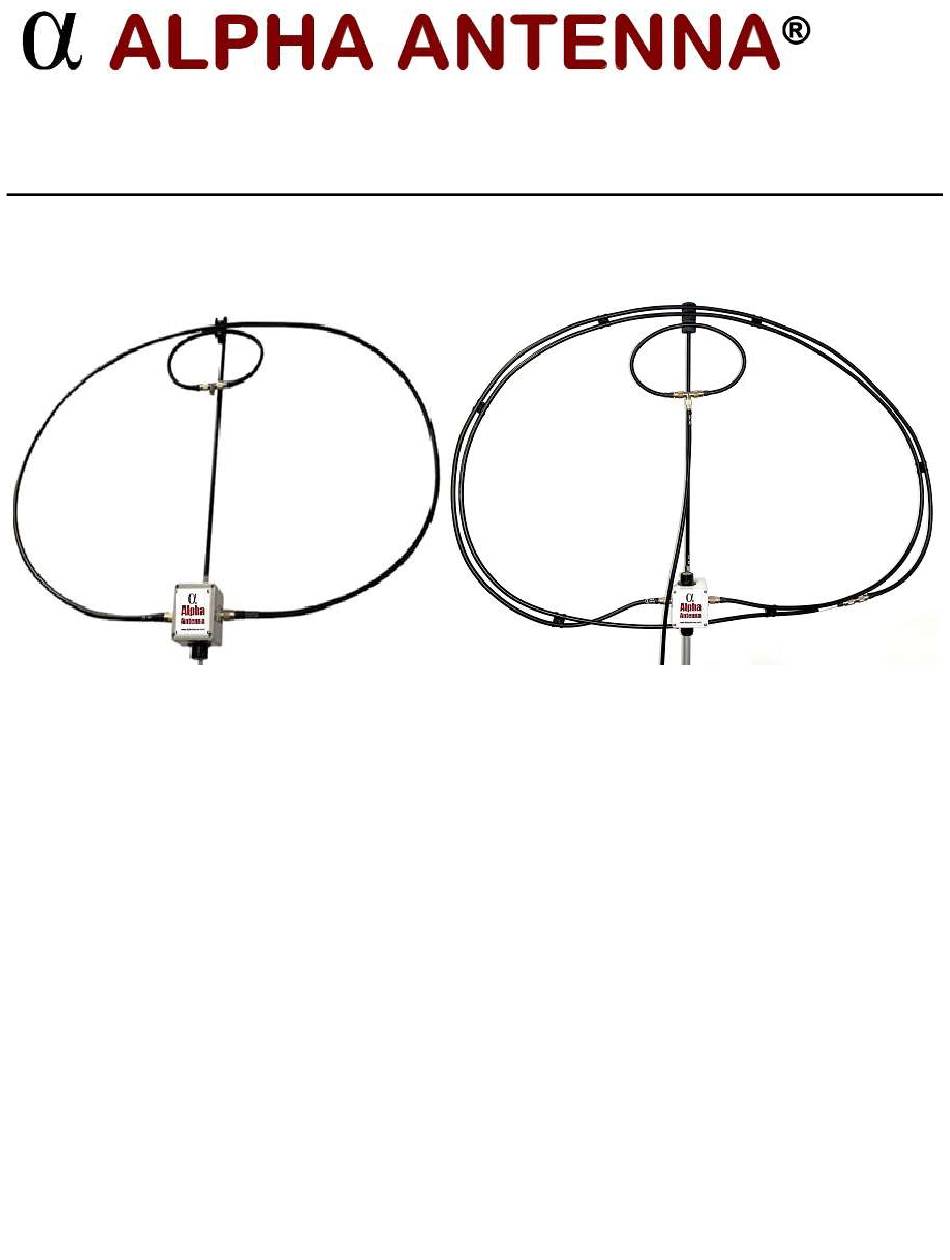

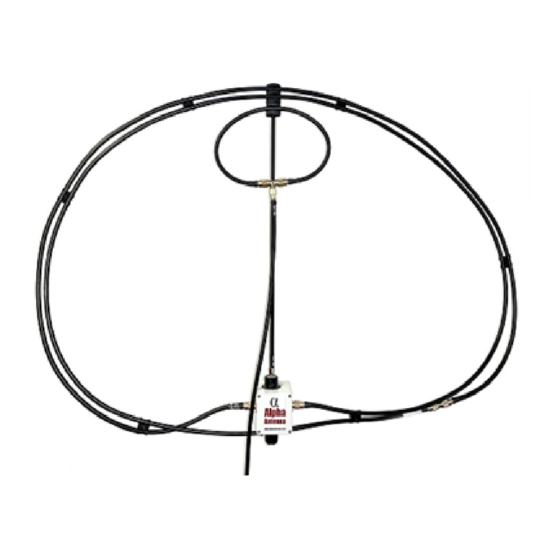

10-40 Meters 40-80 Meters

Excess RF Exposure Warning

In the United States, the Federal Communications Commission has established guidelines for human exposure to Radio
Frequency (RF) electromagnetic fields no matter what the antenna type. The commission's requirements are detailed in
parts 1 & 2 of the FCC's rules and regulations {47 CFR, 1.1307(b), 1.1310, 22.1091, 2.1093}. It is the responsibility of the
owner/operator of this device to follow all applicable warnings and precautions regarding human exposure to RF fields.
Additional interference with other electrical devices can occur. Additional reference: http://www.arrl.org/rf-exposure

Mic Gain settings

For all voice modes, adjust your equipment's Mic Gain so your meter does not peak when speaking, which will typically be
a setting between 9 and 11. This will ensure you do not have a distorted voice transmission by keeping the antenna and
equipment from being overdriven.
Support
If you have questions about your antenna, please feel free to email us at alphaantenna@gmail.com
