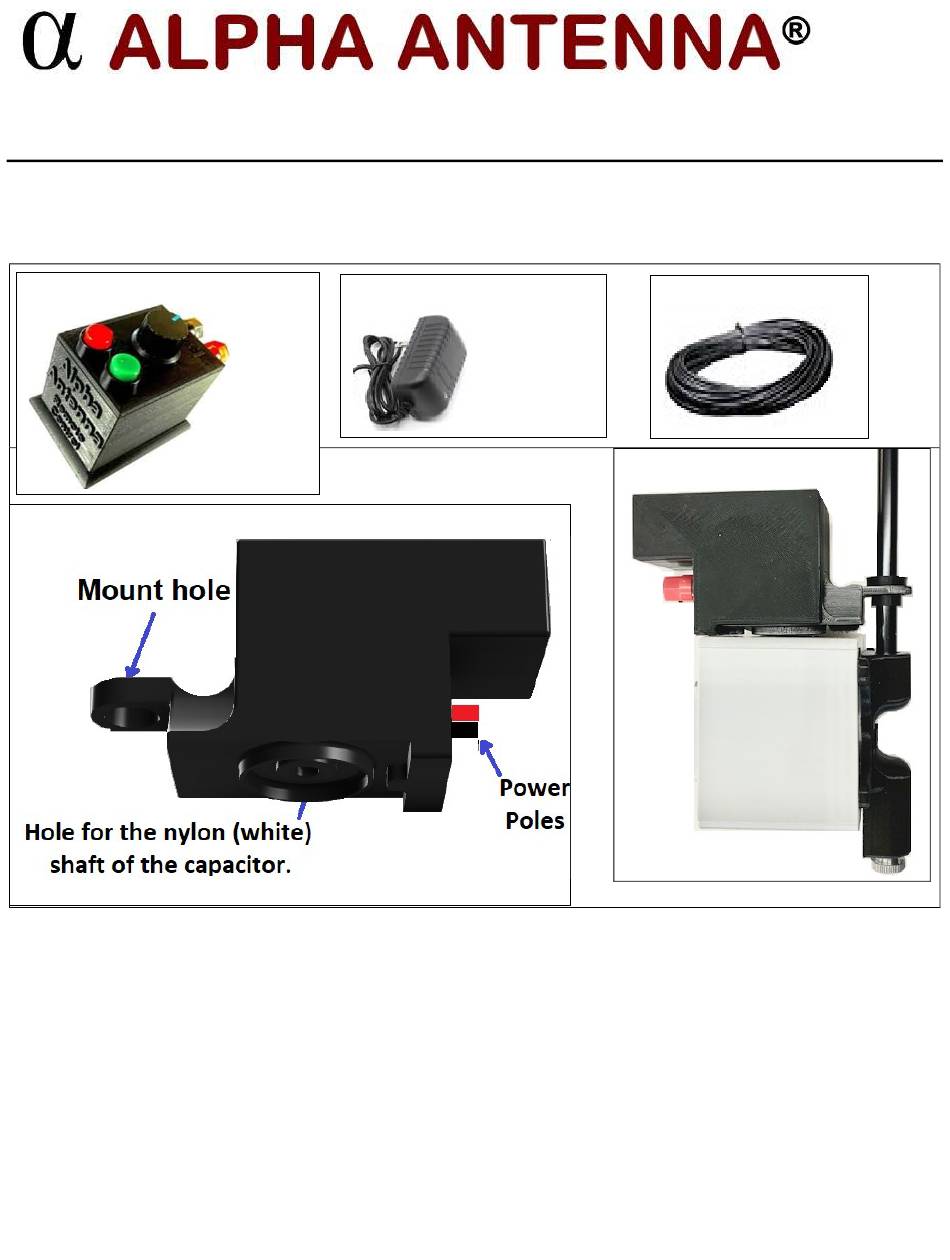

The Remote Alpha Loop Kit enables Alpha Loop Antenna systems to be fit with a remote tuning option. Not for
permanent outdoor use. Please ensure that you have received the following parts: A. Remote, B. Power
Supply, C. Cable, & D. Mount.
A.
Remote
D.
Mount
Support Contacts
If you have questions about your antenna, please feel free to email us at alphaantenna@gmail.com
Operation
-
The knob on the Remote (A) controls the speed of the Motor (e.g. tuning).
-
The buttons on the Remote (A) are pressed to tune the Alpha Loop frequency up or down.
-
It takes about 90 seconds for the tuner to cycle through the entire tuning range.
Remote Alpha Loop Kit 2.1
B.
Power Supply
C.
Cable
E.
Mount installed on post-2022 Loop box
Page 1
Advertisement
Table of Contents
Related Manuals for Alpha Antenna Remote Alpha Loop Kit 2.1
Summary of Contents for Alpha Antenna Remote Alpha Loop Kit 2.1
- Page 1 Remote Alpha Loop Kit 2.1 The Remote Alpha Loop Kit enables Alpha Loop Antenna systems to be fit with a remote tuning option. Not for permanent outdoor use. Please ensure that you have received the following parts: A. Remote, B. Power Supply, C.
- Page 2 Installation Overview Image E shows the Mount (D) installed on the post-2022 Loop tuning box. The mount is installed on the bottom of pre-2022 Loop tuning box. Post-2022 Installation 1) Remove the 4 screws from the X-Wing support on the back of the Loop’s tuning box. Rotate the X-Wing 180 degrees and re-install using the same 4 screws.
