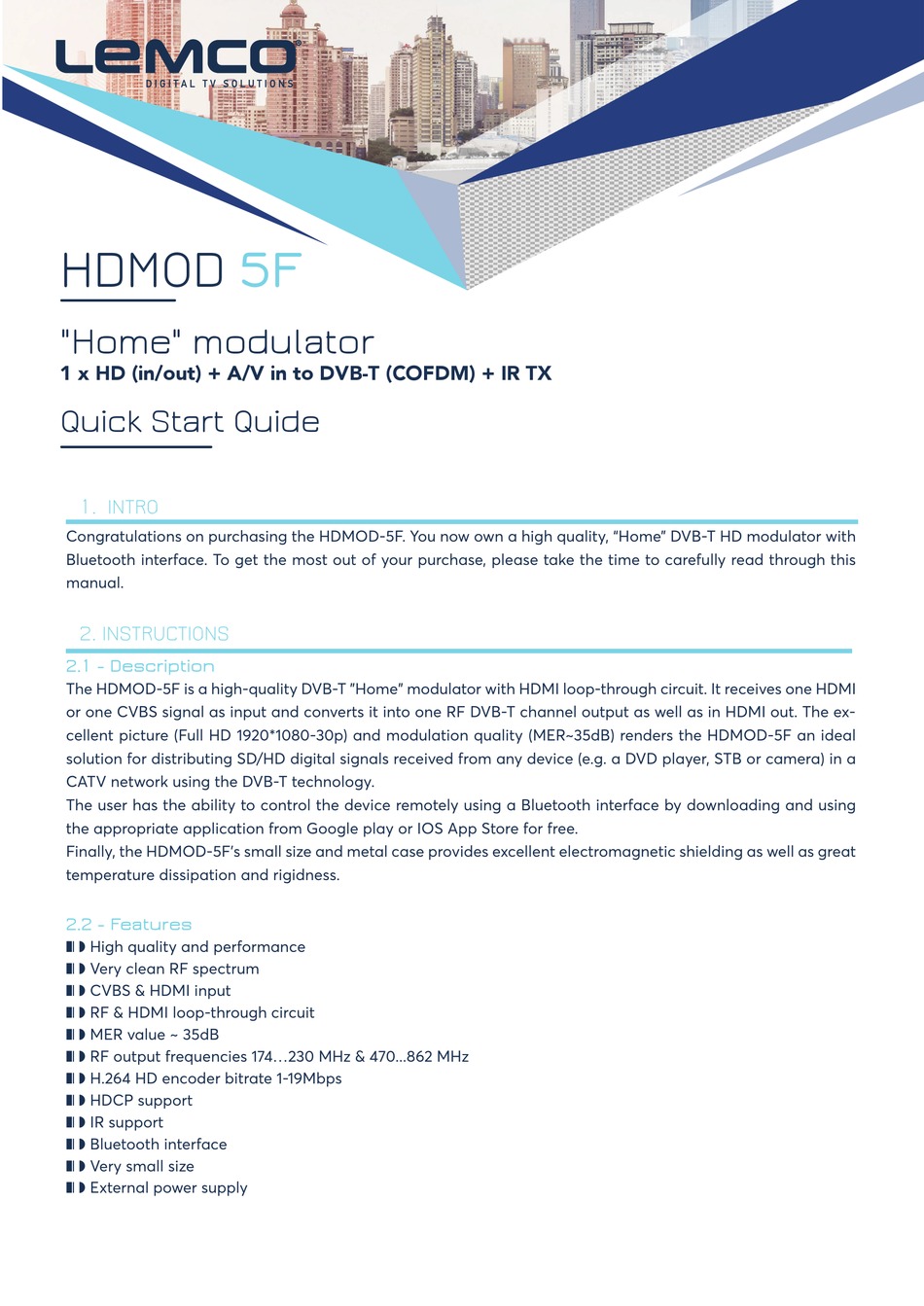

Lemco HDMOD 5F Quick Start Manual

HDMOD
"Home" modulator
1 x HD (in/out) + A/V in to DVB-T (COFDM) + IR TX ( / )
Quick Start Quide

1. INTRO

Congratulations on purchasing the HDMOD-5F. You now own a high quality, "Home" DVB-T HD modulator with
Bluetooth interface. To get the most out of your purchase, please take the time to carefully read through this
manual.

2. INSTRUCTIONS

2.1 - Description

The HDMOD-5F is a high-quality DVB-T "Home" modulator with HDMI loop-through circuit. It receives one HDMI
or one CVBS signal as input and converts it into one RF DVB-T channel output as well as in HDMI out. The ex-
cellent picture (Full HD 1920*1080-30p) and modulation quality (MER~35dB) renders the HDMOD-5F an ideal
solution for distributing SD/HD digital signals received from any device (e.g. a DVD player, STB or camera) in a
CATV network using the DVB-T technology.
The user has the ability to control the device remotely using a Bluetooth interface by downloading and using
the appropriate application from Google play or IOS App Store for free.
Finally, the HDMOD-5F's small size and metal case provides excellent electromagnetic shielding as well as great
temperature dissipation and rigidness.

2.2 - Features

zx w High quality and performance
zx w Very clean RF spectrum
zx w CVBS & HDMI input
zx w RF & HDMI loop-through circuit
zx w MER value ~ 35dB
zx w RF output frequencies 174...230 MHz & 470...862 MHz
zx w H.264 HD encoder bitrate 1-19Mbps
zx w HDCP support
zx w IR support
zx w Bluetooth interface
zx w Very small size
zx w External power supply
