Caution: You must read this before you proceed

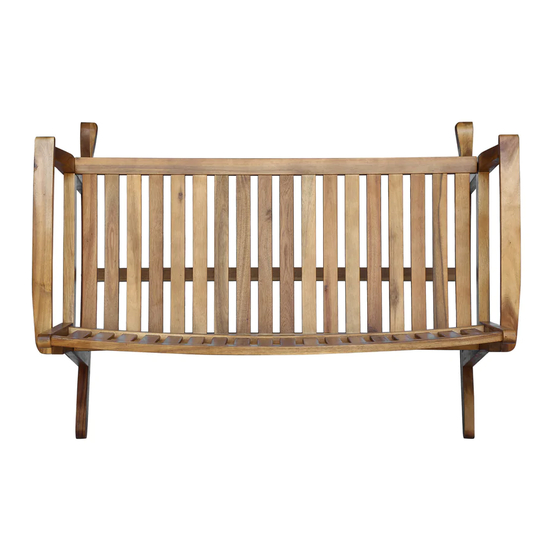

ROCKING LOVESEAT
Caution: This Rocking Loveseat is NOT a TOY.
Keep your child / children at bay in the process of assembly.
For turning the Rocking Loveseat and to prevent damage to the Rocking Loveseat,
02 persons may be needed to execute this action.
Assembly Instructions
Noble House Home Furnishings LLC
Page 1 of 9
Advertisement
Related Manuals for Noble House Home Furnishings ROCKING LOVESEAT
Summary of Contents for Noble House Home Furnishings ROCKING LOVESEAT
- Page 1 Caution: This Rocking Loveseat is NOT a TOY. Keep your child / children at bay in the process of assembly. For turning the Rocking Loveseat and to prevent damage to the Rocking Loveseat, 02 persons may be needed to execute this action.
-
Page 2: Parts List
Parts List Label Picture Description Backrest Panel Seat Panel Left Leg Panel Right Leg Panel Leg Support Bar Hardware Label Picture Description Screw ① (M6*80mm) Screw ② (M6*65mm) ③ Allen Key Noble House Home Furnishings LLC Page 2 of 9... -
Page 3: Assembly Preparation
Assembly Preparation Before Beginning Assembly: Noble House Home Furnishings LLC Page 3 of 9... -
Page 4: Assembly Steps
This Rocking Loveseat has multiple parts and may require up to 30 minutes to assemble. To give you an overview of the Rocking Loveseat parts, the above picture is to help you put the various parts into perspective. Please read through the instructions below to familiarise yourself with the parts and steps before assembly. - Page 5 Align the tenon of Seat Panel (B) into the Mortise of Right Leg Panel (D) as shown above. Then, affix the Seat Panel (B) with Right Leg Panel (D) by using Screws (①) and Allen Key (③). DO NOT FULLY TIGHTHEN SCREWS. Noble House Home Furnishings LLC Page 5 of 9...
- Page 6 Align the tenon of Seat Panel (B) into the Mortise of Left Leg Panel (C) as shown above. Then, affix the Seat Panel (B) with Left Leg Panel (C) by using Screws (①) and Allen Key (③). Do not fully tighten the Screws. Noble House Home Furnishings LLC Page 6 of 9...
- Page 7 With the help from your partner, turn the finished part in step 5 right side up. Attach Backrest Panel (A) to Right Leg Panel (D) and Left Leg Panel (C), secure by using Screw (②) and Allen Key (③) Do not fully tighten Screws. Noble House Home Furnishings LLC Page 7 of 9...
- Page 8 This would help to align all the parts at all the joint areas. Then get off the Rocking Loveseat and in a sequential manner, proceed to tighten all Screws. Whenever moving or lifting the Rocking Loveseat be sure to secure assistance from your adult partner(s).
- Page 9 Noble House Home Furnishings LLC Page 9 of 9...
