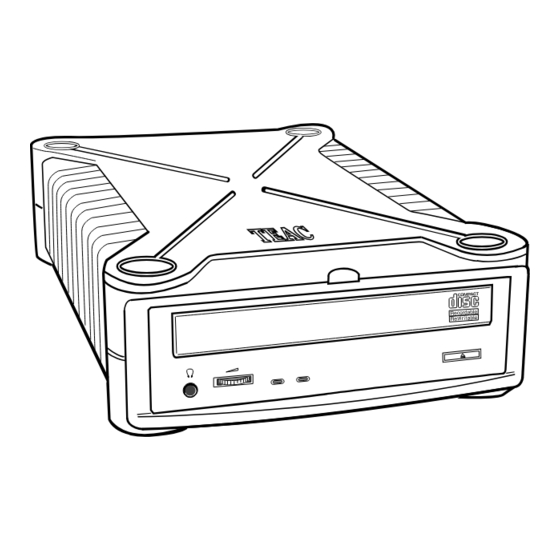

FireWire (IEEE 1394)
CD-RW Drive
User's Manual
CD-RW5120i
12X10X32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-RW5120I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teac CD-RW5120I

Summary of Contents for Teac CD-RW5120I

  • Page 1 All manuals and user guides at all-guides.com FireWire (IEEE 1394) CD-RW Drive User’s Manual CD-RW5120i 12X10X32...
  • Page 2 All manuals and user guides at all-guides.com...

  • Page 3: Safety Precautions

    Interference Problems. It is available from the U.S. Government Printing Office, Washington, D.C. 20402, stock number 004-000-00345-4. The user is cautioned that any changes or modifications not expressly approved by TEAC America, Inc. could void the user’s warranty. TEAC FireWire CD-RW Drive User’s Manual...

  • Page 4: Copyright And Trademark Information

    TEAC America, Inc. Registration Information There is no need to register any portion of this kit. TEAC provides 100% support for the drive and the Adaptec software. Refer to “Appendix C. Technical Support” on page 42 if you wish to contact TEAC.

  • Page 5: Table Of Contents

    Creating an Image File ......... . 24 TEAC FireWire CD-RW Drive User’s Manual...
  • Page 6 Appendix C. Technical Support ........42 TEAC FireWire CD-RW User’s Manual...

  • Page 7: List Of Figures

    Figure 31. Ejecting the Disc Tray ........40 TEAC FireWire CD-RW Drive User’s Manual...
  • Page 8 All manuals and user guides at all-guides.com TEAC FireWire CD-RW Drive User’s Manual...

  • Page 9: Chapter 1. Introduction

    Thank you for purchasing a TEAC FireWire CD-RW Drive kit. The TEAC FireWire CD-RW Drive can write to CD-R media at up to12X speed, write to CD-RW media at up to 10X speed, and read at a maximum of 32X speed (It is also capable of operating at slower speeds, if preferred.)

  • Page 10: For Macintosh Systems

    800MB available hard disk space for CD image creation CD-ROM drive (DAE support for CD to CD copy) FireWire CD-RW Package Contents The TEAC FireWire CD-RW Drive kit includes the following items (see Figure 1 on page 3). TEAC FireWire CD-Rewritable (CD-RW) External Drive...

  • Page 11: Figure 1. Firewire Cd-Rw Drive Kit Package Contents

    AC power cable and transformer Figure 1. FireWire CD-RW Drive Kit Package Contents Note: If any of the items above is missing from your kit upon purchase, please contact your vendor immediately for replacement. TEAC FireWire CD-RW Drive User’s Manual...

  • Page 12: Front Panel

    The volume control adjusts the volume. Turn the control to the right to increase the volume, left to decrease. (Lower the volume before you start a CD-ROM audio program to protect your hearing and the audio speakers.) TEAC FireWire CD-RW User’s Manual...
  • Page 13 Eject button and relies on software commands to eject the disc. Refer to Help for more information.) DirectCD Power-on LED: This LED is lit when the power to the drive is on, and unlit when power is switched off. TEAC FireWire CD-RW Drive User’s Manual...

  • Page 14: Rear Panel

    2. Connecting the FireWire CD-RW Drive” on page 7.) Caution: To ensure proper operation, use only the original AC power cable that came with your TEAC FireWire CD-RW drive. power on/off switch: This switch turns the power to the FireWire drive on or off.

  • Page 15: Chapter 2. Connecting The Firewire Cd-Rw Drive

    All manuals and user guides at all-guides.com Chapter 2. Connecting the FireWire CD-RW Drive This chapter explains how to connect the TEAC FireWire CD-RW drive to an IBM PC compatible or Apple Macintosh computer. It also explains how to install the appropriate software driver.

  • Page 16: Figure 4. Connecting The Power Cable And Power Adapter Block

    9. Connect the other end of the FireWire interface cable to a FireWire port on your computer. Note: If you are connecting the cable to a FireWire hub, use a FireWire hub that features an AC Power adapter. TEAC FireWire CD-RW Drive User’s Manual...

  • Page 17: Figure 5. Connecting The Power And Firewire Cables To The Cd-Rw Drive

    5. Connect FireWire cable to drive. 6. Connect FireWire cable to computer. FireWire interface FireWire cable AC power input connector AC power cable Figure 5. Connecting the Power Cable and FireWire Cable to the CD-RW Drive TEAC FireWire CD-RW Drive User’s Manual...

  • Page 18: Connecting To Audio Equipment

    Figure 6. Unplug Icon All Users: Before you disconnect the cable from the computer's FireWire port, remove any inserted discs from the TEAC FireWire CD-RW drive. Do not connect the FireWire drive while the computer is in sleep or suspend mode, or while the CD-RW drive is transferring data.

  • Page 19: How To Proceed With This Installation

    If you are using Windows 98SE, use the Update Module CD-ROM disc included with your kit to upgrade update the FireWire drivers. 1. Insert the TEAC 1394 Update Module CD-ROM disc into your com- puter’s CD-ROM drive. 2. Click the Start button and select Run.

  • Page 20: High Speed Recording Guidelines (Enabling Dma)

    3. Click IDE/ATA/ATAPI Controllers 4. Click Secondary Controller Properties 5. Click Advanced Settings See Figure 7. 6. Click and select “ .” Current Transfer Mode DMA if available Figure 7. Secondary IDE Channel Properties Panel TEAC FireWire CD-RW Drive User’s Manual...

  • Page 21: Windows 98Se And Windows Me

    Figure 8. Properties Panel Windows Drive Detection Windows 98SE, Me, and 2000 Professional will detect the TEAC CD-RW FireWire drive as a typical CD-ROM drive. For the drive to be recognized accordingly as a CD-RW drive, you must now install the Adaptec premastering software.
  • Page 22 All manuals and user guides at all-guides.com Windows 98SE and Windows ME TEAC FireWire CD-RW Drive User’s Manual...

  • Page 23: Chapter 3. Installing Software On Windows Systems

    All manuals and user guides at all-guides.com Chapter 3. Installing Software on Windows Systems Please make sure that the TEAC FireWire CD-RW drive is properly installed as per the instructions in Chapter 2, beginning on page 7. Before you can record data onto CD-R or CD-RW discs using your TEAC FireWire CD-RW Drive, you must first install Adaptec Pre-Mastering software onto your computer’s hard disk.

  • Page 24: Installing Easy Cd Creator And Directcd Software

    DirectCD computer’s hard disk. The installation procedure for each application is nearly identical. 1. Insert the TEAC CD-RW software suite for Windows CD-ROM into your computer’s CD-ROM drive or into the TEAC FireWire CD-RW drive. If the Autoplay function is enabled, the main installation panel (Figure 10) should appear on your desktop.

  • Page 25: Figure 10. Adaptec Easy Cd Creator/Directcd Main Installation Panel

    DirectCD to install the software and displays the following panel: Figure 11. InstallShield Setup Panel The system then displays a panel (Figure 12 on page 18) specific to Welcome the application you are installing: TEAC FireWire CD-RW Drive User’s Manual...

  • Page 26: Figure 12. Welcome Panel

    Figure 12. Welcome Panel Note: When installing , the system will display a message about DirectCD CD-R/CD-RW support (see Figure 13). The TEAC CD-RW supports “packet writing.” Therefore, click the button to install DirectCD Figure 13. DirectCD Installation Support Warning 4.

  • Page 27: Figure 15. Choose Destination Location Panel

    (Figure 16): Setup Complete Figure 16. Setup Complete Panel Click the button to conclude the setup. Finish The system again displays the main installation panel (Figure 17 on page 20). TEAC FireWire CD-RW Drive User’s Manual...

  • Page 28: Figure 17. Main Installation Panel

    The system displays the following panel (Figure 18): Setup Complete Figure 18. Reboot System Request Panel 9. Click the button to restart your system. Finish Once the system reboots, the application(s) you installed will be ready for use. TEAC FireWire CD-RW Drive User’s Manual...

  • Page 29: About The Reference Guides, Readme Files, And Help Files

    Start-->Programs-->Adaptec DirectCD -->DirectCD Help About Online Registration There is no need to register any portion of this kit. TEAC provides 100% support for the drive and the Adaptec software. Refer to “Appendix C. Technical Support” on page 42 if you wish to contact TEAC.

  • Page 30: Starting Easy Cd Creator

    , refer to the Easy CD Creator Quick Reference Guide PDF format on the CD-ROM or to the file (for more information, see ReadMe “About the Reference Guides, ReadMe Files, and Help Files” on page 21). TEAC FireWire CD-RW Drive User’s Manual...

  • Page 31: Cd Copier

    This section explains how to use the CD Copier software. Copying (Duplicating) Discs Using CD Copier A note from TEAC and Adaptec: Easy CD Creator is designed to assist you in reproducing material for which you own the copyright or for which have obtained permission to copy from the copyright owner.

  • Page 32: Using Your Cd-Rw Drive As Source And Target

    2. Insert a blank CD into the drive you want to use as source. 3. Click the small arrow next to the button on the toolbar. 4. Select the type of disc you want to create from the drop-down list (audio, data, etc.). TEAC FireWire CD-RW Drive User’s Manual...

  • Page 33: Creating A Cd From The Cd Image File

    Create CD CD Creation Setup sary. The program prompts you to remove disc 1 and insert disc 2 to continue recording. 10. Follow the instructions to record the remainder of your disc. TEAC FireWire CD-RW Drive User’s Manual...

  • Page 34: Extracting Audio Tracks To Wave Files

    Select the audio file (hold down the Ctrl or Shift key to select multiple files) in the section, then click the button on the tool bar. Source + Add The system adds the file to the music CD layout. TEAC FireWire CD-RW Drive User’s Manual...
  • Page 35 CD Creation Setup 6. (Optional) Click the Advanced button to view audio recording options. 7. (Optional) Click the button to view detailed option explanations. Help 8. Click to start the recording session. TEAC FireWire CD-RW Drive User’s Manual...

  • Page 36: Starting Directcd

    Checking the status of a disc in the CD-RW drive Preparing a CD-R or CD-RW disc for reading or writing Managing the final data when ejecting a DirectCD disc Figure 20. DirectCD Wizard Panel TEAC FireWire CD-RW Drive User’s Manual...

  • Page 37: Using Directcd

    7. Click Finish The system begins to format the disc. It displays the DirectCD Disc Ready window when disc formatting is complete. 8. Click disc is ready for writing. DirectCD TEAC FireWire CD-RW Drive User’s Manual...

  • Page 38: Ejecting A Directcd Disc (Iso 9660 Closed Session Format)

    ISO 9660 format, the disc is DirectCD ejected from the drive and, if the notification option is Display Disc Ejected selected in the , the system displays the DirectCD Wizard Options Disc Ejected message box. TEAC FireWire CD-RW Drive User’s Manual...

  • Page 39: Writing Additional Data To A Directcd Disc

    Start-->Programs-->Adaptec DirectCD-->Uninstall DirectCD The system displays the window. Use the Control Panels Add/Remove Programs utility. For additional information, refer to your Windows documentation. You can uninstall both programs from the object in Add/Remove Program Control Panel TEAC FireWire CD-RW Drive User’s Manual...
  • Page 40 All manuals and user guides at all-guides.com Writing Additional Data to a DirectCD Disc TEAC FireWire CD-RW Drive User’s Manual...

  • Page 41: Chapter 4. Installing Software On Macintosh Systems

    Please make sure that the TEAC FireWire CD-RW drive is properly installed as per the instructions in Chapter 2, beginning on page 7. Before you can record data onto CD-R or CD-RW discs using your TEAC CD- RW Drive, you must first install TEAC/Adaptec Toast Software for Macintosh onto your Macintosh computer’s hard disk.

  • Page 42: Installing Toast Software

    Follow the steps below to install software on your Macintosh computer’s Toast hard disk. 1. Insert the TEAC/Adaptec Toast Software for Macintosh CD-ROM into your computer’s CD-ROM drive. After the system loads the disc, it displays the icon on Adaptec Toast 4.1.2 the Macintosh desktop (Figure 21).

  • Page 43: Figure 23. Continuation Panel

    (Deutsch) version. The system then displays a license agreement. 5. Please read the License Agreement, and if you agree to its terms, click button. Accept The system displays a panel (Figure 24). Read Me/Registration Figure 24. Read Me/Registration Panel TEAC FireWire CD-RW Drive User’s Manual...

  • Page 44: Figure 25. Toast 4.1.2 Installer Panel

    (Figure 26): Figure 26. Installing Panel If the installation is successful, the system then displays an Installation panel (Figure 27). successful Figure 27. Installation Successful Panel 10. Click the button to conclude the installation. Quit TEAC FireWire CD-RW Drive User’s Manual...

  • Page 45: Starting Toast

    The system loads the Toast software and displays the main panel (Figure 29). Figure 29. Toast Main Panel For information on using , refer to the user’s guide in the Toast file in the folder. documentation.pdf Toast 4.1.2 TEAC FireWire CD-RW Drive User’s Manual...
  • Page 46 All manuals and user guides at all-guides.com Starting Toast TEAC FireWire CD-RW Drive User’s Manual...

  • Page 47: Appendix A. About Cd-R And Cd-Rw Discs

    Figure 30. How to Handle Compact Discs (CD-R and CD-RW) Recommended Media One blank TEAC CD-R disc and one blank CD-RW rewritable disc are included in the package with your CD-RW. For optimal performance, make sure to use 74 or 80-minute CD-R media rated for 12X speed recording.

  • Page 48: Disc Formats

    All manuals and user guides at all-guides.com Disc Formats The TEAC FireWire CD-RW drive supports the following disc formats: Disc Format Data Capacity CD-DA 74 or 80 minutes CD-ROM Mode 1 650MB or 700MB CD-ROM XA Mode 2 (Form 1)

  • Page 49: Appendix B. Specifications

    All manuals and user guides at all-guides.com Appendix B. Specifications The following table lists the product specifications for TEAC FireWire CD-RW drive. Model CD-RW5120i Interface FireWire/IEEE 1394 Transfer Rate Read: 32X maximum (4800KBps) Write to CD-R: 12X (1800KBps) Write or Rewrite to CD-RW: 10X speed (1,500KBps)

  • Page 50: Appendix C. Technical Support

    All manuals and user guides at all-guides.com Appendix C. Technical Support For technical support, please contact the TEAC Service and Support Center: North America TEAC America, Inc. (USA) Technical Support Telephone: (323) 727-4860 • Fax: (323) 869-8751 Monday - Friday 8:00 a.m. - 5:00 pm http://www.teac.com/dspd...
  • Page 51 All manuals and user guides at all-guides.com...
  • Page 52 All manuals and user guides at all-guides.com TEAC America, Inc. 7733 Telegraph Road Montebello, CA 90640 Telephone: (323) 727-4860 • Fax: (323) 869-8751...
