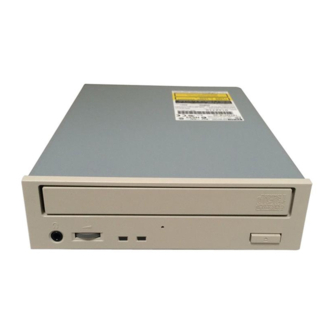

CD-Rewritable Drive
12x10x32
disc tray
headphone jack
Introduction
The TEAC CD-RW drive can write to CD-R discs at a maximum of 12X speed, re-
write to CD-RW discs at 10X speed, and read CD-ROM discs at 32X speed. (It is also
capable of operating at slower speeds, if preferred.) CD-R discs enable you to create
audio or data discs for permanent archival storage. They cannot be overwritten. You
can overwrite CD-Rewritable (CD-RW) discs, typically up to 1,000 times.
The TEAC CD-RW drive is a SCSI device designed for use in IBM PC or compatible
computers that feature a SCSI adapter card. The drive features a 5.25-inch standard
chassis and a powered tray for convenient disc loading.
Recommended System Requirements
IBM PC-compatible computer, Pentium 300MHz or higher
PCI SCSI host adapter card (see "Recommended Adapters" on page 8)
CD-ROM drive with DAE support for disc-to-disc audio recording
One available 5.25 inch drive bay
64MB of RAM
A hard drive that meets or exceeds the following minimum specifications:
1GB hard disk space (or more)
1.2MB/second data transfer rate (or faster)
12ms average access time (or less)
Sufficient hard disk space for software installation (see the documentation for
the recording software)
Windows 95/98/Me/2000-Professional and NT
Recording software (see "Recommended Software" on page 8)
TEAC CD-RW Installation Guide
LED status indicators
volume control
SCSI Interface
1
Introduction
®
CD-W512S
eject button
emergency eject
mechanism opening
Advertisement
Table of Contents
Related Manuals for Teac CD-W512S
Summary of Contents for Teac CD-W512S

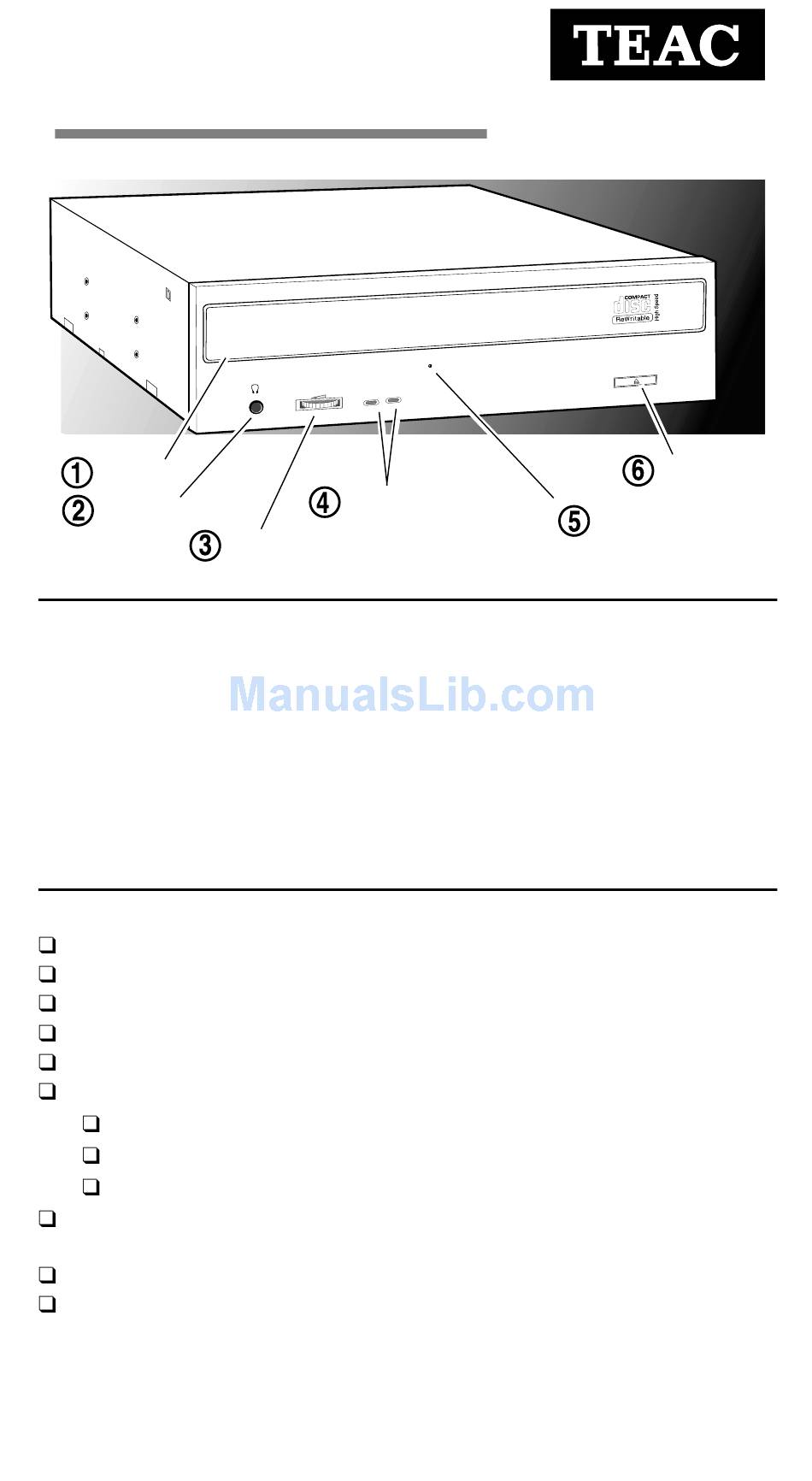

- Page 1 Introduction The TEAC CD-RW drive can write to CD-R discs at a maximum of 12X speed, re- write to CD-RW discs at 10X speed, and read CD-ROM discs at 32X speed. (It is also capable of operating at slower speeds, if preferred.) CD-R discs enable you to create audio or data discs for permanent archival storage.
-
Page 2: Front Panel
You can connect headphones or external speakers to this jack to listen to an audio CD being played on your TEAC drive. Use a 3.5 mm stereo mini-plug. For external speakers, connect a stereo adapter to split the output into separate cables for the left and right channels. - Page 3 The +5VDC terminal is on the left as you face the rear panel; the +12VDC terminal is on the right. The two center terminals are ground terminals. FG: Frame ground. This is a ground connection for the CD-RW Drive. TEAC CD-RW Installation Guide...
-
Page 4: Configuring The Cd-Rw Drive
Setting the SCSI ID Number Configuring the CD-RW Drive Before you can install and operate the TEAC CD-W512S CD-RW drive, you need to do the following: Install a SCSI adapter card in the host computer. For optimum performance, a PCI bus master SCSI adapter card (such as an Adaptec 2940 or equivalent) is recommended. - Page 5 After you install a SCSI adapter card in your computer and configure the jumper pin block on the CD-RW drive, follow the steps below to install the TEAC CD-RW drive into your computer. Refer to your computer documentation for information specific to your system.
- Page 6 CD-RW drive and connect the opposite end to your sound card. Connect audio connector pin 1 on the CD-RW drive to pin 1 on the sound card. audio cable notch power cable pin 1 50-pin interface ribbon cable TEAC CD-RW Installation Guide...
- Page 7 Re-install your computer’s cover, faceplate, or bay cover. Start your system. Notes: The TEAC CD-RW drive is a true Plug-N-Play device; therefore, it will be detected automatically by Windows 95/98/Me/2000-Professional. There is no need to install any drivers. Windows NT 4.0 does not support the Plug-N-Play feature. Therefore, confirm that the proper drivers are installed for your SCSI adapter card.
- Page 8 Recommended Software Before you can record data onto CD-R or CD-RW discs using your TEAC CD-RW drive, you must first install pre-mastering or packet-writing software onto your computer’s hard disk. TEAC recommends the following applications for Windows 95/98/Me/2000-Professional and NT: Adaptec Easy CD Creator, Version 4.02e or higher: A full-featured...
-
Page 9: Specifications
Operating Temperature 5° C to 40° C (41° F to 104° F) Storage Temperature -30° C to 60° C (-22° F to 140° F) Operating Humidity 20% to 80% (non-condensing) Storage Humidity 10% to 80% (non-condensing) Safety Standards UL, CSA, TUV TEAC CD-RW Installation Guide... -
Page 10: Technical Support
Specifications Technical Support TEAC America, Inc. (USA) Technical Support Telephone: (323) 727-4860 • Fax: (323) 869-8751 Monday - Friday 8:00 a.m. - 5:00 pm http://www.teac.com/dsp/new-dsp.html E-mail: dspdtsg@teac.com TEAC CD-RW Installation Guide...
