- Page 1 CD-W552E CD-RW Drive User’s Manual 52x24x52 Internal IDE Drive...
-
Page 3: Safety Precautions
Interference Problems. It is available from the U.S. Government Printing Office, Washington, D.C. 20402, stock number 004-000-00345-4. The user is cautioned that any changes or modifications not expressly approved by TEAC America, Inc. could void the user’s warranty. TEAC CD-RW Drive User’s Manual... -
Page 4: Copyright And Trademark Information
Appendix C. Technical Support: This appendix provides technical support information for TEAC America, Inc. Product Warranty Information This TEAC CD-RW drive features a one year warranty from the date of purchase. Please keep your receipt as proof of purchase. TEAC CD-RW Drive User’s Manual... -
Page 5: Table Of Contents
Appendix C. Technical Support ........29 TEAC CD-RW Drive User’s Manual... - Page 6 Figure 25. Ejecting the Disc Tray ......... . 27 TEAC CD-RW Drive User’s Manual...
-
Page 7: Chapter 1. Introduction

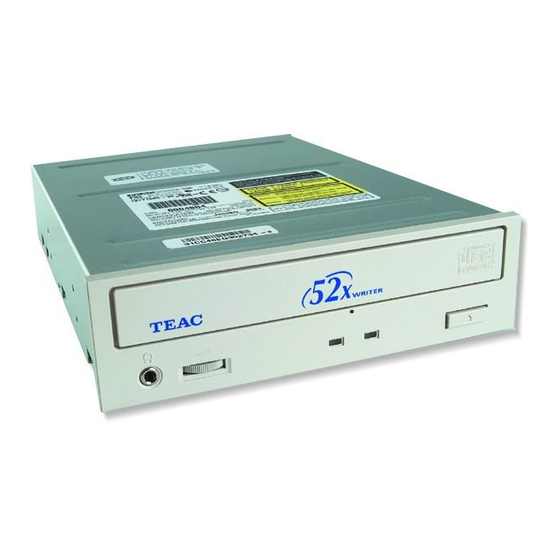

Chapter 1. Introduction Thank you for purchasing a TEAC CD-RW drive kit. The TEAC CD-RW drive can write to CD-R discs at speeds of 4X, 8X, 12X, 16X, 20X, 24X, 32X, 40X, 48X or 52X maximum, and rewrite to CD-RW discs at speeds of 2X, 4X, 8X, 10X, 12X, 16X or 24X maximum. -
Page 8: Cd-Rw Package Contents
❑ One blank CD-RW disc ❑ Interface cable (ribbon cable) ❑ Audio cable (to connect internally to your PC) ❑ Mounting screws (not shown) ❑ TEAC CD-Rewritable (CD-RW) Drive User’s Manual (this booklet) TEAC CD-RW drive recording software and blank discs user’s manual... -
Page 9: Front Panel
Please press the Eject button to eject or retract the tray. headphone jack: You can connect headphones or external speakers to this jack to listen to an audio CD being played on your TEAC drive. Use a 3.5mm stereo mini-plug. For external speakers, connect a stereo adapter to split the output into separate cables for the left and right channels. - Page 10 Press this button to open or close the disc tray. (Some CD-ROM titles disable the manual eject button and rely on software commands to eject the disc. Refer to the documentation for these titles for more information.) TEAC CD-RW User’s Manual...
-
Page 11: Rear Panel
The +5VDC terminal is on the left as you face the rear panel; the +12VDC terminal is on the right. The two center terminals are ground terminals. (For more information, see “Installing the CD-RW Drive” on page 8 and Figure 7 on page 9). TEAC CD-RW Drive User’s Manual... - Page 12 Rear Panel TEAC CD-RW User’s Manual...
-
Page 13: Chapter 2. Configuring And Installing The Cd-Rw Drive
Configuring the CD-RW Drive Chapter 2. Configuring and Installing the CD-RW Drive This chapter explains how to configure and install the TEAC CD-RW drive in your computer. Configuring the CD-RW Drive The CD-RW drive features three pairs of jumper pins on the rear panel. By placing the jumper on the appropriate pair of pins, you can set the drive to Master, Slave, or CSEL mode (see Figures 4 and 5). -
Page 14: Installing The Cd-Rw Drive
Installing the CD-RW Drive Installing the CD-RW Drive Note: TEAC recommends that you connect the CD-RW to the secondary IDE port. Do not connect the drive in a “daisy-chain” to the hard disk drive. Turn off the power to the computer system and any external devices connected to it. -
Page 15: Figure 6. Installing The Cd-Rw Drive In A Computer
Figure 6. Installing the CD-RW Drive in a Computer 4c) Locate the secondary IDE connector on your system’s motherboard and connect one end of the IDE interface cable provided with your TEAC kit. Be certain to connect Pin-1 of the interface cable to Pin-1 on the secondary IDE connector on the motherboard. - Page 16 CD-ROM/DVD drive. 5a) Set the jumper on the rear panel of the CD-RW drive to Slave. Note: If your original drive is configured as CSEL, configure the TEAC drive as CSEL also. System software will configure the drives accordingly.
-
Page 17: High Speed Recording Guidelines
1. Right-click and select My Computer Properties 2. Click and select Hardware Device Manager 3. Click , double-click IDE/ATA/ATAPI Controllers Secondary IDE Channel and select Advanced Settings 4. Click and select Transfer Mode DMA if available TEAC CD-RW Drive User’s Manual... -
Page 18: Windows 98Se And Windows Me
Figure 10. Checking the DMA Box 4. Check the box, then click 5. Repeat Step 4 for your hard disk drive in the section. Disk Drives 6. Close the windows and restart your system. System Properties TEAC CD-RW Drive User’s Manual... -
Page 19: Windows Nt 4.0 Workstation
Once you confirm that you can read (play) data discs from the CD- RW drive, install the Roxio software to enable recording to CD-R and CD- RW discs. (For more information, see Chapter 3, beginning on page 15.) TEAC CD-RW Drive User’s Manual... -
Page 20: Connecting To Audio Equipment
In this case, connect the headphones to the speaker. powered speakers Connect speakers to sound card 3.5mm stereo mini-plug Or connect speakers or headphones to front jack of the CD-RW Drive Figure 11. Connecting Analog Audio Speakers or Headphones TEAC CD-RW Drive User’s Manual... -
Page 21: Chapter 3. Installing And Launching Easy Cd Creator 5.3X Basic On Windows Systems
“Chapter 2. Configuring and Installing the CD-RW Drive” beginning on page 7. To record data or audio onto CD-R or CD-RW discs using your TEAC CD-RW drive, you need to use pre-mastering software, such as Easy CD Creator 5.3x... -
Page 22: Installing Easy Cd Creator 5.3X Basic Software
Easy CD Creator 5.3x Basic computer’s hard disk. Insert the Easy CD Creator 5.3x CD-ROM into your computer’s CD- ROM drive or into the TEAC CD-RW drive. If the Autoplay function is enabled, the system displays the auto detect screen (Figure 13). Click to continue. -
Page 23: Figure 14. Choose Setup Language Panel
2. Select a language and click the button. The system displays the following panel. installShield Wizard Welcome Figure 15. InstallShield Wizard Welcome Panel 3. Click the button. Next The system displays the following panel: Figure 16. Setup Type Panel TEAC CD-RW Drive User’s Manual... -
Page 24: Figure 17. Ready To Install Panel
The system begins the installation and displays a progress bar (Figure 18). Figure 18. Installing Status Panel If you wish to abort the installation, click the button any time. When Cancel installation is complete, the system displays the following panel (Figure 19 on page 19): TEAC CD-RW Drive User’s Manual... -
Page 25: Online Registration
Easy CD Creator 5.3x Basic Online Registration There is no need to register any portion of this kit. TEAC provides 100% support for the drive and the Roxio software. If a panel appears Registration Reminder... -
Page 26: Starting Easy Cd Creator 5.3X Basic
Note: For a detailed description of how to use Easy CD Creator 5.3x, please refer to the Quick Start Guide in PDF format on the software CD-ROM in the following disc directory: Help_pdf\Enu\QuickRef.pdf Refer to Figure 21 on page 21. TEAC CD-RW Drive User’s Manual... -
Page 27: Figure 21. Easy Cd Creator Select A Project Panel
“make a data cd” function. Legend Easy CD Creator 5.3x Basic With an additional CD-ROM drive, you can duplicate discs. Easy CD Creator 5.3x Platinum Figure 21. Easy CD Creator Select a Project Panel TEAC CD-RW Drive User’s Manual... -
Page 28: About The Help Files (Help Button)
The system displays the panel. Help Topics Click a topic in the left column of the Help Topics panel to expand the topic list. Click an item to display detailed information in the right col- umn. TEAC CD-RW Drive User’s Manual... -
Page 29: Upgrading The Software ( Upgrade Button)
(Figure 23 on page 23). Figure 23. Select a Project: Web-checkup Button 2. Click the button and follow the instructions on the web web-checkup page to download the software updates. TEAC CD-RW Drive User’s Manual... - Page 30 Updating the Software (web-checkup button) TEAC CD-RW Drive User’s Manual...
-
Page 31: Appendix A. About Cd-R And Cd-Rw Discs
Do not use benzene, alcohol, thinner, or other solvents. wipe disc surface from handle discs center to outside edge by their edges Figure 24. How to Handle Compact Discs (CD-R and CD-RW) TEAC CD-RW Drive User’s Manual... -
Page 32: Recommended Media
One blank TEAC CD-R disc and one blank CD-RW rewritable disc are included in the package with your CD-RW. For optimum performance, use only 74 or 80-minute, 52X speed rated blank CD- R and high speed 4X-10X or 12X rated CD-RW media from TEAC or the following manufacturers: Disc Type... -
Page 33: Disc Formats
Disc Formats Disc Formats The TEAC CD-RW drive supports the following disc formats: Disc Format Data Capacity CD-DA 74 or 80 minutes CD-ROM Mode 1 650MB or 700MB CD-ROM XA Mode 2 (Form 1) 650MB or 700MB CD-ROM XA Mode 2 (Form 2) -
Page 34: Appendix B. Specifications
Loading and Ejecting Discs Appendix B. Specifications The following table lists the product specifications for the TEAC CD-RW drive. Model CD-W552E Interface IDE/ATAPI Transfer Rate Write: 52X maximum (7.8MBps) Rewrite: 24X maximum (3.6MBps) Read: 52X maximum (7.8MBps) Access Time 100 msec (1/3 Stroke) Audio Extraction Speed 52X maximum (7.8MBps) -
Page 35: Appendix C. Technical Support
Loading and Ejecting Discs Appendix C. Technical Support For technical support, please contact: TEAC America, Inc. (USA) Technical Support Telephone: (323) 727-4860 • Fax: (323) 869-8751 Monday - Friday 8:00 a.m. - 5:00 pm PST http://www.teac.com/DSPD E-mail: dspdtsg@teac.com TEAC CD-RW Drive User’s Manual... - Page 36 Loading and Ejecting Discs TEAC CD-RW Drive User’s Manual...
