- Page 1 ADDRESSABLE EIGHT-INPUT MODULE S2000-AR8 User’s Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Description and Operation ....................4 Product Designation ...................... 4 Specifications ........................ 5 Arrangement and Operation ................... 6 Marking and Sealing ...................... 7 Packaging ........................7 Intended Use ........................7 Operating Restrictions ....................7 Preparing for Use ......................7 2.2.1 Safety Precautions ...................... - Page 3 This user’s manual explains operating principles and rules of operation of S2000-AR8 Addressable Eight-Input Module of firmware version 1.10. Only the personnel who have studied this manual are allowed to operation activities. All activities on mounting, adjusting, commissioning, and testing shall be performed in compliance with the requirements of the regulatory documentation in force at the place of operation.
-
Page 4: Description And Operation

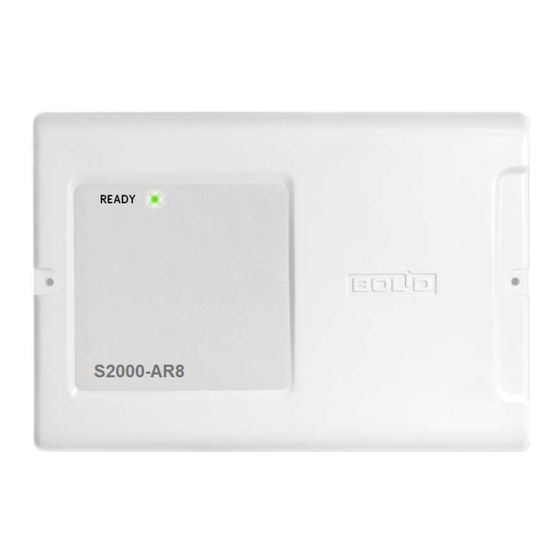

1 Description and Operation Product Designation 1.1.1 S2000-AR8 Addressable Eight-Input Module (hereinafter referred to as the module) is used with a polling loop controller such as S2000-KDL, S2000-KDL-2I, S2000-KDL-2I Rev.01, S2000- KDL-S in Orion integrated security systems. It is designed to connect non-addressable dry contact detectors into the polling loop of a polling loop controller as well as to monitor fire protection systems (voice announcement systems, smoke control systems, fire protection dampers, etc.) and... -
Page 5: Specifications
Specifications Table 1.2.1 Parameter Value 1.2.1 Power supply voltage (PL voltage), V - 8 through 11 1.2.2 Average consumed current, mA - 4.0 max 1.2.3 Start-up time, s - 15 max 1.2.4 Monitored circuits (device loops) 1.2.5 Ingress Protection Rating as per GOST 14254-2015 - IP40 Immunity to mechanical exposure 1.2.6... -
Page 6: Arrangement And Operation
1 pc. Arrangement and Operation 1.4.1 S2000-AR8 features eight monitored circuits (or supervised circuits, or device loops) each providing connection of non-addressable fire and intrusion detectors, control appliances, and auxiliary devices with dry contact outputs. Both normally closed detectors and normally open detectors are connectable. -
Page 7: Marking And Sealing
– There are no potential hazard circuits within the S2000-AR8; – Do SHUT OFF power from the S2000-AR8 before mounting, installing, and maintaining this one; – Mounting and maintenance of the S2000-AR8 shall be carried out by persons with the second or higher electric safety qualification level. -
Page 8: Design
Document РД 78.145-92 “Rules for Performance and Acceptance of Works. Fire and Intrusion Alarm Installations”. The module should be attached at a height suitable for operating and maintenance. If the S2000-AR8 is housed in unwatched premises it should be at least 2.2 m higher than the floor level. -
Page 9: Connecting The Module
S2000-AR8 provides storing addresses of the monitored circuits to communicate data over the polling loop in the non-volatile memory. The factory address of an S2000-AR8 is 120, with this address matching to the address of MC1. The addresses of the other monitored circuits are calculated based on the address of MC1 by incrementing the address of every following circuit by 1. -
Page 10: Usage
S2000-AR8 operates under a polling loop controller within an Orion ISS. To get more information about operation of the system, please refer to the documentation on the S2000M panel, Orion Pro, Sirius panel, and the polling loop controller. -
Page 11: Troubleshooting
The scheduled maintenance works include: Inspecting exterior conditions of the S2000-AR8; – Ensuring the S2000-AR8 is fastened properly and its connection wires and contact joints are in – good conditions Testing operability in line with Section 3.4 of this manual. -
Page 12: Performance Testing
Intrusion Alarm message on the address assigned to this MC of the module. Place the detector into the normal state and ensure the S2000-AR8 LED starts flashing once per four seconds. By means of the network controller issue a command to reset alarm from the detector related to the MC. While one monitored circuit is being tested the other circuits shall be in norm. -
Page 13: Storage
No. МВД РФ.03.000036, No. МВД РФ.03.000037. Production of S2000-AR8 Addressable Eight-Input Module is covered by Conformity Certificate ГОСТ Р ИСО 9001, which can be found online at https://bolid.ru in Section ABOUT.
