bolid S2000-AR2 Operation Manual

ADDRESSABLE DOUBLE-INPUT MODULE

1. DESCRIPTION AND OPERATION

1.1 Product Designation

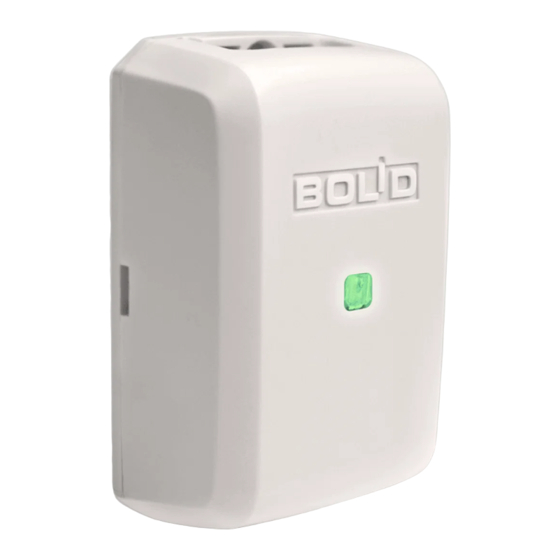

1.1.1 S2000-AR2 Rev.02 Addressable Double-Input Module (hereinafter referred to as the module) is
used with a polling loop controller such as S2000-KDL, S2000-KDL-2I, S2000-KDL-2I Rev.01, S2000-
KDL-S in Orion integrated security systems. The module is designed to connect non-addressable dry
contact detectors into the polling loop of a polling loop controller as well as to supervise fire protection
systems (voice announcement systems, smoke control systems, fire protection dampers, etc.) and other
control and auxiliary systems with dry contact outputs. The module is powered and communicates data
over the polling loop of the polling loop controller. The module supports the polling loop protocol
DPLS_v2.xx providing getting polling loop voltage values at the point where it is connected and features a
tamper switch.
1.1.2 The module is designed for round-the-clock operation.
1.1.3 The module is a reparable and regularly maintained product.
1.1.4 The design of the module doesn't provide its operation in aggressive and dusty environments and in
ex-hazardous premises.
1.2 Specifications
№
1.2.1 Power supply voltage (PL voltage), V
1.2.2 Average consumed current, mA
1.2.3 Power input
1.2.4 Start-up time, s
1.2.5 Monitored circuits (device loops)
1.2.6 Ingress Protection Rating as per GOST 14254-2015
1.2.7 Immunity to mechanical exposure as per OST 25 1099-83
Vibration exposure:
1.2.8 - Frequency range, Hz
- Max acceleration
1.2.9 Climatic version as per OST 25 1099-83
1.2.10 Operating temperatures, °С
1.2.11 Relative humidity, %
1.2.12 Weight, kg
1.2.13 Overall dimensions, mm
1.2.14 Non-stop operation
1.2.15 MTBF in quiescent mode, hours
1.2.16 Survival probability
1.2.17 Average service life, years
1.2.18 The module passes the standards of industrial radio disturbance prescribed for Class B equipment
as per GOST 30805.22.
S2000-AR2 Rev.02
OPERATIONS MANUAL
Parameter
Table 1.2.1
Value
- 8 through 11
- 1.0 max
- 1
- 15 max
- 2
- IP41
- Arrangement Category III
- 1-35;
- 0.5g
- О3
- Minus 30 to +55
- Up to 93 at +40°С
- 0.04 max
- 56 × 38 × 20
- 24/7
- 80000
- 0.98758
- 10
