bolid S2000-AR8 Operation Manual

1. DESCRIPTION AND OPERATION

1.1

Product Designation

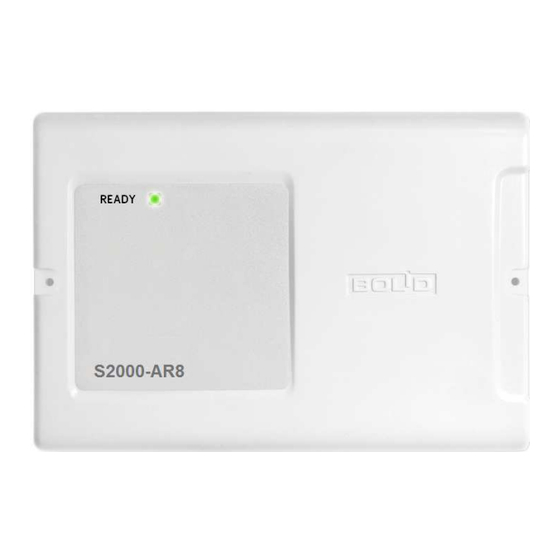

1.1.1 S2000-AR8 Addressable Eight-Input Module (hereinafter referred to as the module) is used with a
polling loop controller such as S2000-KDL, S2000-KDL-2I, S2000-KDL-2I Rev.01, S2000-KDL-S in
Orion integrated security systems. The module is designed to connect non-addressable dry contact
detectors into the polling loop (hereinafter referred to as PL) of the polling loop controller as well as to
supervise fire protection systems (voice announcement systems, smoke control systems, fire protection
dampers, etc.) and other control and auxiliary systems with dry contact outputs. The module is powered
via and communicates data over the polling loop of the polling loop controller. The module features a
tamper switch.
1.1.2 The module is designed for round-the-clock operation.
1.1.3 The module is a reparable and regularly maintained product.
1.1.4 The design of the module doesn't provide its operation in aggressive and dusty environments and
in ex-hazardous premises.
1.2

Specifications

No.
1.2.1 Power supply voltage (PL voltage), V
1.2.2 Average consumed current, mA
1.2.3 Start-up time, s
1.2.4 Monitored circuits (device loops)
1.2.5 Ingress Protection Rating as per GOST 14254-2015
1.2.6 Immunity to mechanical exposure as per OST 25 1099-83
Vibration exposure:
1.2.7 - Frequency range, Hz
- Max acceleration
1.2.8 Climatic version as per OST 25 1099-83
1.2.9 Operating temperatures, °С
1.2.10 Relative humidity, %
1.2.11 Weight, kg
1.2.12 Overall dimensions, mm
1.2.13 Non-stop operation
1.2.14 MTBF in quiescent mode, hours
1.2.15 Survival probability
1.2.16 Average service life, years
1.2.17 The module passes the standards of industrial radio disturbance prescribed for Class B equipment
as per GOST 30805.22.
1
ADDRESSABLE EIGHT-INPUT MODULE
S2000-AR8
OPERATIONS MANUAL
Parameter
Table 1.2.1
Value
- 8 through 11
- 4.0 max
- 15 max
- 8
- IP40
- Arrangement Category III
- 1-35;
- 0.5g
- О3
- Minus 30 to +55
- Up to 93 at +40°С
- 0.3 max
- 156 × 107 × 39 max
- 24/7
- 80000
- 0.98758
- 10
