Hisense HS312 User Manual

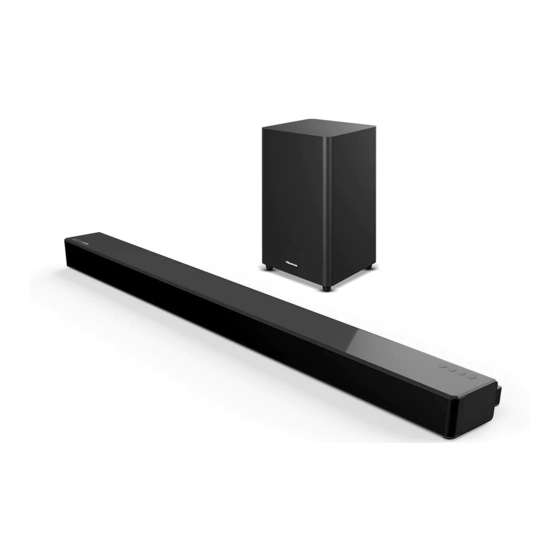

Soundbar with wireless subwoofer & dolby atmos
Hide thumbs Also See for HS312:
Table of Contents

Advertisement

Quick Links

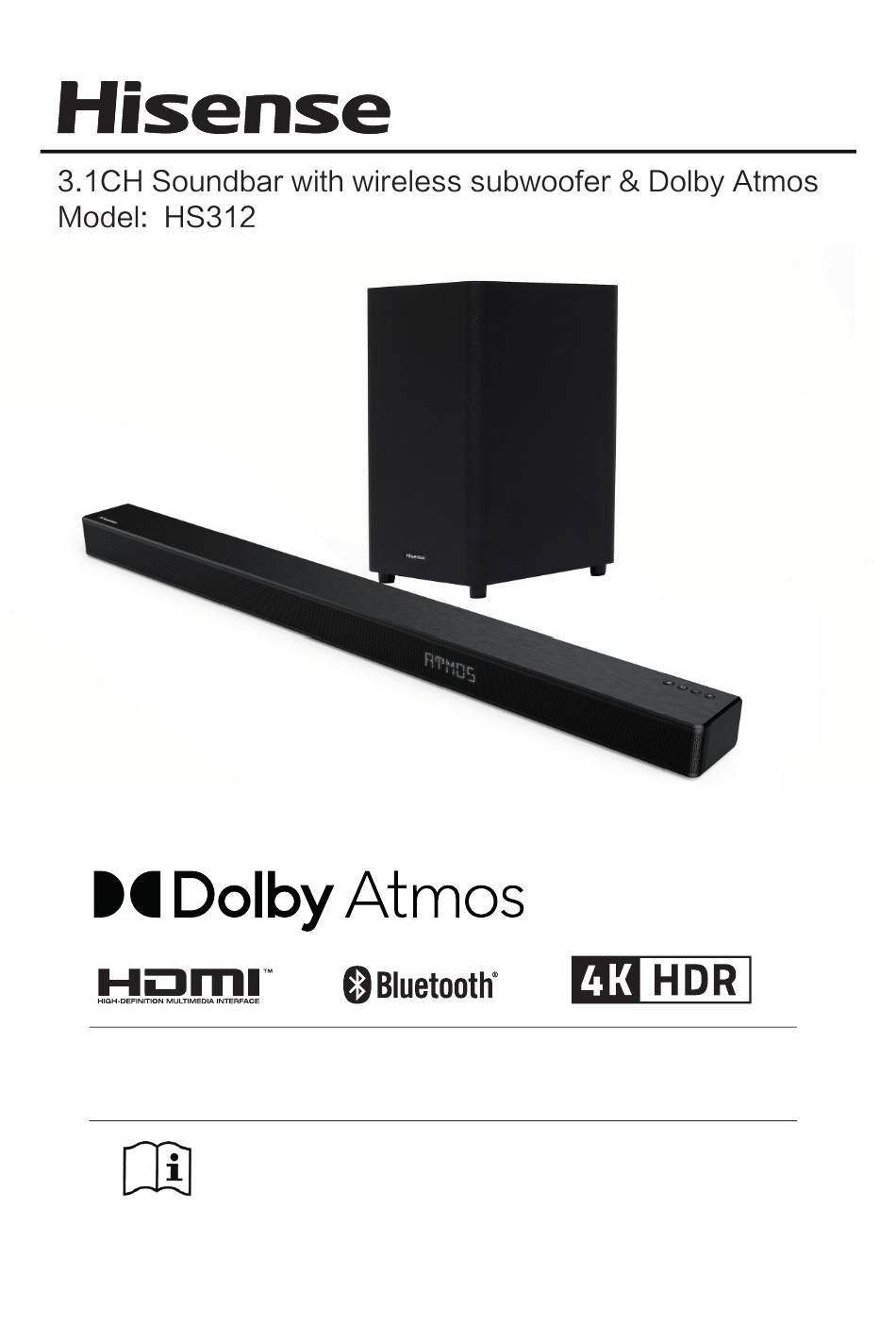

USER MANUAL
Before using the sound bar, please read this manual
thoroughly and retain it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS312 and is the answer not in the manual?

Questions and answers

Related Manuals for Hisense HS312

Summary of Contents for Hisense HS312

  • Page 1 USER MANUAL Before using the sound bar, please read this manual thoroughly and retain it for future reference.

  • Page 2: Table Of Contents

    Contents Important Safety Instructions Basic Operation Safety Standby/ON Warning Select Modes Adjust the Bass/Treble Level What’s in the Box Turn the Surround Sound ON/OFF Adjust the Volume Adjust the Brightness Identifying the Parts Select a Preset Sound Effect Main Unit Set the Audio Delay Wireless Subwoofer Remote Control...

  • Page 3: Important Safety Instructions

    Important Safety Instructions third prong is provided for your safety. If the C AUT I ON provided plug does not fit into your outlet, RISK OF ELECTRIC SHOCK consult an electrician for replacement of the DO NOT OPEN obsolete outlet. AV IS 10 Protect the power cord from being walked on or pinched particularly at plugs, convenience...

  • Page 4: Warning

    Caution: Battery usage CAUTION Use of controls or adjustments or performance To prevent battery leakage which may result in of procedures other than those described bodily injury, property damage, or damage to the herein, may result in hazardous radiation apparatus: exposure or other unsafe operation.
  • Page 5 Supported input audio formats The audio formats supported by this system are as follows. Format Function HDMI 1 HDMI 2 LPCM 2ch √ √ √ √ LPCM 5.1ch √ LPCM 7.1ch √ Dolby Digital √ √ √ √ Dolby TrueHD √...

  • Page 6: What's In The Box

    What’s in the Box Main Unit Remote Control / Wireless Subwoofer AAA Batteries x 2 AC power Cord HDMI Cable Quick Start Guide Bracket(x2) / Wall Plug(x2) • Design and specifications are subject to change without notice.

  • Page 7: Identifying The Parts

    Identifying the Parts Main Unit O P T 1 Remote Control Sensor Receive signal from the remote control. 2 Display Window Show the current status. (ON/OFF) button Switch the unit between ON and Standby mode. (SOURCE) button Select the play function. 5 VOL+/VOL- buttons Increase/decrease the volume level.

  • Page 8: Remote Control

    Remote Control Switch the unit between ON and STANDBY mode. (MUTE) Mute or resume the sound. 3 SOURCE Select the play function. (BT) Select the Bluetooth mode. 5 VOL+/VOL- Increase/decrease the volume level. Skip to previous/next track in BT/USB mode. /PAIR Play/pause/resume playback in BT/USB mode.

  • Page 9: Placement And Mounting

    Placement and Mounting Placement A If your TV is placed on a table, you can place the unit on the table directly in front of the TV stand, centered with the TV screen. B If your TV is attached to a wall, you can mount the unit on the wall directly below the TV screen. Wall Mounting (if using option-B) Note: Installation must be carried out by qualified...

  • Page 10: Connections

    Connections Dolby Atmos® Method 1: ARC (Audio Return Channel) The ARC (Audio Return Channel) function allows Dolby Atmos gives you amazing experience you you to send audio from your ARC- compliant TV to have never before by overhead sound, and all the your soundbar through a single HDMI connection.

  • Page 11: Use The Optical Socket

    Use the OPTICAL Socket Use the LINE IN Socket Remove the protective cap of the OPTICAL A. Use a 3.5mm to 3.5mm audio cable (not socket, then connect an OPTICAL cable (not included) to connect the TV’s or external audio device headphone socket to the LINE IN included) to the TV’s OPTICAL OUT socket and the OPTICAL socket on the unit.

  • Page 12: Pair Up With The Subwoofer

    Pair up With The Subwoofer Basic Operation Automatic pairing Plug the soundbar and the subwoofer into the Standby/ON mains sockets and then press on the unit or When you first connect the main unit to the mains remote control to switch the unit to ON mode. socket, the main unit will be in Standby mode.

  • Page 13: Turn The Surround Sound On/Off

    Turn the Surround Sound ON/OFF LINE IN / OPTICAL / COAXIAL / • Press the SURR button on the remote control HDMI ARC Operation to turn on the surround sound. Press this button again to turn off the surround sound. 1 Ensure that the unit is connected to the TV or audio device.

  • Page 14: Listen To Music From Bluetooth Device

    The display will show “PAIR” and you will hear "Pairing" from the unit. 3 Select “Hisense HS312” in the pairing list. After successful pairing, you will hear "Paired" from the unit, and the display panel shows “BT”.

  • Page 15: Troubleshooting

    Troubleshooting To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this unit, check the following points before requesting service. No power I can’t find the Bluetooth name of this unit on my Bluetooth device for •...

  • Page 16: Specifications

    Specifications Model Name HS312 Soundbar Power Supply AC100-240V~ 50/60Hz Power Consumption 30 W Standby Power < 0.5 W USB port for playback 0.5A USB Compatibility Hi-Speed USB (2.0) / FAT32 USB Playback support / file formats 32G (max) , MP3/WAV/WMA Dimension (WxHxD) 980 x 62 x 90 mm (38.6 x 2.4 x 3.5 inch)
  • Page 17 HS312...
