Quick Start Guide

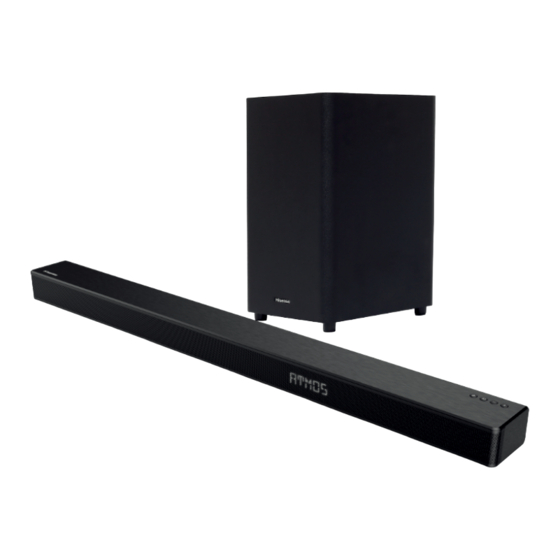

3.1CH Soundbar with wireless subwoofer &
Dolby Atmos
Model: HS312
What's in the Box
Main Unit
Wall Mounting Screws (x2) / Brackets (x2) /
Bracket Screw (x2) / Wall Anchors (x2)
1
Remote control
1
Switch the unit between ON and
STANDBY mode.
2
(MUTE)
Mute or resume the sound.
3 SOURCE
Select the play function.
4
(BT)
Select the Bluetooth mode.
5 VOL+/VOL- Increase/decrease the volume level.
6
/
Skip to previous/next track in
Bluetooth/USB mode.
7
/PAIR
Play/pause/resume playback in
Bluetooth/USB mode.
Press and hold to activate the
pairing function in Bluetooth mode
or disconnect the existing paired
Bluetooth device.
8 EQ
Select a preset sound e ect.
9 SURR
Adjust the surround ON/OFF.
10 DIMMER+/- Adjust display brightness.
11 BASS
Press to activate the bass setup.
12 TREBLE
Press to activate the treble setup.
Remote Control /
Wireless Subwoofer
AAA Batteries x 2
User Manual/Quick Start Guide/
AC Power Cord x2
Wall Mount Guide
Replace the Remote Control Battery
1
Press and slide the back cover to
open the battery compartment of
the remote control.
2
Insert two AAA size batteries
(included). Make sure the (+) and (–)
ends of the batteries match the (+)
and (–) ends indicated in the battery
compartment.
3
Close the battery compartment cover.
-
Do not mix old and new batteries;
-
Do not mix alkaline, standard (Carbon-Zinc) or
rechargeable (Ni-Cd, Ni- MH, etc.) batteries.
2
E N
Identifying the Parts
Main Unit
1 Remote Control Sensor
Receive signal from the remote control.
2 Display Window
Show the current status.
3
(ON/OFF) button
Switch the unit between ON and Standby
mode.
4
(SOURCE) button
Select the play function.
5 VOL+/VOL- buttons
HDMI Cable
Increase/decrease the volume level.
6 Screws
Remove the screws then install the wall
mounting screws into the back of the unit.
7 USB Socket
Insert the USB device to play music.
8 LINE IN Socket
Connect to an external audio device.
9 OPTICAL Socket
10 COAXIAL Socket
11 HDMI OUT (ARC) Socket
Connect to a TV via HDMI cable.
12 HDMI IN 1 / HDMI IN 2 Sockets
13 AC~ Socket
Connect to the power supply.
Wireless Subwoofer
1 AC~ Socket
Connect to power.
2 PAIR button
Press activate the pairing function between
the main unit and the subwoofer.
3 PAIR Indicator
Light stops blinking once the Subwoofer is
paired with the Soundbar.
Identifying the Parts
O P T
6
1
2
3
4
7
8
9
10
11
1
7
5
12
13
2
3
