Installation, Operation & Maintenance
COMBINATION AIR VALVE
MODEL D-060 D-060-C D-062 D-065 D-060L
The following is a step-by-step narrated description of the A.R.I. D-060 combination air valve installation,
operation and maintenance processes.

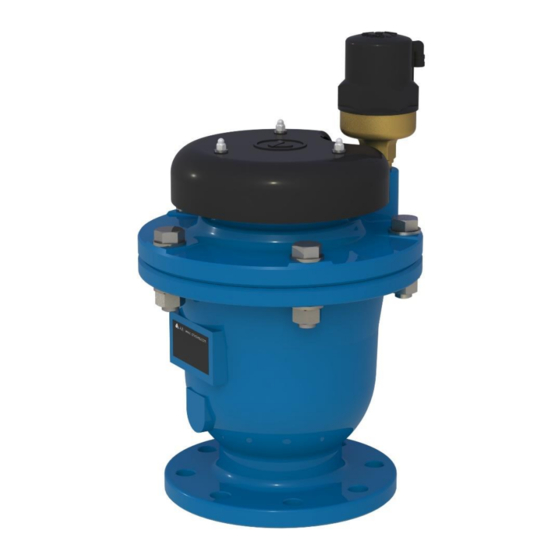

The D-060 air valve has the features of both an Automatic Air Release valve and an Air & Vacuum valve. The
Air Release component is designed to automatically release small pockets of air to the atmosphere as they
accumulate along a pipeline or piping system when it is full and operating under pressure. The Air & Vacuum
component is designed to automatically discharge or admit large volumes of air during the filling or draining
of a pipeline or piping system. This valve will open to relieve negative pressures whenever water column
separation occurs.
Advertisement
Table of Contents
Related Manuals for A.R.I. D-060
Summary of Contents for A.R.I. D-060
- Page 1 The D-060 air valve has the features of both an Automatic Air Release valve and an Air & Vacuum valve. The Air Release component is designed to automatically release small pockets of air to the atmosphere as they accumulate along a pipeline or piping system when it is full and operating under pressure.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY INSTRUCTIONS ..........................3 Safety Instructions - General ........................... 3 Safety Instructions - Handling ..........................3 Safety Instructions - Installation ..........................3 Safety Instructions - Commissioning and Operation .................... 4 Safety Instructions - Maintenance .......................... 4 Safety Instructions - Before returning to regular operation .................. -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS Safety Instructions - General A.R.I. products always operate as components in a larger system. It is essential for the system designers, installers, operators and maintenance personnel to comply with all the relevant safety standards. Installation, operation or maintenance of the product should be done only by qualified workers, technicians and/or contractors using only good engineering practices, complying with and observing all conventional safety instructions in order to minimize risk and/or danger and/or hazard to workers, the public or to property in the vicinity in accordance with all relevant local standards. -
Page 4: Safety Instructions - Commissioning And Operation
Safety Instructions - Commissioning and Operation Read carefully the operation instructions prior to any attempt to operate the product. Observe the safety stickers on the product and never perform any operation contradicting the instructions given. In order to achieve maximum performance and smooth operation of the product, it is crucial to perform the startup and first operation procedures exactly as described in this manual. -
Page 5: Installation
2. INSTALLATION Important: Before performing any work on the air valve make sure that all workers on site are familiar with the safety instructions and the relevant local and general safety instructions and work regulations. 2.1. Installation Recommendations Single Air Valve on an Isolating Valve at 45° to Air Valve outlet Two Air Valves on a shared Isolating Valve. -
Page 6: Conventions And Measurements
2.2. Conventions and Measurements This paragraph presents and explains the terms and measurements used for the Installation process. Isolation D = Diameter of pipeline Valve d = diameter of riser H = Height of riser on the pipeline (Measured from crown of pipeline) •... -
Page 7: Installation Instructions
2.3. Installation Instructions 1. Flush the system before installing the air valve to avoid any debris or sharp objects getting into the air valve. 2. Carefully remove the air valve from the shipping package. Unload all air valves carefully to a sturdy level surface taking care not to drop them. -
Page 8: Operation
3. OPERATION The Air & Vacuum component, with the large orifice, discharges air at high flow rates during the filling of the system, and admits air into the system, at high flow rates, during system’s drainage and at water column separation. -
Page 9: Periodic Maintenance
Use a ratchet box wrench to gradually release the Plug of the pressure release port, wait till the pressure is released and then unscrew the Plug completely, remove it and drain the air valve. The maintenance procedure of the D-060 air valve is divided into the following two separate processes: Automatic valve... -
Page 10: Maintaining The Automatic Air Release Valve - S-050
4.2. Maintaining the Automatic Air Release valve – S-050 Refer to the drawing on the next page. 1. Shut the isolating valve below the air valve. 2. Unscrew the Body of the Automatic air release valve from the Base, making sure that the valve Base does not rotate. - Page 11 S-050 - AUTOMATIC VALVE – ASSEMBLY BOM TABLE AND DRAWING Body Discharge Outlet Elbow Rolling Seal Float Clamping Stem O-ring Base Strainer...
-
Page 12: Maintaining The Automatic Air Release Valve - S-050C / S-052
4.3. Maintaining the Automatic Air Release valve - S-050C / S-052 Refer to the drawing on the next page. 1. Shut the isolating valve below the air valve. 2. Unscrew the Body of the Automatic air release valve from the Base, making sure that the valve Base does not rotate. - Page 13 S-050C / S-052 - AUTOMATIC VALVE – ASSEMBLY BOM TABLE AND DRAWING Shell O-ring Discharge Outlet Body Rolling Seal Float Clamping Stem O-ring Base Strainer...
-
Page 14: Maintaining The Automatic Air Release Valve - S-050L
4.4. Maintaining the Automatic Air Release valve - S-050L Refer to the drawing on the next page. 1. Shut the isolating valve below the air valve. 2. Unscrew the Body of the Automatic air release valve from the body extension, making sure that the valve Base does not rotate. - Page 15 S-050L - AUTOMATIC VALVE – ASSEMBLY BOM TABLE AND DRAWING Body Discharge Outlet Rolling Seal Clamping Stem Float O-ring Body Extension Plug Base Strainer...
-
Page 16: Maintaining The Automatic Air Release Valve - S-015
4.5. Maintaining the Automatic Air Release valve - S-015 Refer to the drawing on the next page. Basic, Periodic Maintenance: 1. Shut the isolating valve below the air valve. 2. Unscrew the Cover Bolts of the automatic air release valve slowly, to release accumulated pressure. 3. - Page 17 S-015 - AUTOMATIC VALVE – ASSEMBLY BOM TABLE AND DRAWING Air Release Outlet Circlip Cover O-Ring Orifice seat Rolling Seal Lever Roll-Pin Float O-Ring Bolts, Nuts & Washers Body Adaptor...
-
Page 18: Maintaining The Air & Vacuum Valve
4.6 Maintaining the Air & Vacuum valve Refer to the drawing on the next page. 1. Shut the isolating valve below the air valve. 2. Unscrew the Bolts that connect the valve Cover to the valve Body. 3. Remove the Cover assembly from the valve Body 4. - Page 19 AIR & VACUUM VALVE - ASSEMBLY BOM TABLE AND DRAWING Cover Assembly Float O-ring Bolts & Nuts Body...
-
Page 20: Troubleshooting
5. TROUBLESHOOTING Symptom Possible Causes Remedy Shut the isolating valve, wait a minute, and Leakage from the Small Orifice A. Debris or scale buildup on the Rolling Seal. open it again, very fast. If leaking B. Torn Rolling Seal. continues, follow instructions for: 4.2 Maintenance - Automatic Air Release Component Leakage from the Large Orifice... -
Page 21: Limited Warranty
6. A.R.I. LIMITED WARRANTY A.R.I. Standard International Warranty A.R.I. manufactured products are guaranteed to be free from defect in material and/or workmanship and to perform as advertised when properly installed, used and maintained in accordance with current instructions, written or verbal. Should any item prove defective within the time period set forth for that item(s), but in any case, not later than within 12 (Twelve) months of that product having left A.R.I.’s premises, and subject to receipt by A.R.I.
