Physical Installation - D-Link DWP-902 Quick Installation Manual

Physical Installation

STEP 1: Verify SIM/UICC card.
Verify that your SIM/UICC card has been installed
and activated by your carrier.

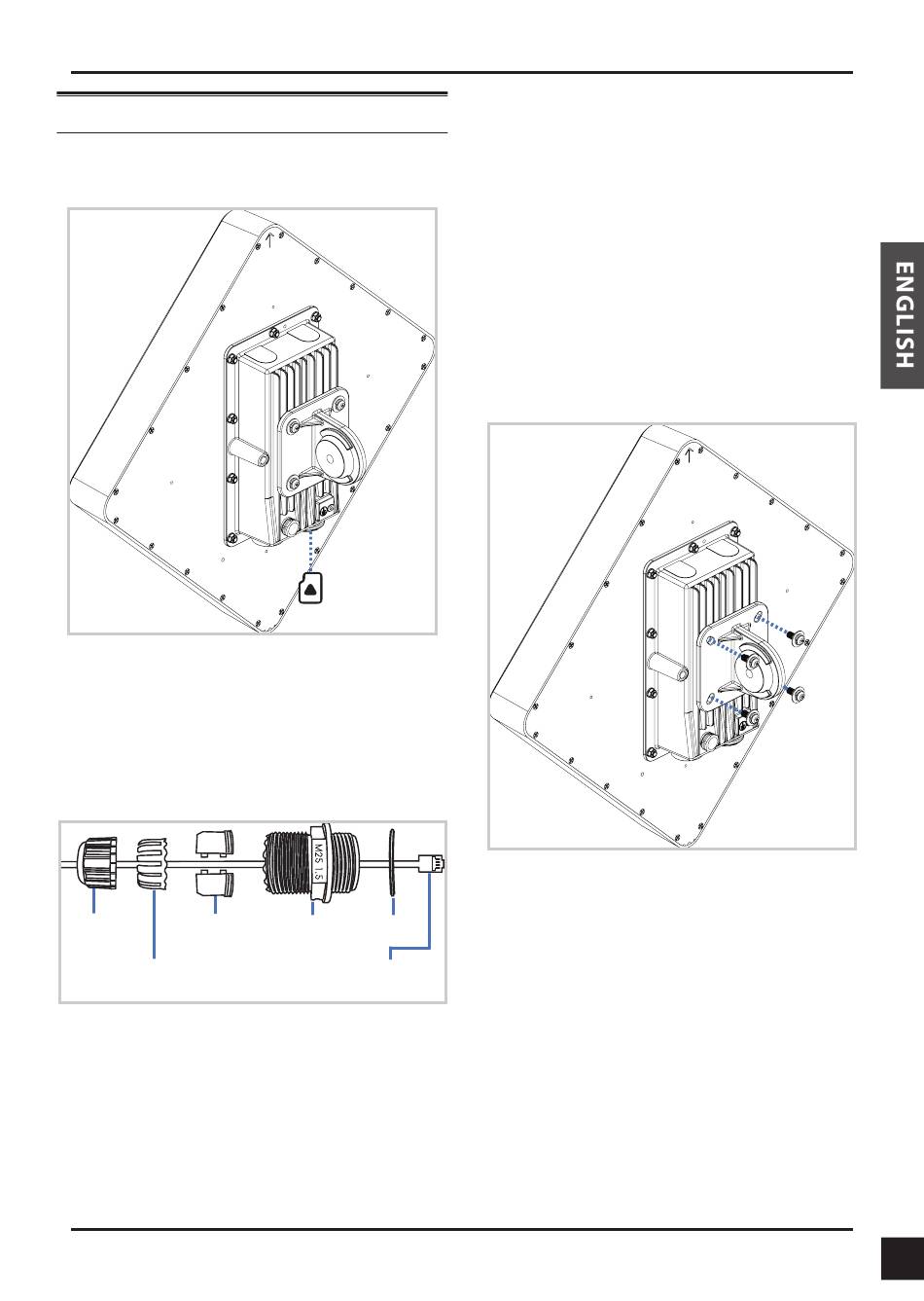

STEP 2: Connect an Ethernet Cable
to the LAN1 (PoE) Port on the AP.
Sealing Sealing
Nut Insert
Clamping
Screw
A. Separate the washer, gland, sealing insert,
clamping claw, and sealing nut.
B. Thread an Ethernet cable through each in
order and then connect the cable to the port.
D-Link DWP-902 Quick Install Guide
Gland Washer
Ethernet
Cable
C. Attach the washer and gland to the case
DWP-902, then reassemble the sealing insert,
clamping claw, and sealing nut. Tighten until
snug.
STEP 3: Install Articulation Pole on
Enclosure
Align the holes on the articulation pole to the
back of the device and attach using the M5x16
screws and M5 washers.
3
