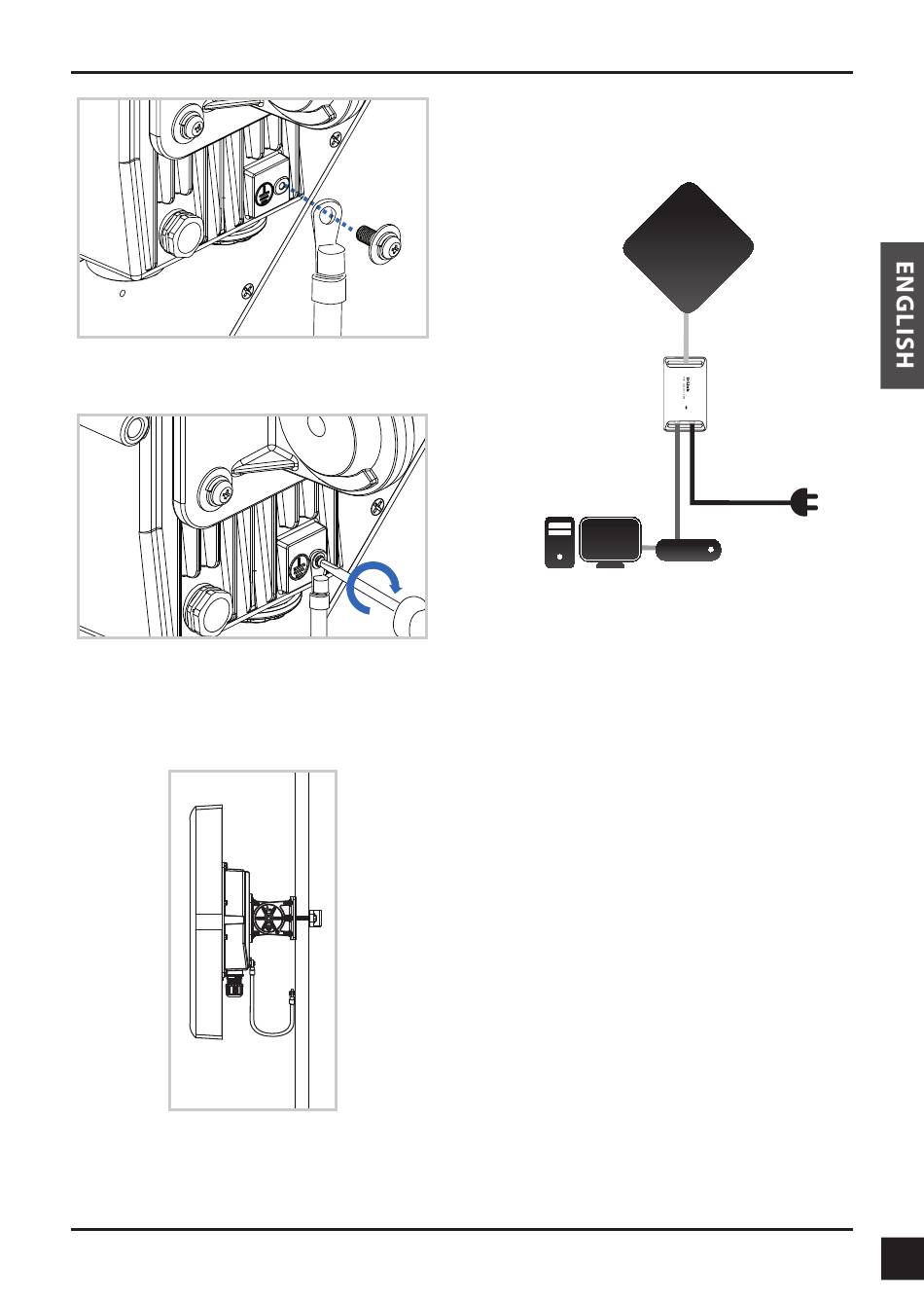

A. Attach the grounding wire to the DWP-902
using the included M4x0.7 grounding screw.
B. Tighten the grounding wire to the DWP-902
until it is securely attached.
Pole Mount
C. Attach the other end of the grounding wire to
the pole mount. Ensure that the pole mount is
connected to an electrical ground.
D-Link DWP-902 Quick Install Guide
STEP 7: Connect the DWP-902 to
Your Network
DWP-902
PoE Out
DPE-301G1
LAN IN
Computer
A. Connect the Ethernet cable (connected to
the DWP-902 in STEP 1) from the DWP-902 to
the "PoE OUT" port on the PoE Injector.
B. Connect an Ethernet cable from a router/
switch or PC to the "DATA IN" port on the PoE
Injector.
C. Attach the power adapter to the connector
labeled "POWER IN" on the PoE Injector, and
plug it into an electrical outlet.
LAN1 (PoE)
PoE OUT
54V IN
Router or Switch
