Summary of Contents for Chamberlain LC-36A

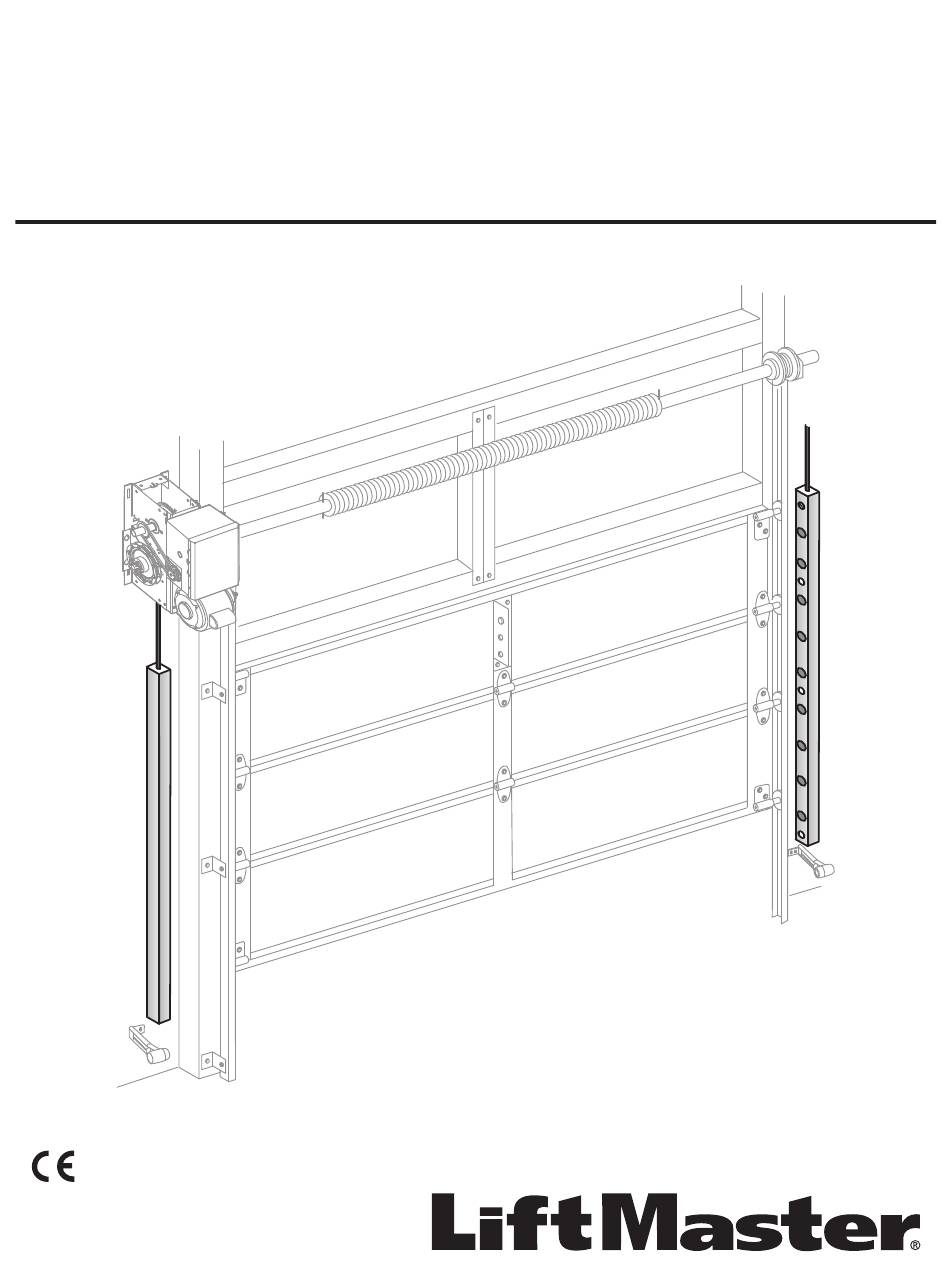

- Page 1 ® LiftMaster Light Curtain Model LC-36A LiftMaster 845 Larch Avenue Elmhurst, IL 60126-1196...
- Page 2 ® Light Curtain (Model LC-36A) is an ancillary entrapment protection device used with sectional and rolling doors that is designed with 8 optical sensors that form 22 total invisible light beams. These light beams create a cross-pattern or netting effect for maximum protection against entrapment.
-
Page 3: Carton Inventory
INTRODUCTION The images in this document are for reference only and your product may look different. CARTON INVENTORY APPLICATION Not Shown The Light Curtain is compatible with LiftMaster Heavy, Standard, and Medium Duty Logic, FDC, FDCL, FDOA, FDOB, and Egress Commercial •... -
Page 4: Installation
INSTALLATION To prevent possible product damage and incorrect operation: • Oil may damage the Light Curtain cable so contamination MUST be avoided at ALL times. • NEVER scratch or paint the optical sensors. • DO NOT mount the Light Curtain where sunlight or other external •... -
Page 5: Power Wiring
INSTALLATION INSTALL MULTIPLE LIGHT CURTAINS ON ADJACENT DOORS When installing more than one set of Light Curtains on adjacent doors, blocking material must be attached to the center Light Curtains (as shown) to prevent cross-talk that could occur due to the close proximity of the Light Curtain sensors. 1. -
Page 6: Finish Installation
• Defective Light Curtain Receiver • Replace Light Curtain receiver and transmitter (Model LC-36A) TEST THE PRIMARY AND ANCILLARY ENTRAPMENT PROTECTION It is the responsibility of the specifier, purchaser, and installer to ensure that, on completion, the installation of the Light Curtain complies with all relevant federal, state, and local codes and regulations.
