Hope Industrial Systems IS-UM17 B Series User Manual

17” universal mount industrial monitor

Advertisement

Quick Links

Hope Industrial Systems, Inc.
User Manual
17" Universal Mount Industrial Monitor
Model No. HIS-UM17-_ _ _ B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IS-UM17 B Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Hope Industrial Systems IS-UM17 B Series

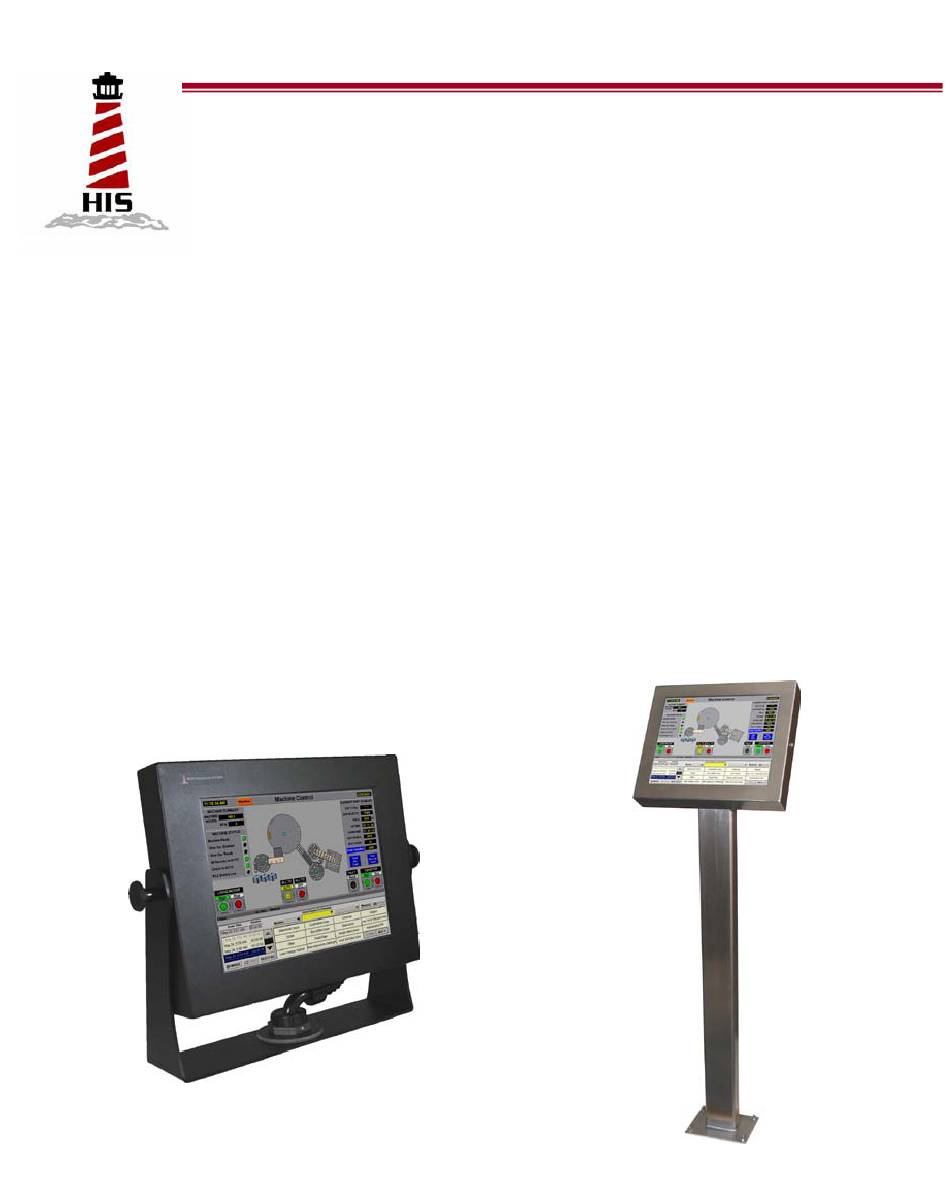

  • Page 1 Hope Industrial Systems, Inc. User Manual 17” Universal Mount Industrial Monitor Model No. HIS-UM17-_ _ _ B...
  • Page 2: Table Of Contents

    Table of Contents Safety and Regulatory Information ..................... 3 Warning ............................3 FCC Notice ............................3 Control Panel Buttons and Indicators ....................4 OSD Functions ............................. 6 Picture ............................. 6 Color ..............................6 Image .............................. 7 On-Screen Display (OSD) ........................ 8 Setup ...............................
  • Page 3: Safety And Regulatory Information

    Safety and Regulatory Information Warning To prevent fire or shock hazard, do not expose the unit to rain or moisture. Dange- rously high voltages are present inside the unit. Do not disassemble the unit. Refer servicing to qualified personnel only. This equipment is not intended for use in critical applications where its failure to op- erate would create immediate life threatening circumstances.
  • Page 4: Control Panel Buttons And Indicators

    Control Panel Buttons and Indicators Control Panel Button Mode Description Opens the OSD menu. Also used to exit the OSD menu or return to the previous menu. MENU Always Note: Pressing the menu button for more than 5 seconds will lock the OSD function, repeat to unlock. MagicBright: Provides an optimum viewing envi- ronment depending on the contents of the image you are watching.
  • Page 5 Control Panel Button Mode Description When the OSD Push to adjust brightness. Menu is NOT Displayed When the OSD Adjusts items in the menu UP. Menu is Being Displayed When the OSD Activate a highlighted menu item. ENTER Menu is Being Displayed Use this button for auto adjustment of the display.
  • Page 6: Osd Functions

    OSD Functions Picture Menu Description Direct Access Feature: When OSD is not on the screen, push the Brightness button to adjust brightness. Adjust the contrast. Contrast Color Menu Description Off: Returns to the original mode Demo: The screen before applying MagicColor appears on the right and the screen after applying MagicColor appears on the left Full: Displays not only vivid natural color but also...
  • Page 7: Image

    The tone of the color can be changed and one of four modes can be Color Tone selected – Cool, Normal, Warm and Custom. Adjust individual R,G,B color balance. Color Control Select one of three pre-defined gammas: • Mode 1 : Shows normal gamma Gamma •...
  • Page 8: On-Screen Display (Osd)

    On-Screen Display (OSD) Menu Description Changes the language used in the display menu. Language Changes the horizontal position of the OSD. H-Position Changes the vertical position of the OSD. V-Position Changes the translucency of the background of the OSD. Transparency The OSD menu will automatically turn off if no adjustments are made for a certain time period.
  • Page 9: Installation Instructions

    Installation Instructions Preparing for Installation Important! Perform the following steps BEFORE installation of the monitor. 1. Ensure that sufficient power is available. 2. Ensure that sufficient space is available to allow for proper airflow around the en- closure. 3. Ensure that the air temperature around the unit (top and bottom) will not exceed the rated specifications of the unit .
  • Page 10: Installation Using The Yoke And Benchtop Mounting Option

    Installation using the yoke and benchtop mounting option 1. Insure mounting surface is smooth enough to seal with gasket and create mounting pattern in surface per the above diagram. 2. Install first two opposing ¼-20 flat head screws (two different lengths provided) 3.
  • Page 11: Installation Using Yoke And Pedestal Mounting Option

    Installation using yoke and pedestal mounting option 1. Prepare the mounting surface for installation of the pedestal by referring to the illustra- tion. 2. Install the pedestal using appropriate hardware and methods for the mounting sur- face selected taking strength, cable routing and sealing into consideration.
  • Page 12 Installation using yoke and pedestal mounting option (continued from previous page) Note: The ¾” conduit and other sealing hardware are not required for NEMA 12 monitors or NEMA 4/4X monitors with the 4-cable gland.
  • Page 13: Installation Using Fixed Pedestal Mounting Option

    Installation using fixed pedestal mounting option 1. Prepare the mounting surface for installation of the pedestal by referring to the illustra- tion. 2. Install the pedestal using appropriate hardware and methods for the mounting surface selected taking strength, cable routing and sealing into consideration. 3.
  • Page 14 Installation using fixed pedestal mounting option (continued from previous page)
  • Page 15: Touchscreen Driver Installation

    Touchscreen Driver Installation The enclosed CD-ROM contains documentation and drivers for all major operating systems. To be sure you have the most current information, check the following Internet addresses: http://HISmonitors.com/Touchscreen_Drivers.htm Cleaning CAUTION! DO NOT USE ABRASIVE MATERIALS SUCH AS PAPER TOWELS OR DIRTY SHOP RAGS ON THE DISPLAY AS IT WILL SCRATCH THE PROTECTIVE COATING.
  • Page 16: Troubleshooting

    Troubleshooting Symptom Check List Solutions No image on the Do you see the “Check Sig- Check the video connection from the monitor to nal Cable” message on the computer. screen screen? If running Windows and the If you see the initial screens, then the image computer power is on, reboot goes dark, the computer may be set to an in- the computer and watch for...
  • Page 17 Symptom Check List Solutions • Make sure the PC display resolution Image on screen Many possible causes. Try the following solutions. is not perfect matches one the factory preset timings shown in this manual. • Recall factory setting. Refer to panel con- trols and OSD functions in this manual.
  • Page 18: Drawings

    Drawings Front View Side and Rear View...
  • Page 19: Specifications

    Specifications Display Type Thin-film transistor (TFT) Active Matrix Liquid Crystal Size 17” diagonal Image size 13.3” (338mm) x 10.6” (270mm) Native resolution SXGA (1280 x 1024) Plug and Play DDC1/2B compatible Minimum resolution VGA (640 x 480) Pixel pitch 0.264mm x 0.264mm Number of colors 16.2 million Viewing Angle (Hori/Vert)
  • Page 20: Video

    Video Input connector HD-15 (optional BNC input) Input signal format RGB Analog video 0.7Vp-p Positive at 75 Ohm +-10% Separate H/V sync, Composite H/V sync, Sync on green, TTL level positive or negative. Horizontal scan 30kHz – 81kHz Vertical scan 56Hz –...
  • Page 21: Enclosure

    Enclosure Type Self-contained, stainless steel or painted carbon steel Environmental rating NEMA 12, 12/4, or 12/4/4X (built to IP65 standards) Seal NEMA 12 gland, NEMA 4 gland, ¾” conduit, or 4-cable gland Mounting VESA pattern 100mm square, M4 threads Optional Yoke mounting with ¼-20 internal thread interface Physical Dimensions –...
  • Page 22: Factory Preset Timing

    Factory Preset Timing Horizontal Vertical Pixel Sync Polarity Frequency Frequency Clock (H/V) Resolution (KHz) (Hz) (MHz) IBM, 640 x 350 31.469 70.086 25.175 IBM, 640 x 480 31.469 59.940 25.175 IBM, 720 x 400 31.469 70.087 28.322 VESA, 640 x 480 37.500 75.000 31.500...
  • Page 23: Warranty Statement

    Warranty Statement Who is Covered? This warranty covers the purchaser of this product only and is not transferable without our written consent. What Does This Warranty Cover and What is the Period of Coverage? The warranty remains in force for a three year period beginning on the date we invoice you for the product unless it is a keyboard, for which the warranty period is one year.
  • Page 24 Hope Industrial Systems, Inc. 1325 Northmeadow Parkway Suite 100 Roswell, GA 30076 www.HISmonitors.com  2006 Hope Industrial Systems, Inc. Publication UM17 Rev B November, 2006...
