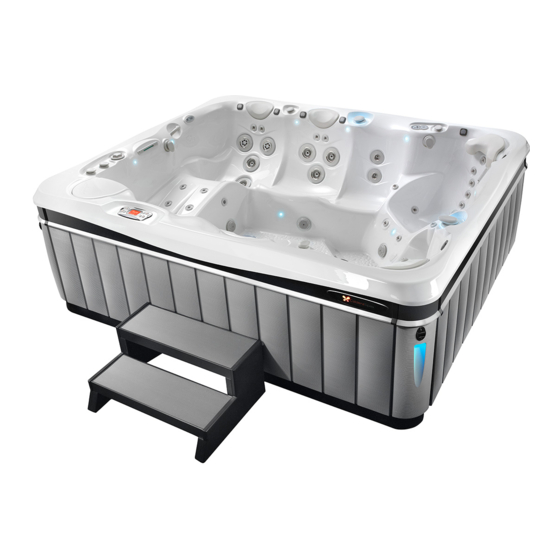

CalderaSpas Paradise Series Pre-Delivery Instructions

CalderaSpas Paradise Series Pre-Delivery Instructions

Hide thumbs Also See for Paradise Series:

Advertisement

Quick Links

Congratulations on your decision to enjoy the finest spa available...
Welcome to the growing family of CALDERA spa owners.
Pre-Delivery Instructions
Please take the time to read this booklet carefully, as it will provide you with the information you will need to ensure
the safe, secure, and timely installation of your new spa. The following sections are guidelines on how to prepare for
delivery and set-up of your new spa. Specifically covered are site selection, delivery access, ground preparation, and
electrical requirements.
Remember to carefully read the Owner's Manual that accompanies your spa and to complete the warranty card
within ten days of delivery. These items, along with other valuable information, are included in the Owner's Packet
which can be located in the equipment compartment of your spa. You will also find your serial number in the
equipment compartment.
WATKINS WELLNESS reserves the right to change features, specifications, and design without notification and
without incurring any obligation.
DATE PURCHASED: _________________________________________________________________
DATE INSTALLED: ___________________________________________________________________
DEALER: ___________________________________________________________________________
ADDRESS: __________________________________________________________________________
TELEPHONE: _______________________________________________________________________
In most cities and counties, permits will be required for the installation of electrical circuits or the construction of
exterior surfaces (decks and spa enclosures). In addition, some communities have adopted residential barrier codes
which may require fencing and/or self-closing gates on the property to prevent unsupervised access to a pool (or
spa) by children under 5 years of age. Your Caldera
F1346-91 Standard for Safety Covers, and as a result, is usually exempt from most barrier requirements. As a
general practice, your local Building Department will inform you of any applicable barrier requirements at the time a
permit is obtained for the installation of an electrical circuit. Your CALDERA dealer can provide information on which
permits may be required.
Paradise
Series
®
®
spa is equipped with a locking cover that meets the ASTM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Paradise Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CalderaSpas Paradise Series

  • Page 1 Paradise Series ® Congratulations on your decision to enjoy the finest spa available... Welcome to the growing family of CALDERA spa owners. Pre-Delivery Instructions Please take the time to read this booklet carefully, as it will provide you with the information you will need to ensure the safe, secure, and timely installation of your new spa.
  • Page 2: Site Selection And Preparation

    Pre-Delivery Instructions SITE SELECTION AND PREPARATION IMPORTANT: Site selection and preparation are your responsibility. Carefully read these instructions and consult your authorized CALDERA dealer if you have any questions. You probably have a spot picked out for your new spa, whether it’s indoors or outdoors, on a patio or on a deck. Just make sure you check the following: •...
  • Page 3: Delivery Access

    *NOTE: Have a reinforced concrete pad at least 4 inches (10cm) thick or a deck that is able to withstand the pounds per square foot listed in FOUNDATIONS FOR SPAS WITH GAZEBOS the Spa Specification section. The reinforcing rod or mesh in the pad should be attached to a bond wire.
  • Page 4 Pre-Delivery Instructions The crane has a truck-mounted boom which can fit right in your driveway. It is run by a licensed and insured operator. For a charge, the crane operator will lift your spa over walls, buildings, or any other obstruction and place it as close to the installation site as possible.
  • Page 5: Makena And Salina

    MAKENA and SALINA NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions. DOOR PANEL 69.5in 176.53cm Configuration and location may change without notice. DOOR DOOR PANEL 69.5" (176.5 cm) 69.5in 176.53cm 36.02in 91.48cm 30.00in 76.20cm FRONT VIEW 36"...
  • Page 6 Pre-Delivery Instructions MARTINIQUE NOTE: All dimensions are approximate; measure your spa before making DOOR critical design or pathway decisions. 56.75in 144.15cm Configuration and location may change without notice. DOOR DOOR 56.75in 144.15cm 56.75" (144 cm) 34.00in 86.36cm 30.50in 77.47cm ELECTRICAL ELECTRICAL OUTLET OUTLET...
  • Page 7 SEYCHELLES NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions. Configuration and location may change without notice. DOOR 65" (165 cm) FRONT VIEW 36" (91 cm) 30" (76 cm) ELECTRICAL CUTOUT AIR VENTS BELOW DOOR SPA DRAIN 10"...
  • Page 8 Pre-Delivery Instructions REUNION NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions. Configuration and location may change without notice. DOOR 65" (165 cm) FRONT VIEW 36" (91 cm) 30" (76 cm) ELECTRICAL CUTOUT AIR VENTS BELOW DOOR SPA DRAIN 10"...
  • Page 9 KAUAI NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions. Configuration and location may change without notice. 29.5in 74.92cm DOOR 23.5in 59.80cm 65" (165 cm) FRONT VIEW 29.5" (75 cm) 29.5in 74.92cm 23.5" (60 cm) 23.5in 59.80cm 2.5in 6.35cm...
  • Page 10: Electrical Requirements

    Pre-Delivery Instructions ELECTRICAL REQUIREMENTS To ensure you will have an opportunity to use your spa soon after delivery, it is very important that the required electrical service has been installed. Unless otherwise stipulated by your dealer, THIS IS YOUR RESPONSIBILITY. IMPORTANT: All electrical circuits must be installed by a qualified, licensed electrician.
  • Page 11 PARADISE SERIES 230 Volt Permanently Connected WARNING! THE EXACT PHYSICAL LOCATION OF THE TERMINALS ON THE GFCI BREAKER WILL VARY BETWEEN MANUFACTURERS. CONNECTING THE HOT WIRE TO THE NEUTRAL TERMINAL WILL CAUSE IRREVERSIBLE DAMAGE TO THE CONTROL BOX. ** Refer to NEC 250-122 (table) ** Refer to NEC 250-122 (table) NOTE: The wire connections to GFCI breakers are for reference only.
  • Page 12 Pre-Delivery Instructions SERVICES AVAILABLE FROM YOUR CALDERA SPA DEALER Pre-Delivery site inspection _____________ Deliver spa to installation site _____________ Unwrap spa and haul away packaging material _____________ Set up spa _____________ Fill the spa with water _____________ Explain and test the spa’s operation: _____________ •...
  • Page 13 ADDITIONAL PRODUCTS AVAILABLE FROM YOUR CALDERA SPA DEALER • FreshWater Salt System Start-Up Kit ® • FreshWater Salt System Replacement Cartridges • Ozone Kit • Monarch Silver Cartridge Mineral Spa Sanitizer • Clean Screen Pre-Filter ® • FreshWater Vanishing Act Calcium Remover ®...
  • Page 16 PARADISE SPA SPECIFICATIONS 230 volt, 30 or 50 amp 7'5" x 7'5" 75 ft² 1,020 lbs 5,365 lbs gallons 36" 120 lbs/ft² MAKENA 4,000 Single phase GFCI 91 cm 580 kg/m² 1,495 2.26 m x 2.26 m 7 m² 465 kg 2,445 kg protected circuit liters...
