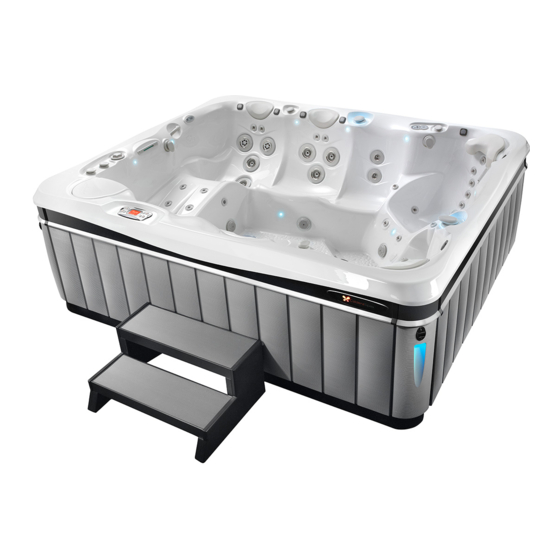

CalderaSpas Paradise Series Pre-Delivery Instructions

CalderaSpas Paradise Series Pre-Delivery Instructions

Portable, outdoor spas and hot tubs
Hide thumbs Also See for Paradise Series:

Advertisement

Quick Links

Pre-Delivery Instructions
Please take the time to read this booklet carefully, as it will provide you with the information you will need to ensure
the safe, secure, and timely installation of your new spa. The following sections are guidelines on how to prepare for
delivery and set-up of your new spa. Specifically covered are site selection, delivery access, ground preparation, and
electrical requirements.
Remember to carefully read the Owner's Manual that accompanies your spa and to complete the warranty card
within ten days of delivery. These items, along with other valuable information, are included in the Owner's Packet
which can be located in the equipment compartment of your spa. You will also find your serial number in the
equipment compartment.
WATKINS WELLNESSreserves the right to change features, specifications, and design without notification and
without incurring any obligation.
DATE PURCHASED: _________________________________________________________________
DATE INSTALLED: ___________________________________________________________________
DEALER: ___________________________________________________________________________
ADDRESS: __________________________________________________________________________
TELEPHONE: _______________________________________________________________________
In most cities and counties, permits will be required for the installation of electrical circuits or the construction of
exterior surfaces (decks and spa enclosures). In addition, some communities have adopted residential barrier codes
which may require fencing and/or self-closing gates on the property to prevent unsupervised access to a pool (or
spa) by children under 5 years of age. Your Caldera
F1346-91 Standard for Safety Covers, and as a result, is usually exempt from most barrier requirements. As a
general practice, your local Building Department will inform you of any applicable barrier requirements at the time
a permit is obtained for the installation of an electrical circuit. Your Caldera dealer can provide information on which
permits may be required.
Paradise Series
®
spa is equipped with a locking cover that meets the ASTM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Paradise Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CalderaSpas Paradise Series

  • Page 1 Paradise Series Pre-Delivery Instructions Please take the time to read this booklet carefully, as it will provide you with the information you will need to ensure the safe, secure, and timely installation of your new spa. The following sections are guidelines on how to prepare for delivery and set-up of your new spa.
  • Page 2: Site Selection And Preparation

    Pre-Delivery Instructions SITE SELECTION AND PREPARATION IMPORTANT: Site selection and preparation are your responsibility. Carefully read these instructions and consult your authorized Caldera ® dealer if you have any questions. You probably have a spot picked out for your new spa, whether it’s indoors or outdoors, on a patio or on a deck. Just make sure you check the following: •...
  • Page 3: Delivery Access

    Martinique and Kauai spas. The reinforcing rod or mesh in the pad ® ® should be attached to a bond wire. FOUNDATIONS FOR SPAS WITH GAZEBOS • Concrete sloped at 1/2 inch per 10 feet is preferred so that rain water and water spillover will run off and not puddle underneath the spa (water under the spa for long periods of time may cause the wood to deteriorate).
  • Page 4 Pre-Delivery Instructions If the spa has to be taken off of the cart to go over a wall (either because the entry area is too narrow, the eaves are too low, the corner is too tight, or the stairway is too steep), a crane will be required. Don’t be alarmed! The crane has a truck-mounted boom which can fit right in your driveway.
  • Page 5: Front View

    Makena and Salina ® ® NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions. 36” 33” (91cm) FRONT VIEW (84cm) 6.5” 16.5cm DOOR DOOR DOOR ELECTRICAL 2.5” (6.4cm) 10.5” 10.5” 56.75” OUTLET (27cm) (27cm) (144cm) (BOTH SIDES) 5”...
  • Page 6 Pre-Delivery Instructions Martinique ® NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions. 34” (86cm) 31” FRONT VIEW (79cm) 6.5” 16.5cm ELECTRICAL 64.9” (165cm) 2.5” 5” DOOR (6.4cm) CUTOUT (13cm) SPA DRAIN ELECTRICAL AIR VENTS CUTOUT DO NOT BLOCK OVERALL...
  • Page 7 Kauai ® NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions. 29.5” FRONT VIEW (75 cm) 26” (66 cm) 6.5” 6.5” (16.5cm) DOOR Electrical 51.25” Electrical (130cm) Cutout Cutout Spa Drain Air Vents Do Not Block OVERALL 84”...
  • Page 8: Electrical Requirements

    Pre-Delivery Instructions ELECTRICAL REQUIREMENTS To ensure you will have an opportunity to use your spa soon after delivery, it is very important that the required electrical service has been installed. Unless otherwise stipulated by your dealer, THIS IS YOUR RESPONSIBILITY. IMPORTANT: All electrical circuits must be installed by a qualified, licensed electrician.
  • Page 9: Volt Permanently Connected

    PARADISE SERIES 230 Volt Permanently Connected WARNING! THE EXACT PHYSICAL LOCATION OF THE TERMINALS ON THE GFCI BREAKER WILL VARY BETWEEN MANUFACTURERS. CONNECTING THE HOT WIRE TO THE NEUTRAL TERMINAL WILL CAUSE IRREVERSIBLE DAMAGE TO THE CONTROL BOX. ** Refer to NEC 250-122 (table) ** Refer to NEC 250-122 (table) NOTE: The wire connections to GFCI breakers are for reference only.
  • Page 10 Pre-Delivery Instructions SERVICES AVAILABLE FROM YOUR CALDERA SPA DEALER ® SERVICE COST Pre-Delivery site inspection Deliver spa to installation site _____________ Unwrap spa and haul away packaging material _____________ Set up spa _____________ ® Fill the spa with water and add @ease SmartChlor and mineral cartridges _____________...
  • Page 11 ADDITIONAL PRODUCTS AVAILABLE FROM YOUR CALDERA SPA DEALER - CONTINUED • Retractable cover system with clearance requirements: ProLift ® - 14” Clearance Required ProLift II - 30” Clearance Required ProLift III - 30” Clearance Required ProLift IV - 18” Clearance Required Page 11...
  • Page 12 PARADISE SPA SPECIFICATIONS 230 volt, 30 or 50 amp 7'5" Paradise 1,020 5,365 lbs. per 36" square 4,000 Single phase GFCI Makena ® gallons lbs. lbs. square 7'5" feet protected circuit foot 230 volt, 30 or 50 amp Paradise 7'5" 1,005 5,735 lbs.
