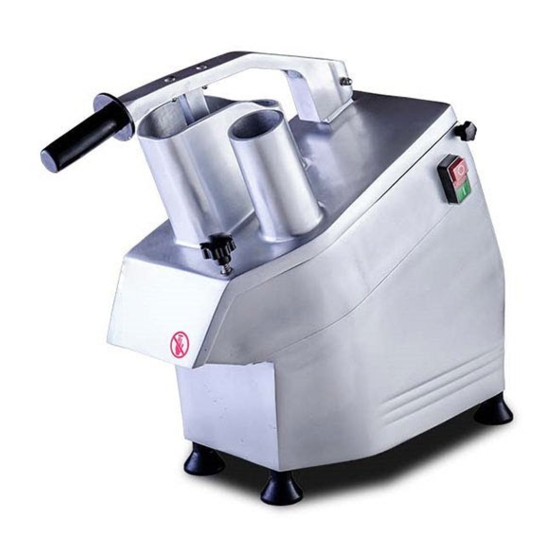

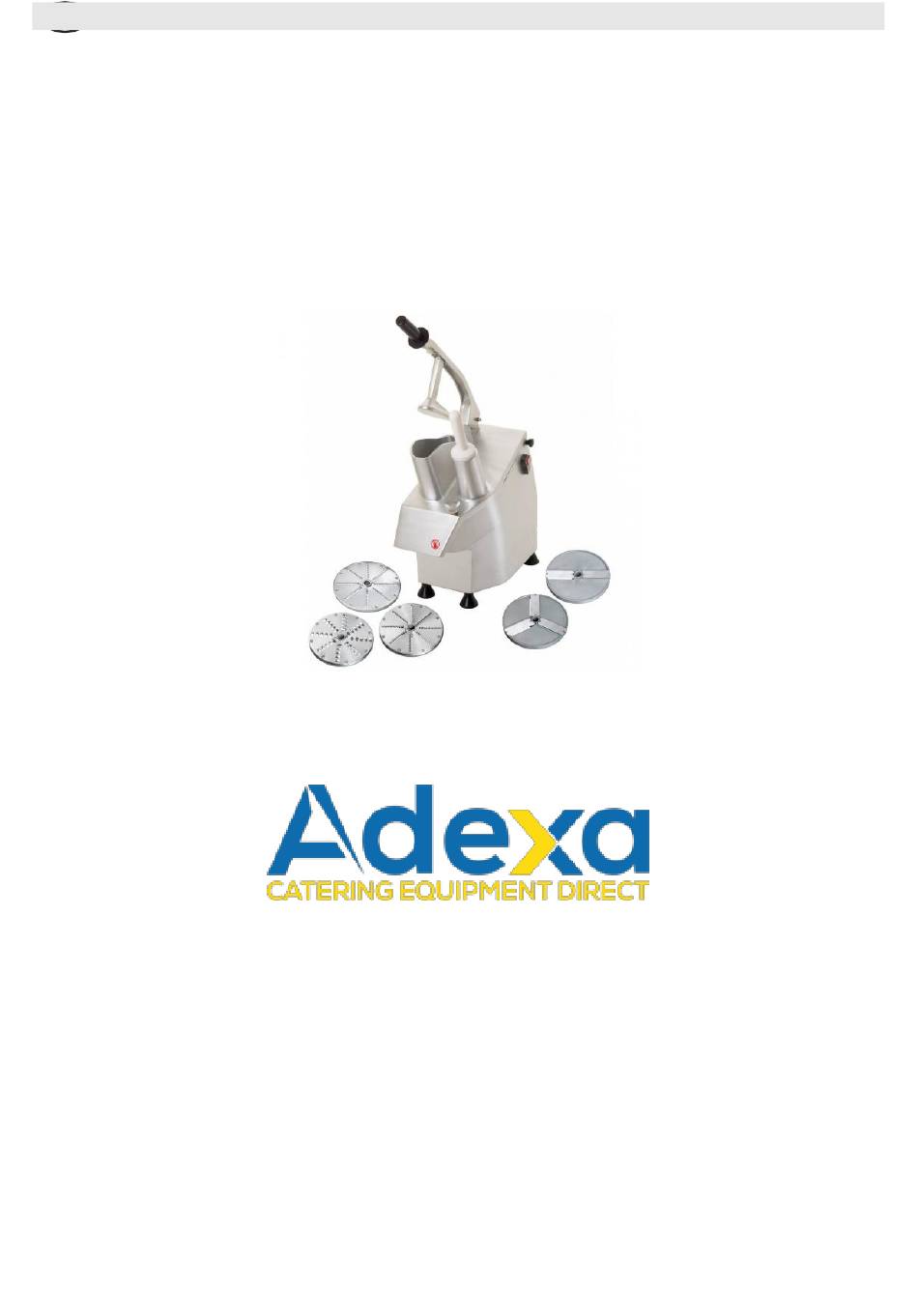

- Page 1 VEGETABLE CUTTER INSTRUCTION MANUAL Model HLC300 ADEXA DIRECT LIMITED GROUND FLOOR UNIT 1 214 PURLEY WAY CROYDON CR0 4XG LONDON UNITED KINGDOM +44 1483 931040 service@adexa.co.uk www.adexa.co.uk...
-
Page 2: Safety Tips
Safety Tips • Position on a flat, stable surface. • A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product. • Consult Local and National Standards to comply with the following: •... -
Page 3: Pack Contents
Pack Contents The following is included: • Vegetable Cutter • Cleaning brush • Food pusher • Set of 5 cutting disks • Deflector • Instruction manual Should you find any damage as a result of transit, please contact us immediately. -
Page 4: Operation
Operation Location of Controls... - Page 5 Cutting Vegetables Note: Before using the first time clean all parts that come into contact with food with warm soapy water. Connect the appliance to the mains power supply. Place the vegetables in the required food chute. Lower the handle or place the food pusher in the chute. WARNING: Do not use anything other than the food pusher supplied with the appliance to press vegetables against the blades.
- Page 6 Selecting a Cutting Disc The vegetable cutter utilises various discs for different tasks. Disc Disc 4mm Grating Disc 2.5mm Julienne Disc Suitable for thin slicing Suitable for medium/coarse grating 7mm Grating Disc 4mm Julienne Disc Suitable for coarse grating Suitable for medium slicing 3mm Grating Disc Suitable for medium grating 8 x 8mm French Fries Disc...
-
Page 7: Cleaning, Care And Maintenance
Changing the Cutting Disc WARNING: The blades on the cutting disc are sharp. Take care to avoid the edges when changing discs. Disconnect the appliance from the mains power supply. Turn the lid release knob anti-clockwise. Remove the food pusher (if inserted) and carefully lift the lid. Turn the disc anti-clockwise and lift it away from the appliance. -
Page 8: Troubleshooting
Technical Specifications Dimensions Model Voltage Power Current Cutting Disc RPM Weight h x w x d mm HLC300 230V 50Hz 550W 2.4A 470 x 220 x 490 22.5kg Noise level < 60 dB... -
Page 9: Electrical Wiring
Electrical Wiring This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard. The plug is to be connected to a suitable mains socket. This appliance is wired as follows: • Live wire (coloured brown) to terminal marked L •... - Page 10 SPARE PART LIST...
- Page 11 Compliance The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process.
