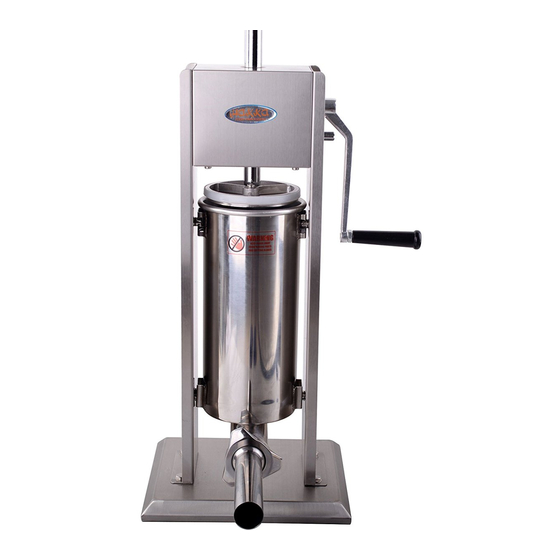

- Page 1 SAUSAGE STUFFER/FILLER OPERATETION INSTRUCTIONS Please read the instruction throughly before using the equipments TECHNICAL PARAMETER SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 2: Table Of Contents
CONTENT CHAPTER 1 COMPANY BRIEF INTRODUCTION………………….………………….P CHAPTER 2 PRODUCTION INTRODUCTION………………………………………….P CHAPTER 3 OPERATION AND THCLEANING…………………………………………P 3.1 OPERATION………………………………………………………………………………….P 3.2 Double speed Rack sausage stuffer/filler Vertical……………………………P 3.3 Double speed Rack sausage stuffer/filler Horizontal…………………….P 3.4 Single speed Threaded Rod sausage stuffer/filler vertical…………….P CHAPTER 4 MAINTENANCE AND STORAGE…………………………………………P CHAPTER 5 PRODUCTS EXPLODED VIEW.……………………………………………P 5.1 Technical Parameter…………………………………………………………………...P 5.2 Rack Sauage Stuffer/Filler Horizontal Diagram…………………………….P... -
Page 3: Chapter 2 Production Introduction

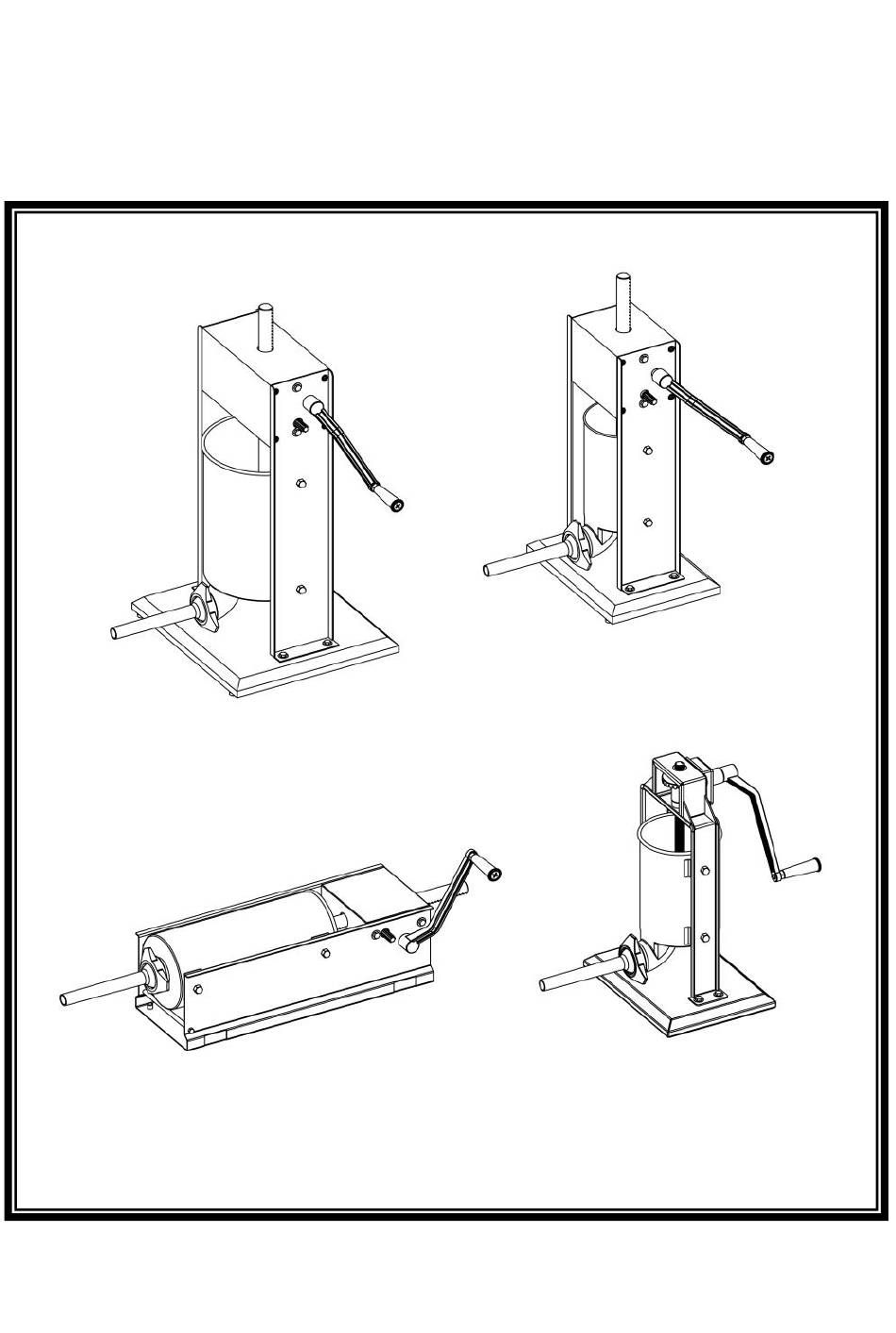

CHAPTER 2 PRODUCTION INTRODUCTION Making delicious sausages with our stuffer /filler Enjoy Happy and fun Rack type sausage stuffer/filler Horizontal and vertical has a new gearing system, The machines have gear reduction drive with two speeds,which enables user to release the plunger for quick and easy-re-filling. It is a machine ideal for sausage maker or restaurant who wants to make delicous sausage stuffer . - Page 4 WHEN REASSEMBLE THE MACHINE,DO NOT PUT CYLINDER TO OPPOSITELY POSITION FRONT VIEW BACK VIEW SIDE VIEW TECHNICAL PARAMETER SUBJECT TO CHANGE WITHOUT NOTICE.
- Page 5 CHAPTER 3 OPERATION AND THE CLEANING Improper of this equipment can result in damage. Please read the instruction throughly before using the equipments for safety 3.1 OPERATION Please clean this new equipment throughly before using for hygiene , Clean all parts that contact food directly like the cylinder nozzle plunger etc.
-
Page 6: Double Speed Rack Sausage Stuffer/Filler Horizontal
Double speed Rack sausage stuffer/ filler Horizontal 3.4.Single speed Threaded Rod sausage stuffer/filler vertical TECHNICAL PARAMETER SUBJECT TO CHANGE WITHOUT NOTICE... -
Page 7: Chapter 4 Maintenance And Storage
CHAPTER 4 MAINTENANCE AND STORAGE Maintenance: 1) Strictly according to the instructions to operate the equipment. will greatly prolong its service life, THE MANUFACTURER SHOULD NOT BE RESPONSIBLE FOR THE DAMAGE WHICH CAUSED BY IMPROPER OPERATION 2) It is recommened to add food grade lubrication oil to the rack and gear system every six months , but case-by- case basis , depending on how much you use the machine 3) It is recommened to replace gasket every six months. -
Page 8: Chapter 5 Products Exploded View
CHAPTER 5 PRODUCTS EXPLODED VIEW 5.1 Technical Parameter Item Model Name Volume(L)(LBS) Cylinder(Dia*L)mm Weight(kg) Size(mm) φ140*200 812000 SV-3 300*340*570 φ140*320 812001 SV-5 300*340*690 Full Stainless steel φ140*460 812002 SV-7 sausage 300*340*830 φ219*270 812010 SV-10 stuffer/filler 300*330*580 vertical φ219*320 812011 SV-12 370*300*630 φ219*400 812012... -
Page 9: Rack Sauage Stuffer/Filler Horizontal Diagram
5.2 Rack Sauage Stuffer/Filler Horizontal Diagram Name Quantity Name Quantity S/S Shelf Handcrank Rubber Mat S/S crossing screw Inner hexagram screw Gear seat Domed nut Rack S/S cylinder Gasket nozzle S/S Crossing screw Trefoil nut(locking nut) Plunger Gear cover Spring Inner hexagram screw Exhaust pin Gear... -
Page 10: Rack Sauage Stuffer/Filler Vertical Diagram
5.3 Rack Sauage Stuffer/Filler Vertical Diagram Name Quantity Name Quantity Left Side shelf S/S crossing screw Gear Inner hexagram boit Gear Shaft Smaill S/S hexagram nut Handcrank Nozzle Gear shaft Big Trefoil Nut(locking nut) Gear seat Bottom plate Cover lower S/S hexaram nut Plunger Right side shelf... -
Page 11: Thread Rod Sausage Stuffer Vertical Diagram
5.4 Thread Rod sausage stuffer Vertical Diagram Name Quantity Name Quantity Handcrank Support Frame umbrella gear Small umbrella gear Big S/S Inner hexagram screw Thread rod S/S Cylinder S/S Crossing bolt Nozzle plunger Trefoil nut (locking nut) Spring S/S Inner hexagram screw Exhaust pin Bottom plate Gasket... - Page 12 TECHNICAL PARAMETER SUBJECT TO CHANGE WITHOUT NOTICE...
