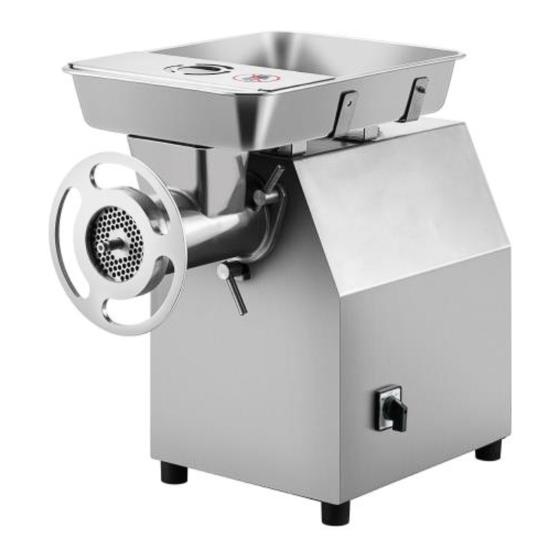

Adexa C32AT User Manual

I.Introduction
All the parts touched with food are good stainless steel,it was designed
according to the safety standards of Europe.With elegant
appearance,compact structure, it is suitable for restaurant,meet processing
factory,school and any other food service industry.
MMM 32 are worm rotation, MMM 32P is belt and chain rotation.
Ⅱ.Technical Parameters
Rated Rated
Model Volts Freq
(V) (Hz)
C32AT 230 50
Ⅲ. Usage and Maintenance
1、Check the power makes sure the power is accordance with the rated
voltage and the plug is equipped with a groud line.
2、Before operation ,take apart all the part of the head, clean it one by
one , then assemble the head again and tighten the handle.Attention
that the front nut should not be too tight.
3、Weed the skin and bone before grind the meat ,and then cut it into
slice.
4、Swith on；put the raw meat into the filler after the motor in normal
conditon. Press the raw meat with a stick when it's necessary.
5. Check the machine as follows if the meat moves very slow or the meat
become mushily:
a. the carving knife fixed the board improper because of the front nut too
looseness, adjust the knife.
b. Dredge the outlet of the meat board when it is blocked.
c. The meat knife becomes blunt, mill it or change a new one.
6. Keep the machine clean; wash the grinding parts and add some edible
Motor
Efficiency G.W
Power
(kg/h) (kg)
(Kw)
690x340x58
1.5 320 63
oil after using
7. The machine should not continuous work.After working half an hour,
the machine should stop working about thirty minutes.Then it should go on
working.Follow the rules can increase the life of the motor.
Notice: 1. Attention to avoid the children playing the machine
2. Do not open the cover board and back plate when the machine
working
3. Do not swash the machine
4. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in order to
avoid a hazard.
Size
5. This appliance is not intended for use by persons (including children)
(mm)
with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
0
6. Correct disposal of this product.
Ⅳ.Grinding Parts
