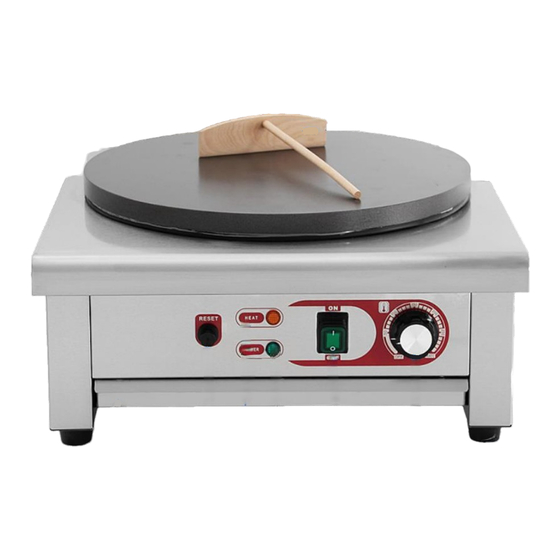

- Page 1 ELECTRIC CREPE MAKER Instruction Manual Please read this manual carefully before use to understand the correct use of the function...
-
Page 2: Specification
Instruction Manual The Electric Crepe Maker design combines the advantages of stylish design, efficient construction, ease of operation and simple maintenance. The Crepe maker temperature can be easily adjusted to suit cooking requirements, and, while mainly used for crepe. WARNING: Any modifications or incorrect installation, unauthorized adjustments or maintenance by unauthorized personnel may result in property loss or injury. - Page 3 Instruction Manual Mainly part ⑨ 1. Drip Tray ⑧ 2. Temperature Limiter 3. Heat Indicator 4. Power Indicator 5. On&Off Power Switch (EC-1N without the device) 6. Thermostat 7. Rubber Feet 8. Heavy Duty Cast Iron Plate with Teflon Coating 9.
-
Page 4: Cleaning And Maintenance
Instruction Manual Cleaning and Maintenance ✓ Disconnect machine before cleaning and allow to cool. ✓ Unplug the unit ✓ Use only a damp towel with non-corrosive cleaner. Do not immerse or flush with water. ✓ Wipe down outside surface to remove any soil. ✓... -
Page 5: Troubleshooting
Instruction Manual Trouble Shooting Problem Caused Solution ⚫ Indicator light will not turn on and Plug not properly in-serted Plug unit in ⚫ unit will not heat On&Off power switch broken Replace power switch ⚫ Heating indicator is not on.The Electric heater tubes is not Tighten both sides of electric heater temperature is not increasing... - Page 6 Instruction Manual Explosive View: ITEM NAME QTY/PCS COOKING PLATE TEMPER LIMITER COVER HEATER HEATER'S COVER FIXED BOARD TEMPER LIMITER MACHINE'S BODY RUBBER FEET POWER INDICATOR 10 THERMOSTAT 11 THERMOSTAT DIAL 12 THERMOSTAT KNOB 13 HEAT INDICATOR 14 OIL CONTAINER 15 TERMINAL BLOCK 16 CABLE LOCK 17 POWER CABLE Circuit Diagram...
- Page 7 Instruction Manual Explosive View: EC2 ITEM NAME QTY/PCS COOKING PLATE TEMPER LIMITER COVER HEATER HEATER'S COVER FIXED BOARD TEMPER LIMITER MACHINE'S BODY RUBBER FEET POWER INDICATOR 10 THERMOSTAT 11 THERMOSTAT DIAL 12 THERMOSTAT KNOB 13 HEAT INDICATOR 14 OIL CONTAINER 15 TERMINAL BLOCK 16 CABLE LOCK 17 POWER CABLE...
- Page 8 Instruction Manual Explosive View: EC1 ITEM NAME QTY/PCS COOKING PLATE TEMPER LIMITER COVER HEATER HEATER'S COVER Insulation plate TEMPER LIMITER MACHINE'S BODY RUBBER FEET POWER INDICATOR THERMOSTAT THERMOSTAT DIAL THERMOSTAT KNOB HEAT INDICATOR TERMINAL BLOCK CABLE LOCK POWER CABLE Bottom Plate...
