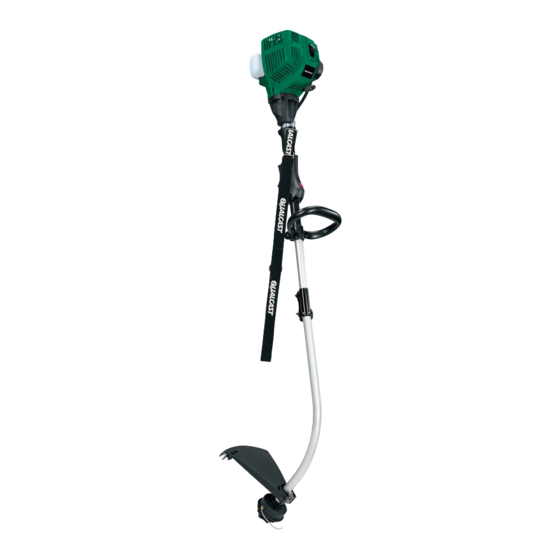

Qualcast HQ-PT 3043 Operating Instructions Manual

Petrol grass trimmer
Hide thumbs Also See for HQ-PT 3043:
Table of Contents

Advertisement

Quick Links

Download this manual
30cc
Petrol Grass Trimmer
Original Operating Instructions
EASY PULL
STARTING SYSTEM
WITH ROTOCHOKE.
Quick and easy to start.
43CM GRASS
TRIMMING CUTTING WIDTH.
Large diameter for fast
and easy trimming.
POWERFUL 30CC
2 STROKE PETROL ENGINE.
Ideal for medium
to large gardens.
TWIN-LINE
BUMP-FEED SPOOL.
Automatic line feed for
continuous trimming.
ADJUSTABLE
FRONT HANDLE
AND CARRY STRAP .
For greater control and comfort.
AFTER SALES SUPPORT
UK / IRELAND HELPLINE NO 0151 6491500
REP . IRELAND HELPLINE NO 1890 946244
WEB SUPPORT
MODEL NUMBER: HQ-PT 3043
HOMEBASE ARTICLE NUMBER: 346140
www.einhell-uk.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HQ-PT 3043 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Qualcast HQ-PT 3043

Summary of Contents for Qualcast HQ-PT 3043

  • Page 1 ADJUSTABLE FRONT HANDLE AND CARRY STRAP . For greater control and comfort. AFTER SALES SUPPORT UK / IRELAND HELPLINE NO 0151 6491500 REP . IRELAND HELPLINE NO 1890 946244 WEB SUPPORT www.einhell-uk.co.uk MODEL NUMBER: HQ-PT 3043 HOMEBASE ARTICLE NUMBER: 346140...
  • Page 2 Contents Safety Guide Assembly and Parts list Getting Started Operation Trouble Shooting Declaration of Conformity Guarantee Certificate Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
  • Page 3 Explanation of the information signs on the equipment: 1. Warning! 2. Read the instructions for use before operating the equipment. 3. Wear safety goggles, a face guard and ear defenders. 4. Wear sturdy, non-slip footwear. 5. Wear safety gloves. 6. Protect the equipment from rain and damp. 7.

  • Page 4: Safety Information

    Safety Information Handling 1. Wear close fitting, tough work clothing that 1. Read the instructions with due care. Familiarize will provide protection, such as long slacks yourself with the settings and proper operation or trousers, protective footware, heavy duty of the machine. work gloves, hard hat, a safety face shield, 2.

  • Page 5: Additional Instructions

    bystanders and also damage equipment. 8. DO NOT OPERATE UNIT FOR PROLONGED If an object is hit accidentally, turn the PERIODS. Rest periodically. engine off immediately and examine 9. DO NOT OPERATE UNIT WHILE UNDER THE the equipment. Never operate unit with INFLUENCE OF ALCOHOL OR DRUGS.
  • Page 6 Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
  • Page 7 Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
  • Page 8 Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
  • Page 9 Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
  • Page 10 Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
  • Page 11 Helpline No. UK 0151 649 1500 / IRE 189 094 6244...

  • Page 12: Proper Use

    2. Machine description and items Important! When using the equipment, safety supplied (Fig. A – C) precautions must be observed to avoid injuries and damage.Please read the 1. Cutting head complete operating instructions and safety 2. Cutting line regulations with due care. Keep this manual 3.

  • Page 13: Technical Data

    4. Technical data the lower long handle (Fig. E/Item D) latches securely in the connecting piece. Now retighten the star grip screw (Fig. D/Item Engine type: 2-stroke engine, air-cooled, A). To dismantle, proceed in reverse order. chrome cylinder Engine power (max.): 0.76 kW/1.03 hp 5.1.2 Fitting the guard hood (Fig.

  • Page 14: Operation

    Important: Never allow the starter cable 5.3 Fuel and oil Recommended fuels to snap back. This may damage the Use only a mixture of normal unleaded petrol machine. and special 2-stroke engine oil. Mix the fuel Important: The cutting tool starts to operate mixture as indicated on the fuel mixing table.
  • Page 15 6.3 Switching off the engine TRIMMING / MOWING Emergency Stop procedure: Swing the trimmer in a side to side motion. If it becomes necessary to stop the machine Always keep the cutting head parallel to the immediately, set the ON/OFF switch to “Stop” ground.

  • Page 16: Cleaning, Maintenance, Storage, Transport And Ordering Of Spare Parts

    WARNING: Do not remove any objects from (Fig. N4). footpaths, etc. using the trimmer. • Wind the line with tension in a clockwise The trimmer is a powerful tool and can throw direction as shown in the illustration (Fig. small stones and other objects a distance N5), with the two halves being separated of 15 meters or more, causing injuries and by the spool divider.
  • Page 17 Check the spark plug for dirt and grime Setting the throttle cable: after 50 hours of operation and if necessary If the maximum speed of the machine clean it with a copper wire brush. Thereafter falls over time and you have ruled our service the spark plug after every 50 hours of all the other causes listed in section 9 operation.

  • Page 18: Disposal And Recycling

    HELPLINE 0151 649 1500). ordering replacement parts: 3. When the fuel has been drained, start the • Type of model/Machine (HQ-PT 3043) engine. • Article number of the machine (34.018.72) 4. Allow the engine to run at idling speed until it •...

  • Page 19: Troubleshooting

    9. Troubleshooting FAULT POSSIBLE CAUSES TROUBLESHOOTING The machine does not start. - Correct starting - Follow the instructions procedure not followed. for starting. - Sooted or damp - Clean the spark plug or spark plug. replace it with a new one. - Incorrect - Contact Helpline: carburettor setting.
  • Page 20 Please adhere to the following maintenance periods in order to ensure a failure-free operation. Important! Fill in engine oil and fuel before starting up the engine for the first time. After an After an After an After an Before operating operating operating operating...
  • Page 21 Notes Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
  • Page 22 The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH. Helpline No. UK 0151 649 1500 / IRE 189 094 6244...

  • Page 23: Product Guarantee

    PRODUCT GUARANTEE This product is guaranteed against manufacturing defects for a period of This product is guaranteed for twenty four months from the date of original purchase. Any defects that arises due to faulty materials or workmanship will either be replaced, refunded or repaired free of charge where possible during this period by the dealer from whom you purchased the unit.

  • Page 24: After Sales Support

    AFTER SALES SUPPORT UK / IRELAND HELPLINE NO 0151 6491500 REP . IRELAND HELPLINE NO 1890 946244 WEB SUPPORT www.einhell-uk.co.uk MODEL NUMBER: HQ-PT 3043 HOMEBASE ARTICLE NUMBER: 346140...
