Summary of Contents for Qualcast HQ-CG 3.6
- Page 1 HQ-CG 3,6; EX; UK Artikel-Nr.: 3410439 Cordless Grass- and Bush Shear Ident-Nr.: 11010...

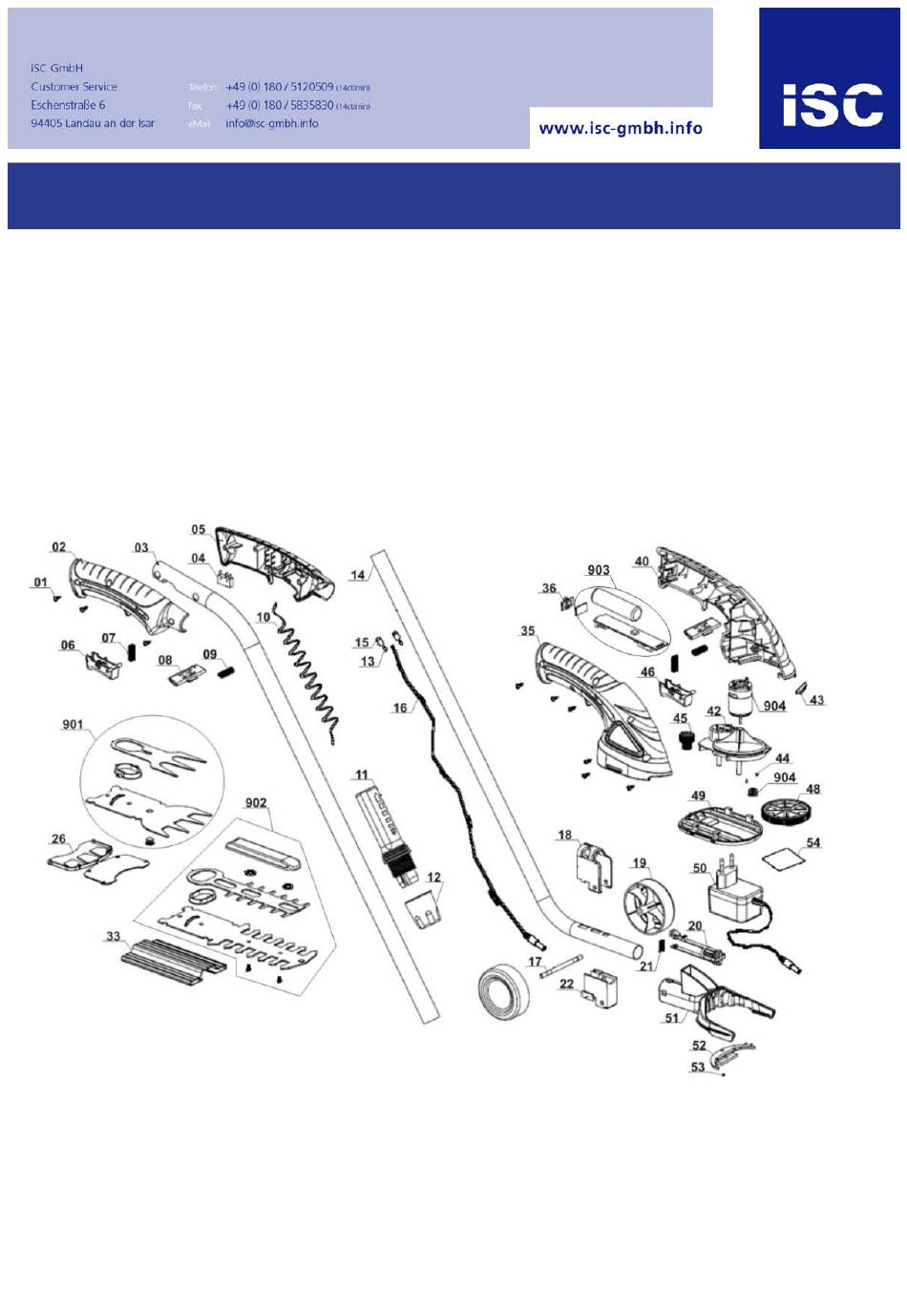

- Page 2 Komponenten / Ersatzteile Position Artikel-Nr. Beschreibung 341044001011 self-tapping screw ST2.9*13 3,2 x 13 341044001014 switch für Führungsholm 341044001027 wheel shaft 341044001029 wheel 341044001036 guard for grass shear blade für Grasschneidemesser 341044001043 guard for trimming blade für Strauchmesser 341044001055 driving gear 341044001058 gear 341044001059...
- Page 3 Little fuss and time saving 1.3AH LITHIUM ION INTEGRATED BATTERY Holds charge when not in use AFTER SALES SUPPORT UK / IRELAND HELPLINE NO 0151 6491500 REP . IRELAND HELPLINE NO 1890 946244 www.einhell-uk.co.uk WEB SUPPORT MODEL NUMBER: HQ-CG 3.6 HOMEBASE ARTICLE NUMBER: 677522...
- Page 4 Contents Safety Guide Product Diagrams Technical Data Assembly Declaration of Conformity Product Guarantee Important! Read and follow the operating instructions and safety information before using for the first time. Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
-
Page 5: Workplace Safety
General safety regulations for electrically grounded tools. Unmodified plugs and matching socket outlets reduce electric tools the risk of an electric shock. This equipment is not designed to be used • Avoid touching grounded surfaces, by people (including children) with limited such as those of pipes/tubes, heaters, physical, sensory or mental capacities or cookers and refrigerators. - Page 6 tool and the particular application) reduces • When not in use, store electric tools the risk of sustaining injury. out of the reach of children. Do not • Make sure that the tool cannot start up allow those persons to use this tool who accidentally.
-
Page 7: Additional Safety Instructions
• Use only the correct batteries in the • Protect the battery charger and its cable electric tools. The use of other batteries from damage and sharp edges. Have may result in injuries and a fire risk. damaged cables repaired without delay •... -
Page 8: Safety Instructions For Grass Trimmer
• If the cutting blades get jammed while cutting, turn off the device (release the ON button) and remove the object in question (thick branch, foreign body) with a suitable blunt aid. Never remove any such objects with your fingers as the pre-tensioned blade can cause serious injuries through cutting. - Page 9 Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
- Page 10 Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
- Page 11 Explanation of the warning signs on the machine (Figure 10) 1. Important! Read the operating instructions and follow the warnings and safety instructions. 2. Keep all other persons away from the danger zone. 3. Caution! The cutter blades continue to run after the motor is switched off. Wait for the blades to come to a standstill.
-
Page 12: Technical Data
2. Layout (Fig. 1/2) 4. Technical data 1. Grass cutter blade Speed n 950 rpm 2. Wheels Cutting width of the grass cutter: 70 mm 3. Safety lock-off Cutting width of the shrub cutters: 100 mm 4. ON button 5. Telescopic long handle Cutting thickness of the shrub cutters: 8 mm 6. -
Page 13: Operation
slightly during the charging operation. circumstances are you to use the shrub This is normal. cutter with the telescopic long handle fitted. • As soon as battery pack is fully charged, the red LED (Fig. 5/Item 1) extinguishes. 6. Operation If the rechargeable battery fails to charge, check The area to be cut must first be cleared of whether there is voltage at the socket outlet. -
Page 14: Cleaning, Maintenance And Ordering Of Spare Parts
(Fig. 7/Item 1) and Please quote the following data when the eccentric mount (Fig. 9/Item 1) match up. ordering replacement parts: • Type of machine (HQ-CG 3.6) 7. Cleaning, maintenance and • Article number of the machine 34.104.39 ordering of spare parts •... - Page 15 Disposal For EU countries only Never place any electric tools in your household refuse. To comply with European Directive 2002/96/ EC concerning old electric and electronic equipment and its implementation in national laws, old electric tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g.
- Page 16 Helpline No. UK 0151 649 1500 / IRE 189 094 6244...
-
Page 17: Product Guarantee
PRODUCT GUARANTEE This product is guaranteed against manufacturing defects for a period of This product is guaranteed for twenty four months from the date of original purchase. Any defects that arises due to faulty materials or workmanship will either be replaced, refunded or repaired free of charge where possible during this period by the dealer from whom you purchased the unit. -
Page 18: After Sales Support
AFTER SALES SUPPORT UK / IRELAND HELPLINE NO 0151 6491500 REP . IRELAND HELPLINE NO 1890 946244 WEB SUPPORT www.einhell-uk.co.uk MODEL NUMBER: HQ-CG 3.6 HOMEBASE ARTICLE NUMBER: 677522...
