Westell Boxer BXM3019-10HE Manual

R
Outdoor Cabinet with -48VDC 1,800 Watt Heat Exchanger
CONTENTS
1. GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4. MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5. SERVICE & REPAIRS
6. CUSTOMER & TECHNICAL SERVICES
7. WARRANTY & RETURNS
8. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . .
9. APPENDIX A - Product Views
1.

GENERAL

1.1 Document Purpose
This document provides general, installation, and specifica­
tion information for the Westellr Boxert BXM3019-10HE
Outdoor Cabinet with Heat Exchanger (shown in Figure 1).
This product is designed to provide Network equipment
protection in outdoor environments. The intended audience
for this document is engineering, operations, and installation
personnel of MSO, Telco, and utility companies. See Table 2
for product ordering information and available options, as well
as information on the companion but optional battery box or
skirt that can be mounted under the Boxer cabinet.
- NOTE -
Hereafter, the BXM3019-10HE 30-RU Boxer cabinet may be re­
ferred to as the "Boxer-30" or "cabinet."
1.2 Document Status
Whenever this practice is updated, the reason will be stated in
this paragraph. The BXM3019-10HE heat exchanger capacity
is corrected to reflect 1,800 watts instead of 1,000 watts.
1.3 Product Purpose and Description
Boxer-30 is an actively-cooled NEMA 4 outdoor cabinet that
can house and protect a wide range of electronic equipment.
Up to 30 vertical RUs (52.5") of 19-inch wide internal rack
space is available to house Network equipment such as (but not
limited to) multiplexers, copper bonding solutions, Ethernet
switches and media converters, xDSL boxes, and DS3 hand-
offs. Protectively mounted on the Boxer front door, separate
from the interior rack space, is a heat exchanger.
Boxer-30 supports rapid equipment installation and wiring
through the use of adjustable 19" rack channels. An access pan­
el is located at the rear of Boxer-30 to allow easy access to the
rear of the installed equipment. To ensure easy access for input
and out cabling, Boxer-30 includes ample and various-sized
conduit knock-outs.
E
2016 Westell, Inc. All rights reserved.
Westellr is a registered trademark of and Boxert is a trademark of Westell, Inc.
Westell r Boxer t BXM3019-10HE
PAGE #
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
1
3
6
14
14
15
15
15
16

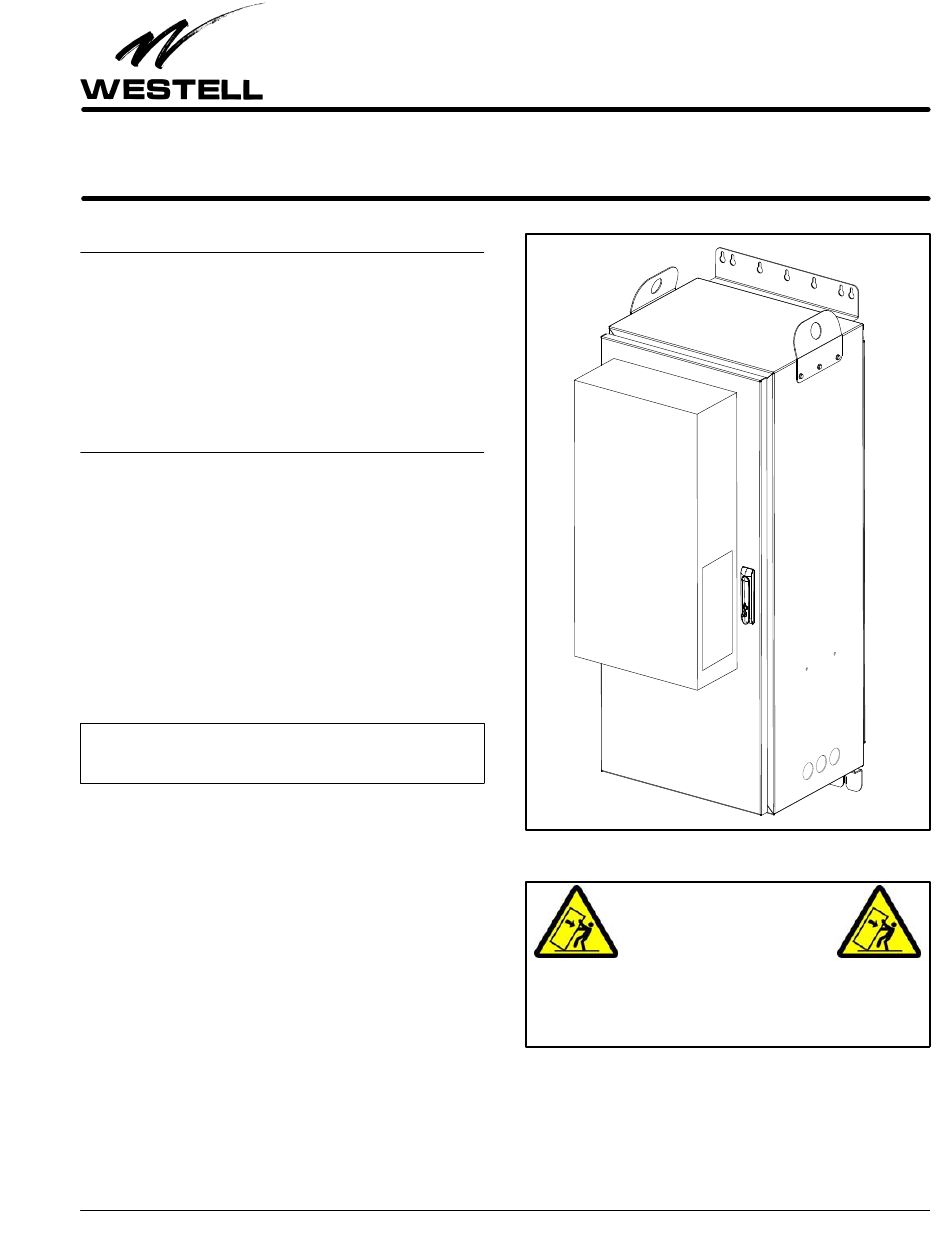

Figure 1. Isometric Closed View of Boxer-30 Cabinet
The Boxer-30 is a large, top-heavy
piece of telecommunications
infrastructure equipment:
care must be exercised when manipulating the Boxer-30 in the
warehouse or in the field to avoid accidental injury or product
damage. Westell recommends a minimum of two technicians
participate in all Boxer-30 handling, transportation and in­
stallation procedures.
1.4 Product Mounting
The Boxer-30 cabinet is typically mounted outdoors, above
ground, on a concrete pad. Top and bottom full-width mount­
ing brackets facilitate mounting the cabinet on an H-frame or
a wall. Concrete pad mounting is typically used in conjunction
with an optional Boxer battery box or skirt. All mounting hard­
Section BXM-301-10H-20A
Equipment Issue A
030-101901 Rev. A, August 2016
Ö Ö
Ö Ö Ö Ö
Ö Ö Ö Ö
Ö Ö
Top and bottom
mounting brackets
are detachable
- CAUTION-
Page 1 of 18
