Wireless glass break detector

Advertisement

Quick Links

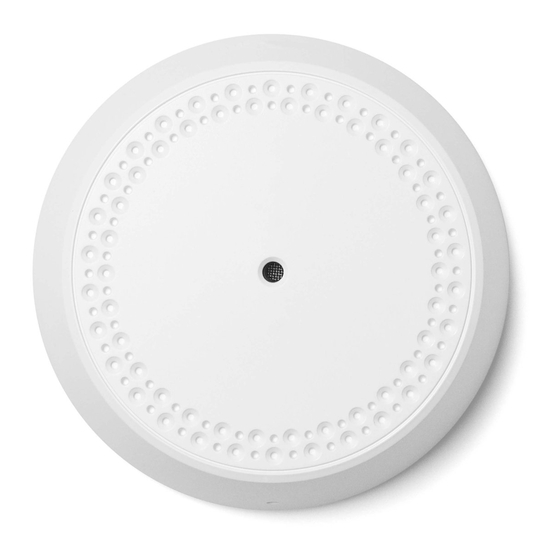

The PROSiXGB is a wireless glassbreak detector intended for use with Honeywell Home controls that support
PROSiX™ Series devices.

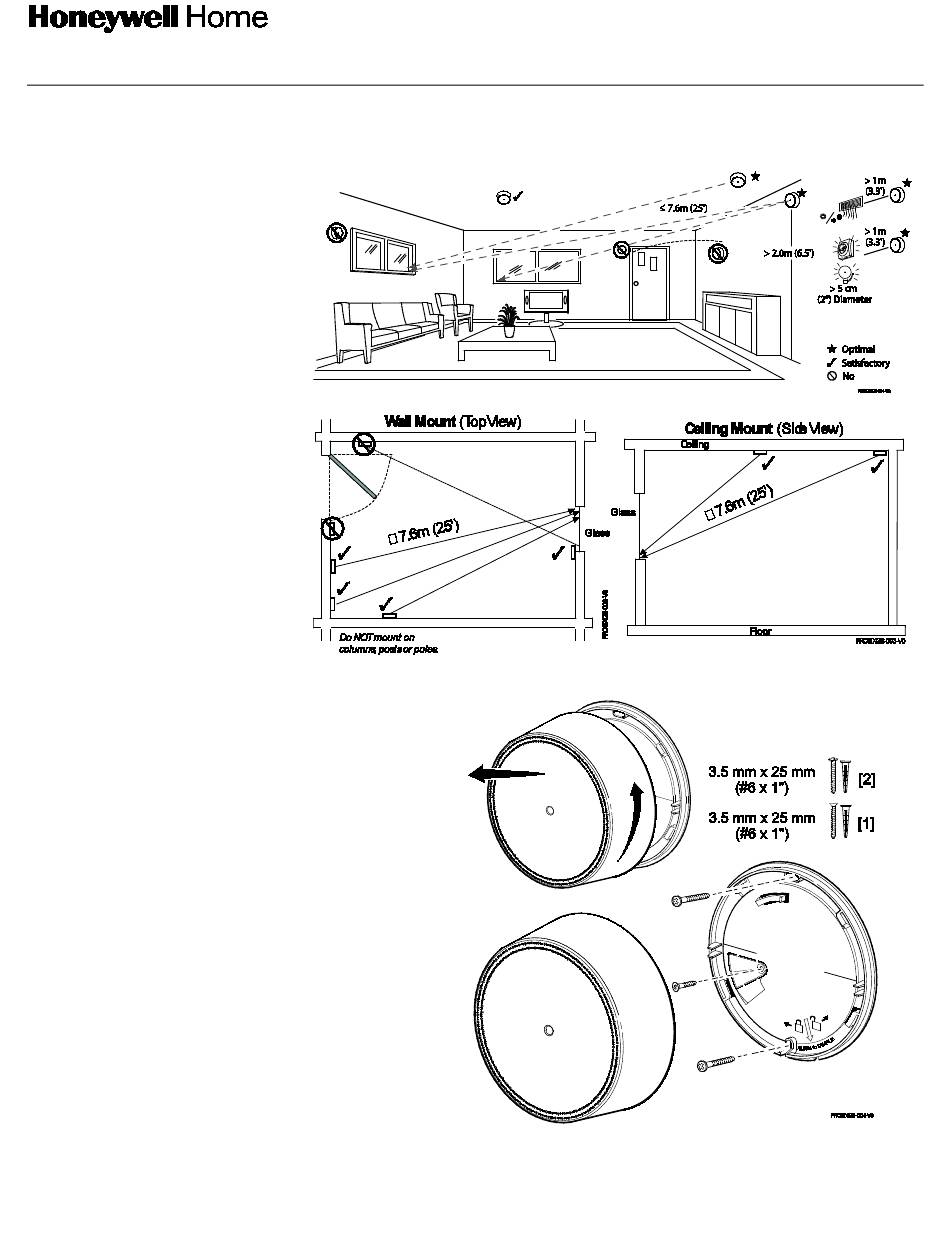

MOUNTING GUIDELINES

The PROSiXGB can be mounted
on the wall or on the ceiling:
• within 7.6 m (25 feet) of the
protected glass
• within clear view of the protected
glass
• at least 2 m (6.5 feet) from the floor
• at least 1 m (3.3 feet) from forced
air ducts
• at least 1 m (3.3 feet) from sirens or
bells greater than 5 cm (2 inches) in
diameter
• between the protected glass and
any heavy window coverings
• when heavy window coverings are
present, the detector can be
mounted on the window frame
• Avoid mounting the detector on the
same wall as the protected glass,
on free-standing posts or pillars, or
in rooms with noisy equipment (air
compressors, bells, power tools,
etc.), if this equipment is operated
when the detector is armed.
To remove the mounting bracket:
Turn the top of the detector 15 degrees counter-
clockwise and separate the mounting bracket.
NOTE: Before mounting the device permanently,
conduct a sensor test (see controller's
instructions) to verify adequate signal
strength and adjust the device location and
orientation as necessary.
The rear tamper plate MUST be mounted to a stud,
solid wood, or with a robust wall anchor.
Installation and Setup Guide
PROSiXGB
Wireless Glass Break Detector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROSiX Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Honeywell Home PROSiX Series

  • Page 1 PROSiXGB Wireless Glass Break Detector Installation and Setup Guide The PROSiXGB is a wireless glassbreak detector intended for use with Honeywell Home controls that support PROSiX™ Series devices. MOUNTING GUIDELINES The PROSiXGB can be mounted on the wall or on the ceiling: •...
  • Page 2 ENROLL Set the controller in Programming Mode and when prompted: 1. Remove the battery tab to activate the device and begin the enrollment process. 2. The Green [G1] LED flashes during enrollment (up to about 20 seconds*) The device sends its unique MAC ID (Serial Number) and Services information to the controller.
  • Page 3 PROSIXGB LEDS The detector has three LEDs which are visible when the unit is mounted. Green 1 [G1] LED indicates device enrollment and tamper status. The Red [R] and Green 2 [G2] LEDs provide information on detector status during Test Mode. The Green 2 LED indicates events and the Red LED indicates Alarms.
  • Page 4 For the latest warranty information, please go to: www.security.honeywellhome.com/warranty The Honeywell Home Trademark is used under license from Honeywell International Inc. This product is manufactured by Resideo Technologies, Inc. and its affiliates. 2 Corporate Center Drive, Suite 100 Ê800-25231B+Š...
