Honeywell Home PROSiXCOMBO Installation And Setup Manual

This device is intended for use with Honeywell Home control panels that support PROSiX series
devices. Before installing detectors, please thoroughly read these installation instructions and read
the Limitations of Fire Alarm Systems Insert (P/N 800-15144 5/13) and System Smoke Detectors
Application Guide (P/N SPAG9101 7/12) – www.resideo.com.

FEATURES

• Multi-Criteria Sensing: uses four sensing elements to react faster
while minimizing false alarms:
- Photoelectric smoke sensor detects airborne smoke particles
- Carbon Monoxide (CO) sensor detects smoldering fires
- Infrared (IR) sensor measures ambient light and flame signatures,
such as flame flicker
- Heat detection monitors for dangerous rise in temperature
• One Go / All Go: all smoke detectors in the system programmed
as one-go-all-go will sound on alarm.
• CO Detector End-of-Life reporting (detector needs replacing)
• Smoke detector maintenance reporting (detector needs cleaning)
• Low Battery Detection

ENROLLMENT

The PROSiXCOMBO has a unique MAC ID number. The heat, smoke, and CO are assigned to loops 1-3 respectively and are enrolled in separate
zones.
NOTE: Once enrolled, the device cannot be used with another system until it is removed from the current controller. See the 24-hour Enrollment
Deletion section below or the controller's instructions.

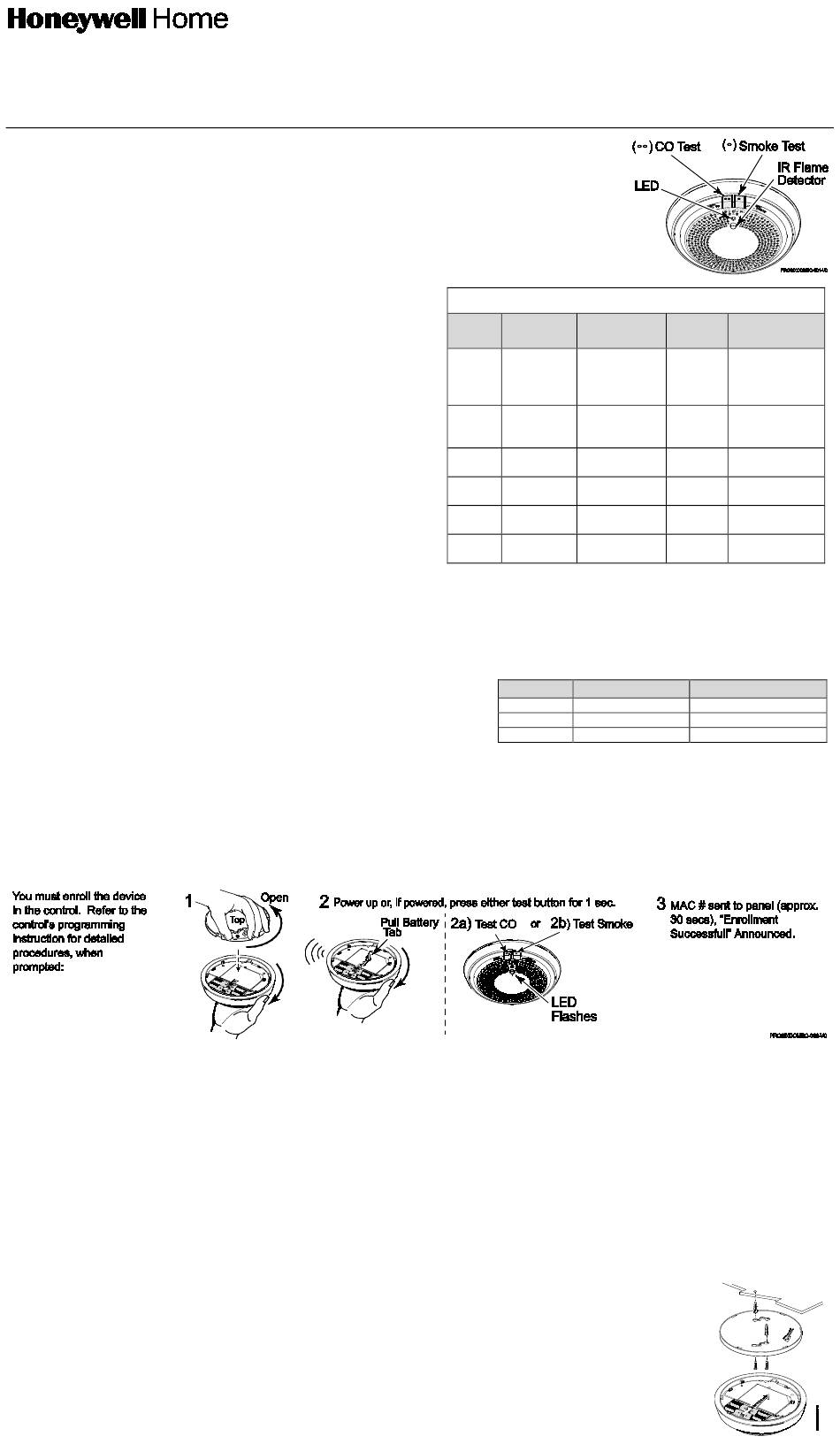

Enroll the Device Services (Smoke, Heat, CO)
1. Remove the detector from the base plate.
2. Put the control panel in Programming mode.
3. Pull the battery tab to activate enrollment process (be sure batteries are seated
properly to avoid a false low battery condition). If the battery tab has already been
removed and the unit is powered up, press either Test switch for less than 3
seconds to activate the enrollment process.
4. The device attempts enrollment (green LED flashes about 8 seconds). If successful, the green LED lights steady for 3 seconds and the device
announces successful enrollment.
If the LED does not light steady, enrollment failed. Retry by pressing either Test switch for less than 3 seconds.
All services (Smoke, Heat, and CO) are automatically enrolled in sequential (or next available) zone numbers with the following default attributes:
NOTE: Maintenance and CO End-of-Life are automatically enrolled for
the respective smoke and CO zones. Contact ID code E386 "Low Maintenance Smoke" is sent for the CO zone at End-of-Life and Contact ID code
E385 "High Maintenance Smoke" is sent for the Smoke Zone when dirty.
Supervision: Detector supervision is factory set for 1 minute and is not programmable.

24-Hour Enrollment Deletion

Use this procedure within 24 hours of initial enrollment to delete this device from the controller. This allows reenrollment in a specific controller in case
enrollment in that controller failed. This resets the device to factory default settings and removes the communication link data in the controller in which
it is enrolled.
1.
Press and hold both the Smoke and CO test switches simultaneously until the welcome message announces, then release.
2.
Wait for the green LED to flash rapidly.
3.
Press and hold both switches again for one second and release.
4.
LED blinks rapidly after 15 seconds, confirming deletion.

LANGUAGE SELECTION

1. Press and hold both the Smoke and CO test switches simultaneously for 5 seconds until Welcome message is announced, then release. The green
light flashes rapidly.
2. Press the Test button corresponding to the desired language:
English: Press the Smoke (•) test button
Spanish: Press the CO (••) test button

MOUNTING

After enrolling, verify adequate signal strength with the device in its intended mounting location. Adjust the device location and
orientation as necessary.
1. Using two supplied screws and anchors, mount the base.
2. Attach the smoke detector to the mounting base with a clockwise motion.
3.Test each detector as described in the Testing section.
4. Confirm all desired signals have been received by the Central Station.
NOTE: NFPA 72 recommends the installation of detectors only after completing construction or any other dust producing
activity.
NOTE: This device should not be located within 5 ft. (1.5 m) of any cooking appliance.
Combination Smoke/Carbon Monoxide (CO) Detector
w/Built-in Wireless Transmitter (features voice and 360
Installation and Setup Guide
Power Up
(Standby)
CO Alarm
Powered
degree viewable LED ring)
Table 1: Operation Modes
LED Windows
Status LED
MODE
(Side)
(Top)
Blink Green,
Dark
every 2 secs
Single Blink
Normal
Green every Dark
10 secs
Smoke Blink Red
Blink red
Alarm every 10 secs
Heat Blink Red
Blink red
Alarm every 10 secs
Blink Red
Blink blue
every 10 secs
Dark Dark
Down
Zone Device Type
Smoke Det. Smoke Detector
Heat Det. Heat Sensor
CO Det. Carbon Mono. Det.
PROSiXCOMBO
Speaker
Sounder
Voice welcome,
instructions after first
Silent
time power up or
after default
Silent Silent
Voice smoke
Temp-3
warning
Voice smoke
Temp-3
warning
Voice CO
Temp-4
warning
Silent Silent
Zone Response Type
Fire No Verification
Fire No Verification
Carbon Monoxide
