Honeywell Home PROSiXCOCN Installation And Setup Manual

Wireless carbon monoxide (co)
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
ATTENTION!
This device is intended for use with Honeywell Home PROSiX
series control panels. Before installing detectors, please
thoroughly read and follow these installation instructions.
NOTE: This document should be kept for future reference.
FEATURES
• 10-year life
• CO Detector End-of-Life reporting (detector needs replacing)
Carbon Monoxide detector maintenance reporting
•
• Low Battery Detection
• Multi-color
status LED
ENROLLMENT
1. Set the controller in Programming Mode and when prompted:
2. Remove the battery tabs to activate the device and begin the enrollment process.
3. The Green LED flashes rapidly during enrollment (up to about 20 seconds). The detector sends its unique MAC ID (Serial
Number) and Services information to the controller
*NOTE: Enrollment time varies depending on the signal strength between the device and the controller.
4. Enrollment is confirmed after a second trigger, the Green LED turns ON for 3 seconds, and the detector chirps.
5. If the detector is not successfully enrolled during the enrollment period, the LED turns off and the device powers down. Press
and release the tamper to retrigger the enrollment (the LED starts flashing fast again).
NOTE: Once enrolled in a system, the PROSiXCOCN cannot be used with another controller until it is removed from the current
controller. See the Controller's instructions for details.
24-HOUR ENROLLMENT DELETION AND DEFAULT
If the device is enrolled in a panel different than the intended panel, and you are unable to delete it from the unintended panel, reset
the device to factory default setting:
This procedure is available for 24 hours after enrollment with a panel and the device remains powered (battery installed).
1. Remove power from the detector.
2. Press the CO Test Button.
3. While holding the test button, insert the batteries. Continue holding the test button for 5 seconds and release.
4. The status LED should start blinking green rapidly to confirm its deleted enrollment.
Installation and Setup Guide
POWER UP
• Remove battery pull tab. Be sure batteries are seated properly
to avoid a low battery condition after 15 seconds
• Upon power up, Green LED Blinks every 2 secs / Sounder is
Silent.

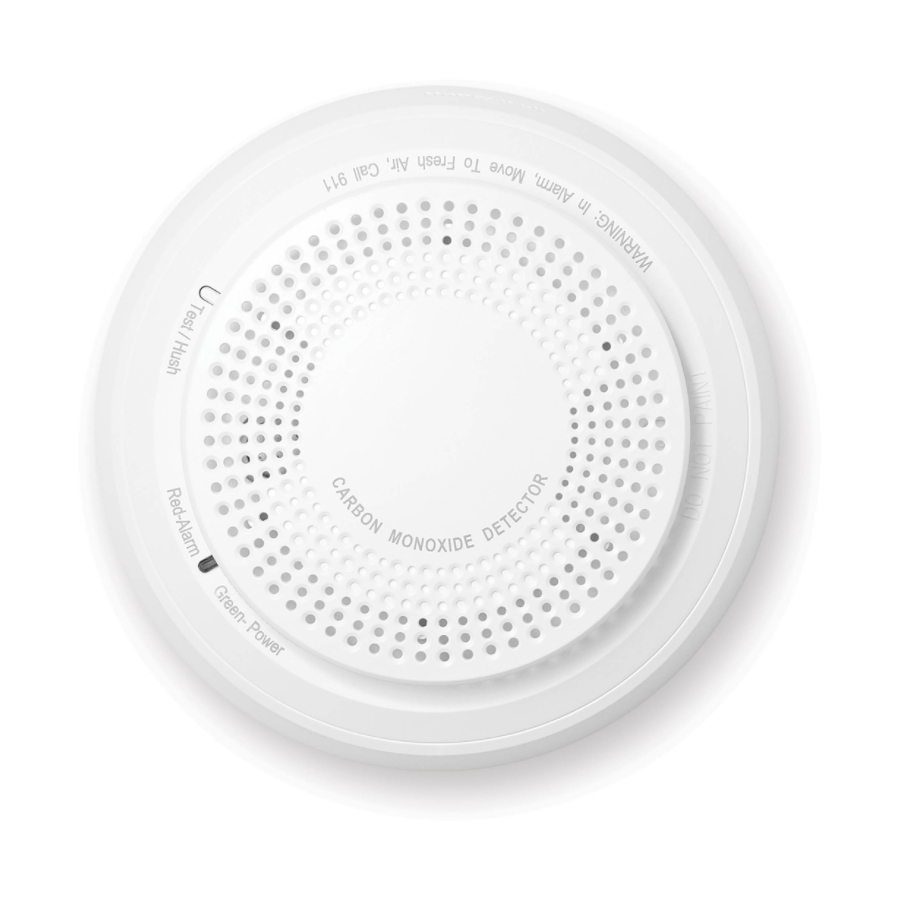

Wireless Carbon Monoxide (CO) Detector
PROSiXCOCN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROSiXCOCN and is the answer not in the manual?

Questions and answers

Related Manuals for Honeywell Home PROSiXCOCN

Summary of Contents for Honeywell Home PROSiXCOCN

  • Page 1 (the LED starts flashing fast again). NOTE: Once enrolled in a system, the PROSiXCOCN cannot be used with another controller until it is removed from the current controller. See the Controller’s instructions for details.

  • Page 2: Ceiling Mount

    MOUNTING After enrolling and before mounting permanently, conduct a sensor test (see controller’s instructions) to verify adequate signal strength. Adjust the device location as necessary. 1. Remove the CO with a counter-clockwise motion. 2. Using two supplied screws and anchors, mount the base. 3.
  • Page 3 TESTING Test communications between the detector and the control panel. The detector has one test button (for testing CO). The detector may also be functionally tested using canned CO. If the detector fails the test method, the detector should be replaced.

  • Page 4: Replacing The Batteries

    REPLACING THE BATTERIES Remove old batteries. Wait 10 seconds and then replace with two new batteries. To avoid a low battery indication when installing new batteries, both batteries must be installed within 15 seconds of installing the first one. Any low battery condition that may have occurred should clear when the base plate is installed.

  • Page 5: Maintenance

    Disable the zone or system undergoing maintenance to prevent any unwanted alarms. Power must be removed from the detector before performing maintenance of any kind. The PROSiXCOCN detector reports maintenance issues to the control panel and communicates them visually and audibly per the table below.

  • Page 6: Symptoms Of Carbon Monoxide Poisoning

    CO ALARM ACTIVATION Per UL standard 2075, the PROSiXCOCN detector has been tested to the sensitivity limits defined in UL standard 2034. CO Alarm Thresholds Parts per Million Detector Response Time (Minutes) 30 +/- 3ppm No alarm within 30 days...

  • Page 7: Other Standards

    RF EXPOSURE Warning – The antenna(s) used for this device must be installed to provide a separation distance of at least 7.8 inches (20 cm) from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC and ISED multi-transmitter product procedures. Mise en Garde Exposition aux Fréquences Radio: La/les antenne(s) utilisée(s) pour cet émetteur doit/doivent être installée(s) à...
  • Page 8 For the latest warranty information, please go to: www.security.honeywellhome.com/warranty The Honeywell Home Trademark is used under license from Honeywell International Inc. This product is manufactured by Resideo Technologies, Inc. and its affiliates. 2 Corporate Center Drive, Suite 100 P.O. Box 9040, Melville, NY 11747 ...
