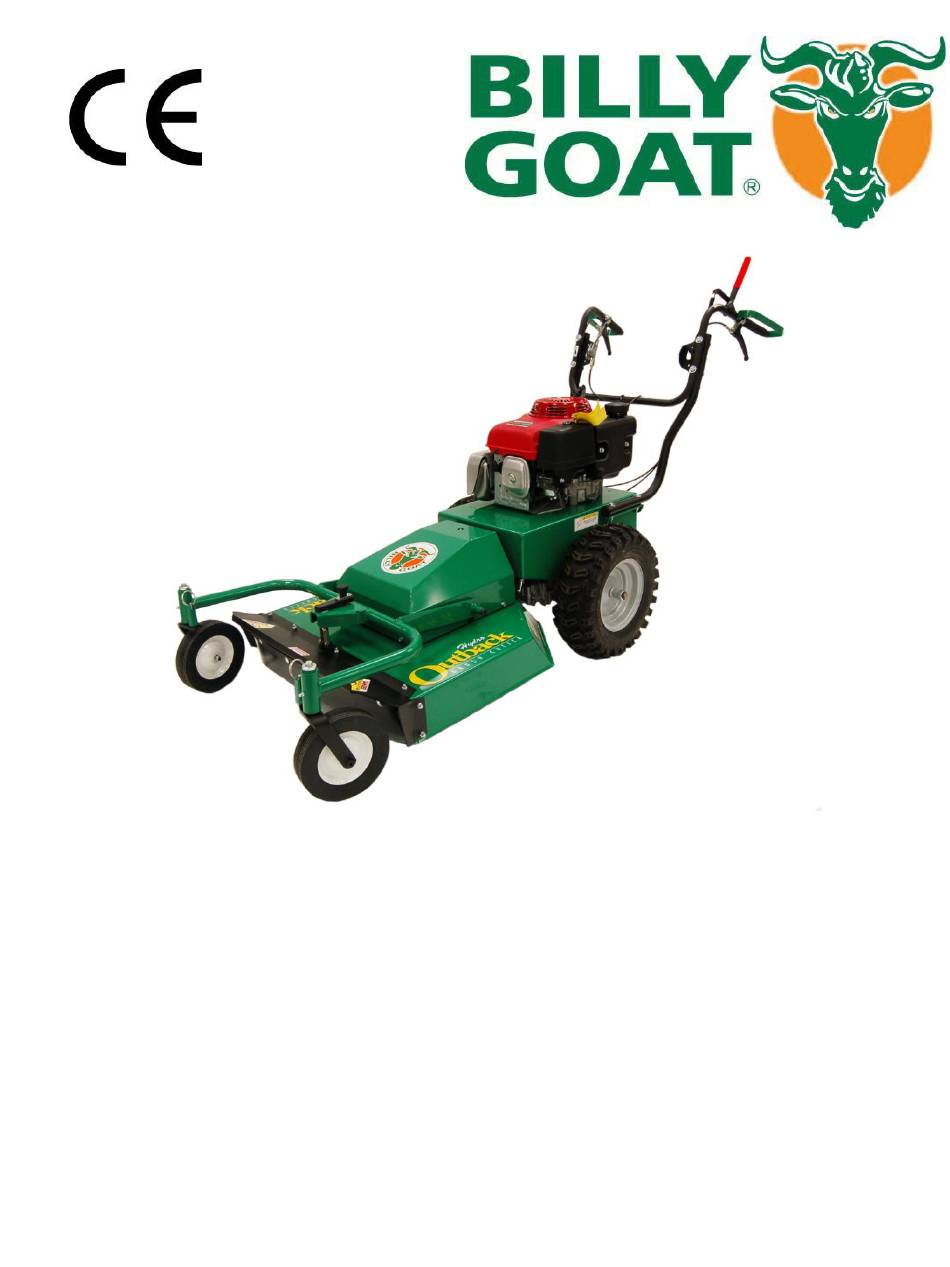

- Page 1 ® BILLY GOAT BC2600EU Hydro Series Brush Cutter Owner’s Manual Part No 501606 Form No F041513B...
-
Page 2: Table Of Contents
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual CONTENTS Specifications and Sound/Vibration ........................Instruction Labels .............................. Assembly Instructions ............................5-6 Operation ................................7-9 Maintenance ..............................10-15 Troubleshooting ..............................Illustrated Parts List ............................17-24 Part No 501606 F041513B... -
Page 3: Specifications And Sound/Vibration
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual BC2600EU SERIES SPECIFICATIONS BC2600ICHEU BC2600HHEU Engine Type Briggs and Honda GX390 Stratton Model Number 219972 0151 F! GX390UT2 DABG Displacement 344 cc 390 cc Fuel Capacity 3.0 qt (2.80 L) 3.0 qt (2.80 L) Oil Capacity 1.5 qt (1.4L) 1.5 qt (1.4L) -
Page 4: Instruction Labels
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT Euro Hydro Brush Cutter. If any labels are damaged or missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. - Page 5 BC2600 Euro Hydro Series Brush Cutter Owner’s Manual Brush Cutter Assembly Drawing Part No 501606 F041513B...
-
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS ® Your BILLY GOAT BC Self-Propelled Hydro Brush Cutter was shipped in one carton, completely assembled except for the upper handle assembly and the front caster bracket mount. Mounting hardware for the handle and caster bracket mount can be found in the parts bag. -
Page 7: Operation
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual OPERATION PERATOR ONTROLS The operator’s station is at the rear of the machine between the handlebars. The operator should STAND in a position to allow both handlebars to be grasped firmly and which allows sufficient leverage to steer the machine. Operator’s controls are shown below. - Page 8 BC2600 Euro Hydro Series Brush Cutter Owner’s Manual DO NOT START equipment with drive or blade clutch engaged. Units equipped with manual starters: Pull starter rope to start engine. PULL STARTER CORD slowly until resistance is felt. Then pull cord rapidly to avoid kickback. Push choke in (Honda engine only).
- Page 9 BC2600 Euro Hydro Series Brush Cutter Owner’s Manual Pull Forward or Reverse Drive lever up to engage transaxle in desired direction. Reverse Drive Lever (left hand) Forward Drive Lever (right hand) EIGHT ADJUSTMENT To raise and lower the cutting height on the deck, pull the knob upwards and rotate the handle Clockwise to raise the cutting height and counter-clockwise to lower the cutting height.
-
Page 10: Maintenance
LEANING ® Your BILLY GOAT Brush Cutter should be cleaned periodically to ensure optimum performance and service life. Clogs and debris should be removed from the blade area and debris should be removed from the engine cooling fins. A garden hose or pressure washer may be used for cleaning. - Page 11 Remove blade nut (23), and friction washer (39). Remove blade (40) and install replacement blade. When replacing the blade use BILLY GOAT Industries PN 501224 only. When sharpening blade make sure to sharpen all cutting edges. If the lock nut is removed and replaced more than once, it should be replaced with a new lock nut (P/N 8160009).
- Page 12 BC2600 Euro Hydro Series Brush Cutter Owner’s Manual LADE RIVE ENSION READ all safety instructions before servicing unit. DISCONNECT spark plug wire before servicing unit. The Blade Drive belt is under constant tension by the idler arm on the deck Disconnect spark plug wire.
- Page 13 BC2600 Euro Hydro Series Brush Cutter Owner’s Manual RANSAXLE RIVE EMOVAL AND EPLACEMENT READ all safety instructions before servicing unit. Numbers in parenthesis (N) refers to the item number in Illustrated Parts List. DISCONNECT spark plug wire before servicing unit. Disconnect spark plug wire.
- Page 14 BC2600 Euro Hydro Series Brush Cutter Owner’s Manual Loosen the four screws (27) holding deck belt cover (29) and remove cover. Follow the steps 3 and 4 in the Transaxle drive belt removal section to remove the Transaxle drive belt. It may be necessary to pry idler pulley (35) away from its original position to release belt, using a ratchet with an extension in the square hole on the idler arm should allow the proper leverage to pull it off the belt.
- Page 15 BC2600 Euro Hydro Series Brush Cutter Owner’s Manual RANSAXLE RIVE DJUSTMENT READ all safety instructions before servicing unit. DISCONNECT spark plug wire before servicing unit. Disconnect spark plug wire. Adjustments to cable tension are made at the barrel entering the Drive Control Levers. Adjust cable tension by tightening or loosening cable adjustment barrel on rear of engine base (see below).
-
Page 16: Troubleshooting
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual TROUBLESHOOTING Problem Possible Cause Corrective Action Engine will not start. Throttle is set to Slow/Stop position. Move throttle to fast position. Out of gasoline. Fill gas tank. Old or contaminated gasoline. Drain gas tank and fill with fresh gasoline. Spark plug wire disconnected. -
Page 17: Illustrated Parts List
BC2600 Euro Hydro Series Brush Cutter Owner’s Manual ILLUSTRATED PARTS LIST Deck Assembly Part No 501606 F041513B... - Page 18 BC2600 Euro Hydro Series Brush Cutter Owner’s Manual ITEM BC2600HHEU BC2600ICHEU DESCRIPTION Part No Part No SCREWCAP 3/8-24 X 1” HCS GR. 8 900154 900154 BLADE KIT BC26 501601 501601 WASHER DECK RETAINNG 501214 501214 LABEL BADGING BC26 HYDRO 501500 501500 LABEL DANGER 400424...
- Page 19 BC2600 Euro Hydro Series Brush Cutter Owner’s Manual Engine Assembly Part No 501606 F041513B...
- Page 20 BC2600 Euro Hydro Series Brush Cutter Owner’s Manual ITEM BC2600HHEU BC2600ICHEU DESCRIPTION Part No Part No SCREWCAP 3/8-24 X 1” HCS GR. 8 900154 900154 WASHER DECK RETAINING 501214 501214 NUT LOCK 5/16”-18 ZP 8160002 8160002 ENGINE BASE WA W/LABELS 501603 501603 SCREW SELT TAP 1/4-20 X 5/8”...
- Page 21 BC2600 Euro Hydro Series Brush Cutter Owner’s Manual Handle Assembly Part No 501606 F041513B...
- Page 22 BC2600 Series Brush Cutter Owner’s Manual ITEM BC2600HHEU BC2600ICHEU DESCRIPTION Part No Part No NUT LOCK 5/16-18 ZP 8160002 8160002 NUT LOCK 3/8-16 HEX 8160003 8160003 HANDLE LOWER LEFT 501400 501400 BRACKET THROTTLE BC26 501251 501251 SCREWCAP 3/8”-16 X 2” 8041054 8041054 WASHER 3/8”...
- Page 23 BC2600 Euro Hydro Series Brush Cutter Owner’s Manual Transaxle Drawing Part No 501606 F041513B...
- Page 24 BC2600 Series Brush Cutter Owner’s Manual ITEM BC2600HHEU BC2600ICHEU DESCRIPTION Part No Part No NUT LOCK 1/4”-20 HEX ZP 8160001 8160001 NUT LOCK 5/16”-18 8160002 8160002 ENGINE BASE WA W/LABELS 501603 501603 SCREW SELT TAP 1/4-20 X 5/8” HWH TYPE F 890359 890359 WASHER 3/8”...
