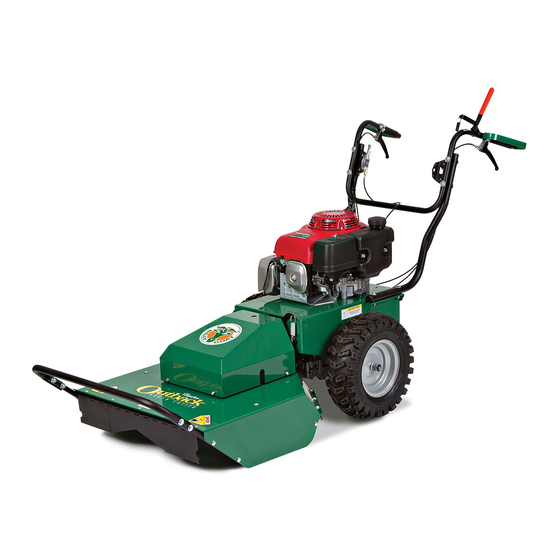

Hydro series brush cutter
Hide thumbs Also See for BC2600 Hydro Series:

Advertisement

®
BILLY GOAT
BC2600 Hydro Series Brush Cutter
Owner's Manual
Part No 501505
1
Form No F021513A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC2600 Hydro Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Billy Goat BC2600 Hydro Series

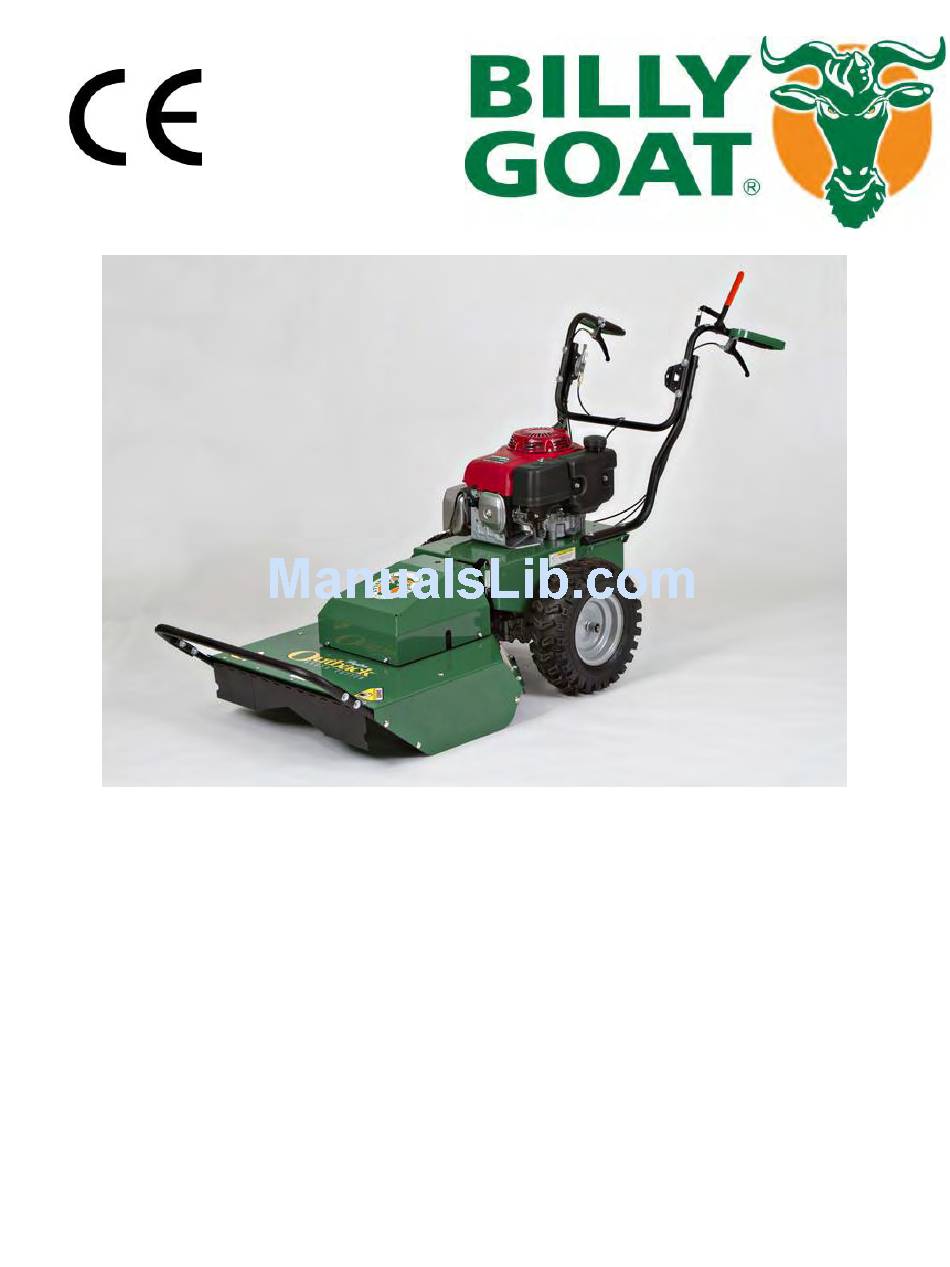

  • Page 1 ® BILLY GOAT BC2600 Hydro Series Brush Cutter Owner’s Manual Part No 501505 Form No F021513A...
  • Page 2: Table Of Contents

    BC2600 Hydro Series Brush Cutter Owner’s Manual CONTENTS Specifications and Sound/Vibration ........................Instruction Labels .............................. Assembly Instructions ............................5-6 Operation ................................7-9 Maintenance ..............................10-16 Battery maintenance ………………………………………………………………………………………………………17 Troubleshooting ..............................Illustrated Parts List ............................19-26 Go to http://www.billygoat.com for French-Canadian translations of the product manuals.
  • Page 3: Specifications And Sound/Vibration

    BC2600 Hydro Series Brush Cutter Owner’s Manual BC 2600 SERIES SPECIFICATIONS BC2600ICH BC2600HH BC2600HEBH Engine Type Briggs and Honda GX390 Honda Electric Stratton Model Number 219972 0151 F! GX390UT2 DABG V390UTDE33 Displacement 344 cc 390 cc 390 cc Fuel Capacity 3.0 qt (2.80 L)
  • Page 4: Instruction Labels

    BC2600 Hydro Series Brush Cutter Owner’s Manual INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT Hydro Brush Cutter. If any labels are damaged or missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels.
  • Page 5 BC2600 Hydro Series Brush Cutter Owner’s Manual Brush Cutter Assembly Drawing Part No 501505 F021513A...
  • Page 6: Assembly Instructions

    BC2600 Hydro Series Brush Cutter Owner’s Manual ASSEMBLY INSTRUCTIONS ® Your BILLY GOAT BC Self-Propelled Hydro Brush Cutter was shipped in one carton, completely assembled except for the upper handle assembly and the front guard bar. Mounting hardware for the handle and guard bar is temporarily installed on the lower handle and the front of the deck assembly.
  • Page 7: Operation

    BC2600 Hydro Series Brush Cutter Owner’s Manual OPERATION PERATOR ONTROLS The operator’s station is at the rear of the machine between the handlebars. The operator should STAND in a position to allow both handlebars to be grasped firmly and which allows sufficient leverage to steer the machine. Operator’s controls are shown below.
  • Page 8 BC2600 Hydro Series Brush Cutter Owner’s Manual Units equipped with electric starters: Turn the switch right until engine starts, only cranking over the engine for 10 sec at a time if it does not immediately start. Start/Stop switch DO NOT START equipment with drive or blade clutch engaged.
  • Page 9 BC2600 Hydro Series Brush Cutter Owner’s Manual Pull Forward or Reverse Drive lever up to engage transaxle in desired direction. Reverse Drive Lever (left hand) Forward Drive Lever (right hand) Release drive lever to disengage transaxle. Release blade clutch handle to disengage blade.
  • Page 10: Maintenance

    BC2600 Hydro Series Brush Cutter Owner’s Manual MAINTENANCE ERIODIC AINTENANCE Periodic maintenance should be performed at the following intervals: Maintenance Operation Every Use Daily or Every 5 Every 25 Hours Every 50 Every 100-150 Hours Hours Hours  Inspect for worn or damaged parts.
  • Page 11 Remove blade nut (23), and friction washer (39). Remove blade (40) and install replacement blade. When replacing the blade use BILLY GOAT Industries PN 501224 only. When sharpening blade make sure to sharpen all cutting edges. If the lock nut is removed and replaced more than once, it should be replaced with a new lock nut (P/N 8160009).
  • Page 12 BC2600 Hydro Series Brush Cutter Owner’s Manual LADE RIVE ENSION READ all safety instructions before servicing unit. DISCONNECT spark plug wire before servicing unit. The Blade Drive belt is under constant tension by the idler arm on the deck Disconnect spark plug wire.
  • Page 13 BC2600 Hydro Series Brush Cutter Owner’s Manual RANSAXLE RIVE EMOVAL AND EPLACEMENT READ all safety instructions before servicing unit. Numbers in parenthesis (N) refers to the item number in Illustrated Parts List. DISCONNECT spark plug wire before servicing unit. Disconnect spark plug wire.
  • Page 14 BC2600 Hydro Series Brush Cutter Owner’s Manual Loosen the four screws (27) holding deck belt cover (29) and remove cover. Follow the steps 3 and 4 in the Transaxle drive belt removal section to remove the Transaxle drive belt. It may be necessary to pry idler pulley (35) away from its original position to release belt, using a ratchet with an extension in the square hole on the idler arm should allow the proper leverage to pull it off the belt.
  • Page 15 BC2600 Hydro Series Brush Cutter Owner’s Manual RANSAXLE RIVE DJUSTMENT READ all safety instructions before servicing unit. DISCONNECT spark plug wire before servicing unit. Disconnect spark plug wire. Adjustments to cable tension are made at the barrel entering the Drive Control Levers.
  • Page 16 BC2600 Hydro Series Brush Cutter Owner’s Manual IRING IAGRAMS Starter Switch Wiring BLACK FUSE 20 A SWITCH STARTER MOTOR WHITE STARTER SOLENOID GREEN/ BATTERY YELLOW BLACK ENGINE ENGINE GROUND GROUND Starter Circuit Schematic Diagram Part No 501505 F021513A...
  • Page 17: Battery Maintenance

    BC2600 Hydro Series Brush Cutter Owner’s Manual Battery Care (For Electric-Starting Models) Proper care can extend the life of a battery. Follow these recommendations to ensure your battery’s best performance and long life: • Do not allow the battery charge to get too low. If the machine is not used, charge the battery every 4 –...
  • Page 18: Troubleshooting

    BC2600 Hydro Series Brush Cutter Owner’s Manual TROUBLESHOOTING Problem Possible Cause Corrective Action Engine will not start. Throttle is set to Slow/Stop position. Move throttle to fast position. Out of gasoline. Fill gas tank. Old or contaminated gasoline. Drain gas tank and fill with fresh gasoline.
  • Page 19: Illustrated Parts List

    BC2600 Hydro Series Brush Cutter Owner’s Manual ILLUSTRATED PARTS LIST Deck Assembly Part No 501505 F021513A...
  • Page 20: Item

    BC2600 Hydro Series Brush Cutter Owner’s Manual ITEM BC2600HEBH BC2600HH BC2600ICH DESCRIPTION Part No Part No Part No SCREWCAP 3/8-24 X 1” HCS GR. 8 900154 900154 900154 BLADE KIT BC26 501601 501601 501601 WASHER DECK RETAINNG 501214 501214 501214...
  • Page 21 BC2600 Hydro Series Brush Cutter Owner’s Manual Engine Assembly Part No 501505 F021513A...
  • Page 22 BC2600 Hydro Series Brush Cutter Owner’s Manual ITEM BC2600HEBH BC2600HH BC2600ICH DESCRIPTION Part No Part No Part No SCREWCAP 3/8-24 X 1” HCS GR. 8 900154 900154 900154 WASHER DECK RETAINING 501214 501214 501214 NUT LOCK 5/16”-18 ZP 8160002 8160002...
  • Page 23 BC2600 Hydro Series Brush Cutter Owner’s Manual Handle Assembly Part No 501505 F021513A...
  • Page 24 BC2600 Series Brush Cutter Owner’s Manual ITEM BC2600HEBH BC2600HH BC2600ICH DESCRIPTION Part No Part No Part No NUT LOCK 5/16-18 ZP 8160002 8160002 8160002 NUT LOCK 3/8-16 HEX 8160003 8160003 8160003 HANDLE LOWER LEFT 501400 501400 501400 BRACKET THROTTLE BC26 501251 501251 501251...
  • Page 25 BC2600 Hydro Series Brush Cutter Owner’s Manual Transaxle Drawing Part No 501505 F021513A...
  • Page 26 BC2600 Series Brush Cutter Owner’s Manual ITEM BC2600HEBH BC2600HH BC2600ICH DESCRIPTION Part No Part No Part No NUT LOCK 1/4”-20 HEX ZP 8160001 8160001 8160001 NUT LOCK 5/16”-18 8160002 8160002 8160002 ENGINE BASE WA W/LABELS 501603 501603 501603 SCREW SELT TAP 1/4-20 X 5/8” HWH TYPE F 890359 890359 890359...
