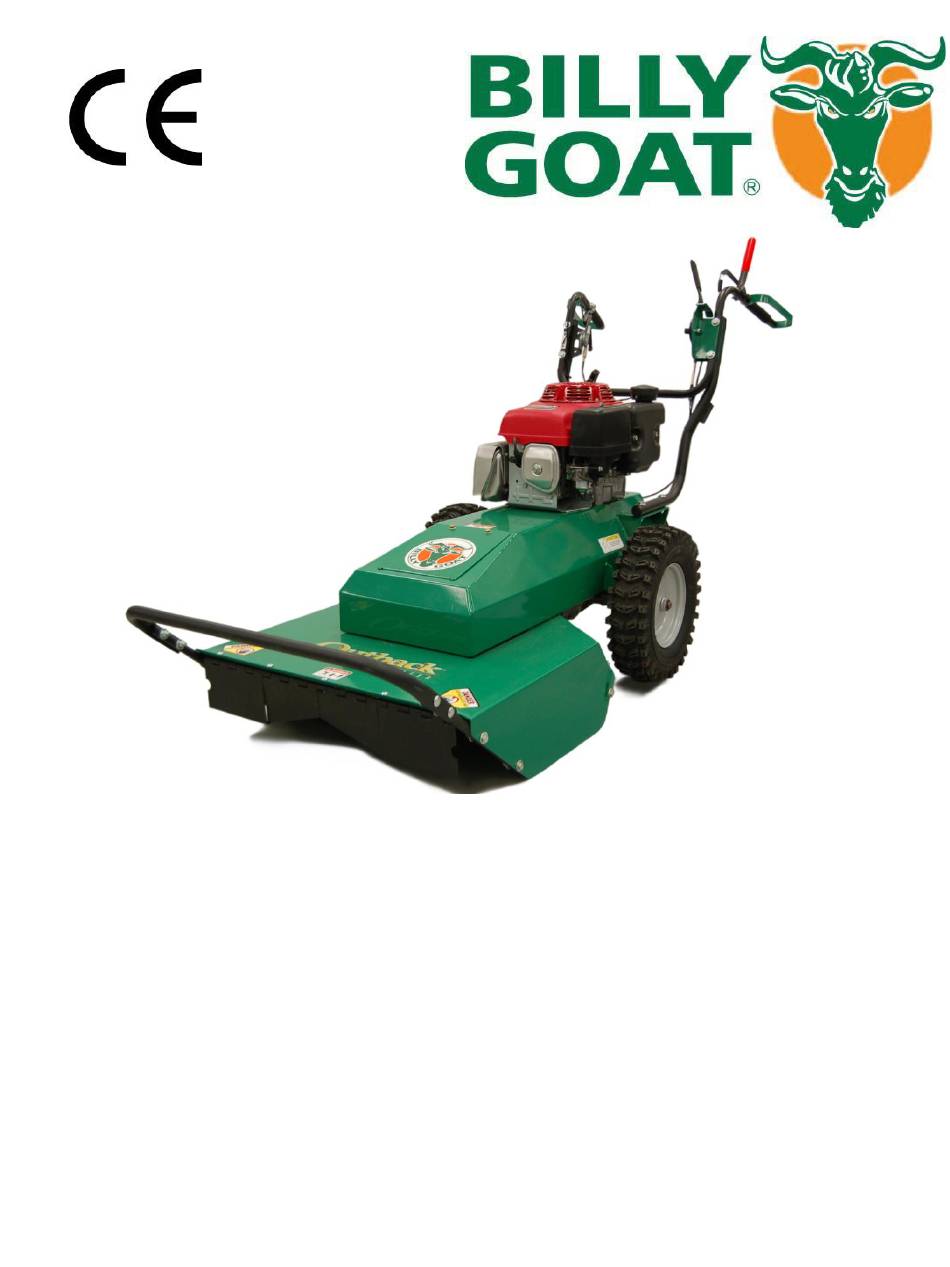

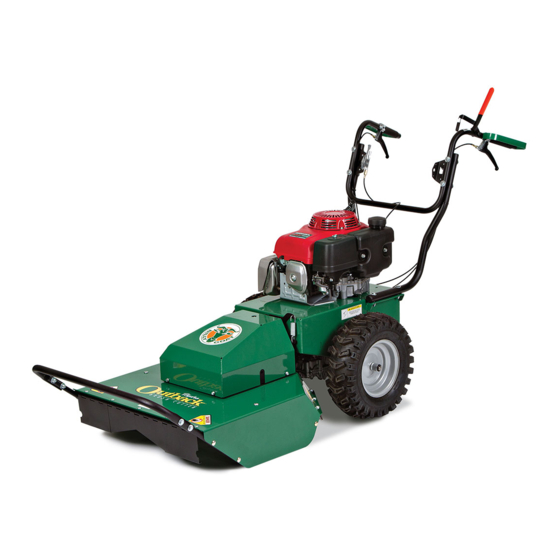

  • Page 1 ® BILLY GOAT BC2600 Mechanical Series Brush Cutter Owner’s Manual Part No 501513 Form No F062713C...

  • Page 2: Table Of Contents

    BC2600 Mech Series Brush Cutter Owner’s Manual CONTENTS Specifications and Sound/Vibration ........................Instruction Labels .............................. Assembly Instructions ............................5-6 Operation ................................7-9 Maintenance ..............................10-16 Battery maintenance ………………………………………………………………………………………………………17 Troubleshooting ..............................Illustrated Parts List ............................19-26 Part No 501513 F062713C...
  • Page 3 BC2600 Mech Series Brush Cutter Owner’s Manual BC 2600 SERIES SPECIFICATIONS BC2600ICM BC2600HM BC2600HMF Engine Type Briggs and Honda GX390 Honda GX390 Stratton Model Number 219972 0151 F1 GX390UTQA2 GX390UTQA2 Displacement 344 cc 390 cc 390 cc Fuel Capacity 3.0 qt (2.80 L) 3.0 qt (2.80 L)

  • Page 4: Instruction Labels

    BC2600 Mech Series Brush Cutter Owner’s Manual INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT Mechanical Brush Cutter. If any labels are damaged or missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels.
  • Page 5 BC2600 Mech Series Brush Cutter Owner’s Manual Brush Cutter Assembly Drawing Part No 501513 F062713C...

  • Page 6: Assembly Instructions

    BC2600 Mech Series Brush Cutter Owner’s Manual ASSEMBLY INSTRUCTIONS ® Your BILLY GOAT BC Self-Propelled Mechanical Brush Cutter was shipped in one carton, completely assembled except for the upper handle assembly and the front guard bar. Mounting hardware for the handle and guard bar is temporarily installed on the lower handle and the front of the deck assembly.

  • Page 7: Operation

    BC2600 Mech Series Brush Cutter Owner’s Manual OPERATION PERATOR ONTROLS The operator’s station is at the rear of the machine between the handlebars. The operator should STAND in a position to allow both handlebars to be grasped firmly and which allows sufficient leverage to steer the machine. Operator’s controls are shown below.
  • Page 8 BC2600 Mech Series Brush Cutter Owner’s Manual DO NOT START equipment with drive or blade clutch engaged. Pull starter rope to start engine. PULL STARTER CORD slowly until resistance is felt. Then pull cord rapidly to avoid kickback. Push choke in (Honda engine only).
  • Page 9 BC2600 Mech Series Brush Cutter Owner’s Manual Release drive lever to disengage transaxle. Release blade clutch handle to disengage blade. Move the throttle to the slowest possible position on the throttle control. LEARING A LOGGED UTTING DISCONNECT spark plug wire before servicing unit.

  • Page 10: Maintenance

    BC2600 Mech Series Brush Cutter Owner’s Manual MAINTENANCE ERIODIC AINTENANCE Periodic maintenance should be performed at the following intervals: Maintenance Operation Every Use Daily or Every 5 Every 25 Hours Every 50 Every 100-150 Hours Hours Hours  Inspect for worn or damaged parts.
  • Page 11 Remove blade nut (37), and friction washer (35). Remove blade (52) and install replacement blade. When replacing the blade use BILLY GOAT Industries PN 501224 only. When sharpening blade make sure to sharpen all cutting edges. If the lock nut is removed and replaced more than once, it should be replaced with a new lock nut (P/N 8160009).
  • Page 12 BC2600 Mech Series Brush Cutter Owner’s Manual LADE RIVE ENSION READ all safety instructions before servicing unit. DISCONNECT spark plug wire before servicing unit. The Blade Drive belt is under constant tension by the idler arm on the deck Disconnect spark plug wire.
  • Page 13 BC2600 Mech Series Brush Cutter Owner’s Manual RANSAXLE RIVE EMOVAL AND EPLACEMENT READ all safety instructions before servicing unit. Numbers in parenthesis (N) refers to the item number in Illustrated Parts List. DISCONNECT spark plug wire before servicing unit. Disconnect spark plug wire.
  • Page 14 BC2600 Mech Series Brush Cutter Owner’s Manual Loosen the two screws (75) holding deck belt cover (29) and remove cover. Follow the steps 3 and 4 in the Transaxle drive belt removal section to remove the Transaxle drive belt. It may be necessary to pry idler pulley (18) away from its original position to release belt, using a ratchet with an extension in the square hole on the idler arm should allow the proper leverage to pull it off the belt.
  • Page 15 BC2600 Mech Series Brush Cutter Owner’s Manual RANSAXLE RIVE DJUSTMENT READ all safety instructions before servicing unit. DISCONNECT spark plug wire before servicing unit. Disconnect spark plug wire. Adjustments to cable tension are made at the barrel entering the Drive Control Levers.

  • Page 16: Troubleshooting

    BC2600 Mech Series Brush Cutter Owner’s Manual TROUBLESHOOTING Problem Possible Cause Corrective Action Engine will not start. Throttle is set to Slow/Stop position. Move throttle to fast position. Out of gasoline. Fill gas tank. Old or contaminated gasoline. Drain gas tank and fill with fresh gasoline.

  • Page 17: Illustrated Parts List

    BC2600 Mech Series Brush Cutter Owner’s Manual ILLUSTRATED PARTS LIST Deck Assembly Part No 501513 F062713C...

  • Page 18: Item

    BC2600 Mech Series Brush Cutter Owner’s Manual BC2600ICM BC2600HM BC2600HMF Item no. Description Part no. Part no. Part no. BASE ENGINE BC26 FIXED WA 501120 501120 501120 BRACKET DECK MOUNT WA BC 501118 501118 501118 SKID BC26 501407 501407 501407...
  • Page 19 BC2600 Mech Series Brush Cutter Owner’s Manual Engine Assembly Part No 501513 F062713C...
  • Page 20 BC2600 Mech Series Brush Cutter Owner’s Manual BC2600ICM BC2600HM BC2600HMF Item no. Description Part no. Part no. Part no. ENGINE 12.5 HP BRIGGS OHV VERT 520046 ENGINE 13HP HONDA GX390UTQA2 500334 500334 BASE ENGINE BC26 FIXED WA 501120 501120 501120...
  • Page 21 BC2600 Mech Series Brush Cutter Owner’s Manual Handle Assembly Part No 501505 F062713C...
  • Page 22 BC2600 Series Brush Cutter Owner’s Manual BC2600ICM BC2600HM BC2600HMF Item no. Description Part no. Part no. Part no. BASE ENGINE BC26 FIXED WA 501120 501120 501120 GUARD REAR BC26 501298 501298 501298 PLATE CLAMP SKIRTING BC26 501239 501239 501239 HANDLE LOWER RIGHT...
  • Page 23 BC2600 Mech Series Brush Cutter Owner’s Manual 96 95 82 98 Transaxle Drawing Part No 501505 F062713C...
  • Page 24 BC2600 Series Brush Cutter Owner’s Manual BC2600ICM BC2600HM BC2600HMF Item no. Description Part no. Part no. Part no. BASE ENGINE BC26 FIXED WA 501120 501120 501120 WHEEL 16" STUD TREAD W/CENTERED HUB 500366 500366 WHEEL 16" STUD TREAD FOAM FILLED...
