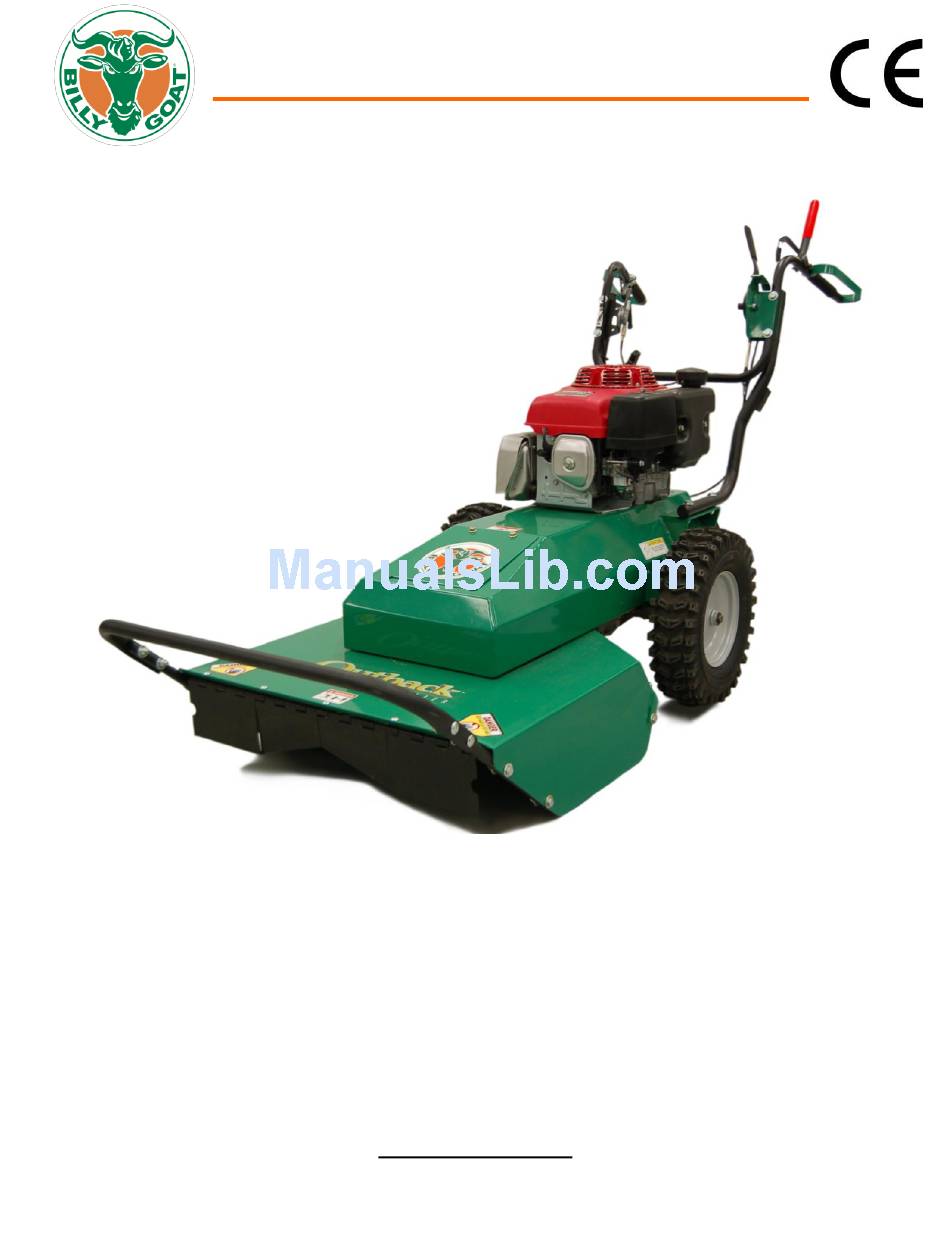

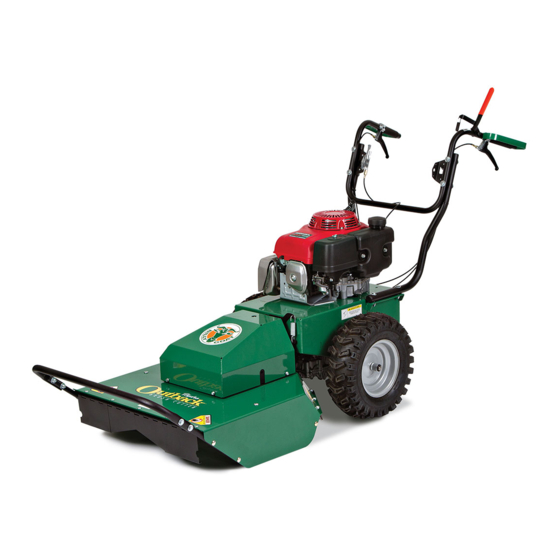

BC26 MECHANICAL DRIVE Owner's Manual
BC2600 Mechanical Drive Series Brush Cutter
Owner's Manual
Beginning Serial #: 100515001
Original Instructions
IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE
Part No 501513
1
F100515E
