Adesso Savannah Assembly Instruction

Assembly Instructions (English)
ASSEMBLY INSTRUCTION FOR
Savannah Arc Lamp
Model#5219-01
1. Screw pole (B) clockwise onto base (A) until tight,
then screw pole (B), (C), and (D) together.
2. Unscrew 3 pcs pre-assembled hex screw (F), and
insert tube (E) into pole (D), then tighten it with 3
pcs hex screw (F) by using allen wrench (G).
3. Insert tube (H) into tube (E), then tighten it with
screw (I) by using screwdriver (J).
4. Unscrew 2 pcs pre-assembled hex screw (F), and
insert socket (K) into tube (H), then tighten it with
2 pcs hex screw (F) by using allen wrench (G).
5. Place shade (L) onto socket (K) and tighten it
with socket ring (M).

GENERAL PRODUCT INFORMATION:

This product is suitable
for dry locations only.
---------------------------------------------------------------

IMPORTANT SAFETY INSTRUCTIONS:

This portable lamp has a polarized plug as a feature to
reduce the risk of electric shock (one blade is larger than
the other). This plug will fit in a polarized outlet only one
way. If the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a qualified
electrician.Do not use with an extension cord unless the
plug can be fully inserted.
PLUG .
-------------------------------------------------------
BULB TYPE: Use only with maximum of 1*100
watt incandescent bulb (bulbs not included).

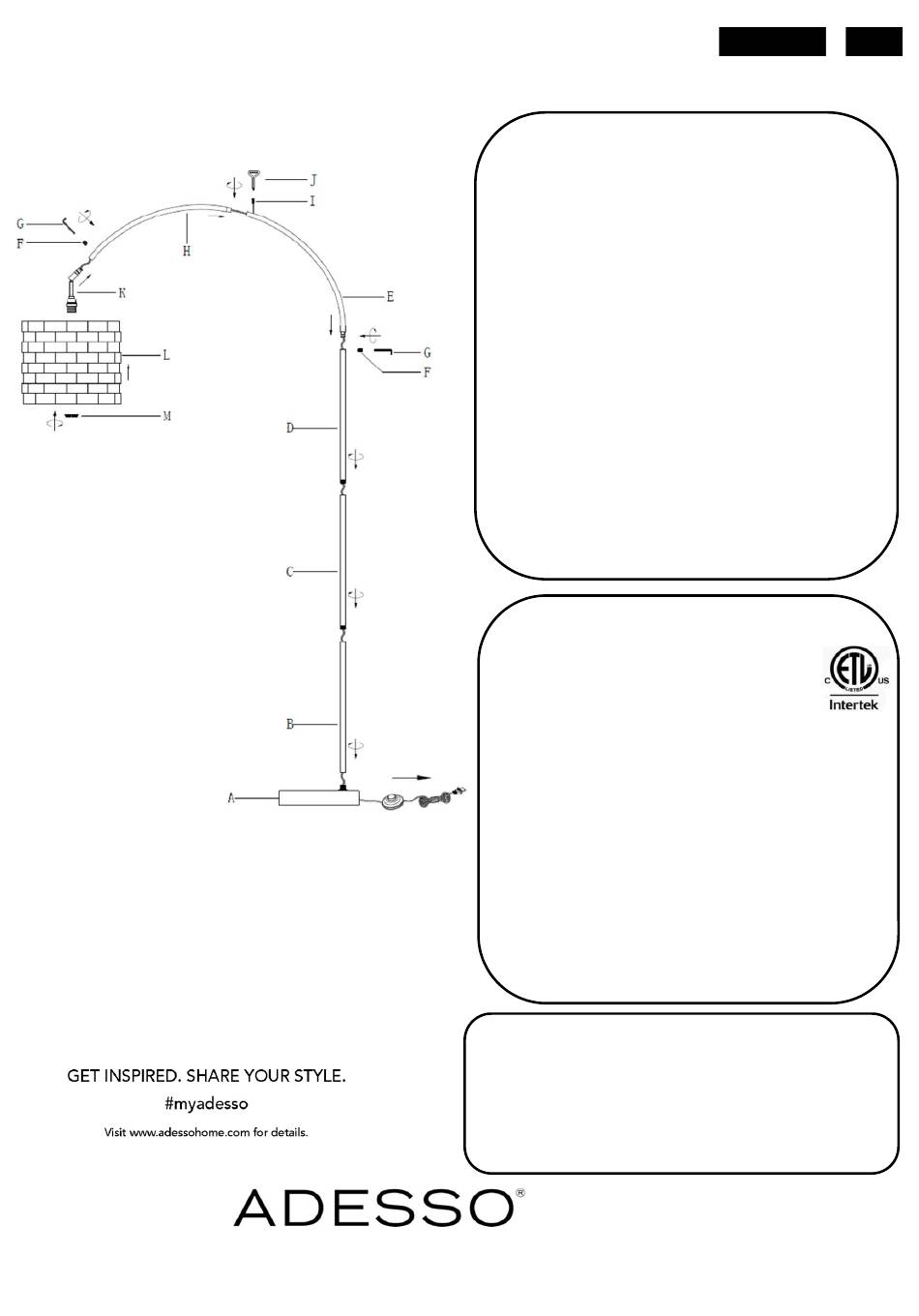

PARTS DIAGRAM

(7) * Hex screw (F) : 5 pcs for assembly
2 pcs for extra replacement
(1) * Allen wrench (G)
(1) * Screwdriver (J)
