Assembly Instructions (English)
ASSEMBLY INSTRUCTION FOR

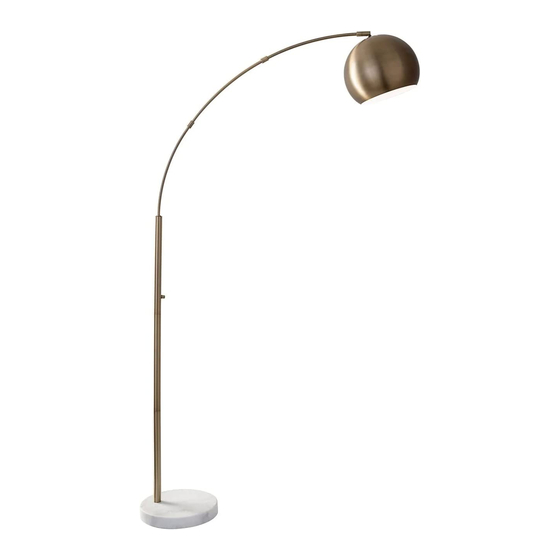

Astoria Arc Lamp
Model# 5170-21 / 22
1. Insert tube (B) into shade (A), tighten the pre-set screw (C) with Allen key (D). (For easy
access to pre-set screw (C), rotate shade (A) upward.) Insert the tube (B), (E)and (F) together ,
then tighten the pre-set screws (C) with Allen wrench (D).
2. Fold the excess cord and insert into tube (G).
3. Unscrew and remove pre-set screw (H), insert tube (F) into (G), tighten screw (I) with Allen
wrench (D).
Note: The Arc lamp should face forward in the same direction as the switch, and cord
coming out of the back of the base.
4. Screw tube (G), (J) and (K) together until tight.
5. Insert tube (k) into base (L) & washer (M), then tighten it with nut (N) using wrench (O).
You may need to pull any excess cord gently through the poles so that these two parts fit.
GENERAL PRODUCT INFORMATION:
This product is suitable for dry locations only.
---------------------------------------------------------------
IMPORTANT SAFETY INSTRUCTIONS:
This portable lamp has a polarized plug as a feature to reduce the risk of electric shock (one blade is
larger than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully
in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.Do not use with an
extension cord unless the plug can be fully inserted.
----------------------------------------------
BULB TYPE: type A Max 100W bulb (bulb not included).
(3)* HEX screw (C)
(1)* Washer (M)
DO NOT ALTER THE PLUG .
PARTS DIAGRAM:
(1)* Allen Wrench (D)
(1) * HEX screw (H)
(1)* Nut (N)
(1)* Wrench(O)
