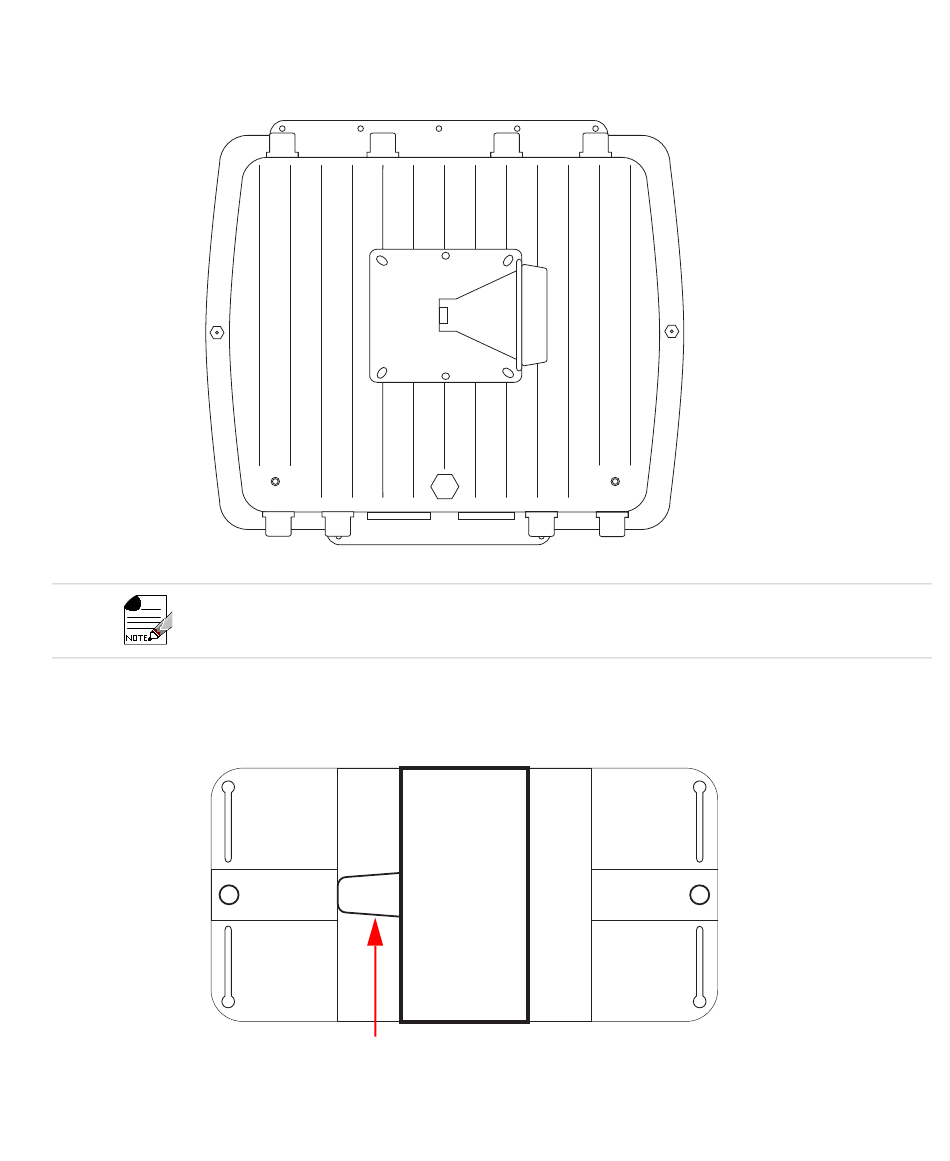

Figure 34:
Note that the circular portion of the bracket should be facing to the side of the AP (the AP's sides are
the faces that do not have antennas or other attachments). This is to ensure that the AP is properly ori-
ented when the bracket is fully assembled.
Next, identify the portion of the bracket assembly that inserts into the circular opening on
1.
the portion currently attached to the AP. The correct component has a corresponding cir-
cular section with a hollow cone protruding from one face of it. See
Figure 35:
Cone portion (connects to other bracket)
Installing the Access Point
Square Mounting Bracket Attaches to Bottom of OAP433e
Second Bracket Attachment
Figure 35 on
page
59.
59
