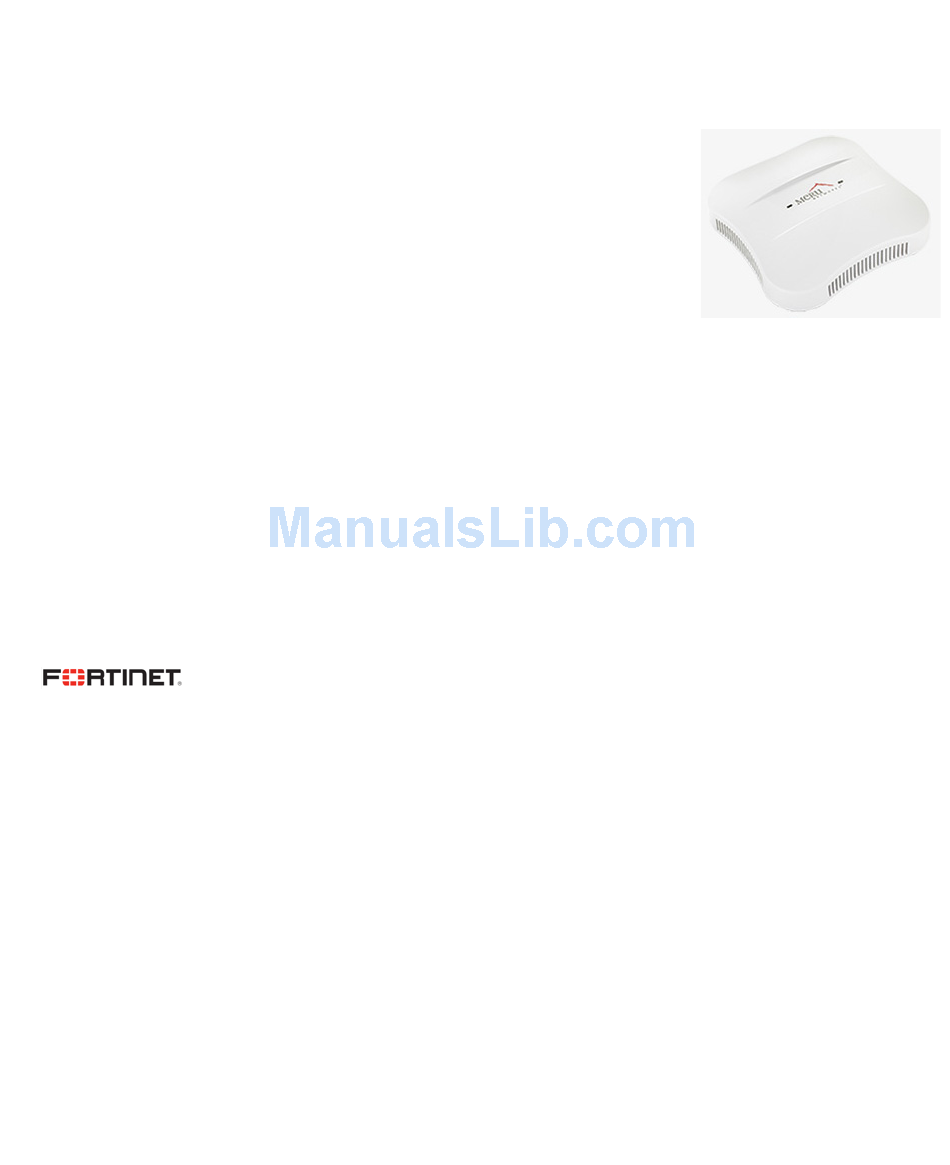

Fortinet AP1000
Installation Guide
882-70015 Rev A Ver 8
Copyright© 2015 Fortinet, Inc. All rights reserved. Fortinet® and certain other marks are registered trademarks of
Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or
common law trademarks of Fortinet. All other product or company names may be trademarks of their respective
owners. Performance and other metrics contained herein were attained in internal lab tests under ideal condi-
tions, and actual performance and other results may vary. Network variables, different network environments and
other conditions may affect performance results. Nothing herein represents any binding commitment by Fortinet,
and Fortinet disclaims all warranties, whether express or implied, except to the extent Fortinet enters a binding
written contract, signed by Fortinet's General Counsel, with a purchaser that expressly warrants that the identified
product will perform according to certain expressly-identified performance metrics and, in such event, only the
specific performance metrics expressly identified in such binding written contract shall be binding on Fortinet. For
absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet's
internal lab tests. In no event does Fortinet make any commitment related to future deliverables, features or
development, and circumstances may change such that any forward-looking statements herein are not accurate.
Fortinet disclaims in full any covenants, representations, and guarantees pursuant hereto, whether express or
implied. Fortinet reserves the right to change, modify, transfer, or otherwise revise this publication without notice,
and the most current version of the publication shall be applicable.

Advertisement

Table of Contents
loading

Summary of Contents for Fortinet AP1000

  • Page 1 Copyright© 2015 Fortinet, Inc. All rights reserved. Fortinet® and certain other marks are registered trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners.
  • Page 2 Support For assistance, contact Fortinet Customer Service and Support 24 hours a day at +1 408-542- 7780, or by using one of the local contact numbers, or through the Support portal at https:// support.fortinet.com/ Fortinet Customer Service and Support provide end users and channel partners with the fol- lowing: •...
  • Page 3 To ensure a secured WiFi network, Fortinet hardware (controllers and access points) are designed to run only the proprietary firmware developed by Fortinet. Only approved Fortinet access points are con- figurable with Fortinet controllers and vice versa. Third party access points and software cannot be con- figured on Fortinet hardware Trademarks and Copyright Statement Fortinet®, FortiGate®, and FortiGuard®...
  • Page 4 Agreement and subject to any further restrictions in Fortinet documentation, and solely on the Fortinet appliance, or, in the case of blades, CPUs or databases, on the single blade, CPU or database on which Fortinet installed the Software or, for stand-alone Software, solely on a...
  • Page 5 Agreement and therefore wishes to return the Product(s) as provided for in this Agreement. Notwithstanding anything to the contrary, distributors, resellers and other Fortinet partners (a) are not agents of Fortinet and (b) are not authorized to bind Fortinet in any way.
  • Page 6 Fortinet. It is the Fortinet distributor’s and reseller’s responsibility to make clear to the end user the date the product was originally shipped from Fortinet, and it is the end user’s responsibility to understand the original ship date from the party from which the end user purchased the product.
  • Page 7 Fortinet in writing, the warranty replacement Software is provided only to the original licensee, and is subject to the terms and conditions of the license granted by Fortinet for the Software. The Software Warranty Period shall extend for an additional ninety (90) days after any war- ranty replacement software is delivered.
  • Page 8 Fortinet. 8. Governing Law. Any disputes arising out of this Agreement or Fortinet’s limited warranty shall be governed by the laws of the state of California, without regard to the conflict of laws principles. In the event of any disputes arising out of this Agreement or Fortinet’s limited warranty, the parties submit...
  • Page 9 Agreement or transfer any of the rights or obligations under this Agreement without the prior written consent of Fortinet. This Agreement shall be binding upon, and inure to the benefit of, the successors and permitted assigns of the parties. The United Nations Conven- tion on Contracts for the International Sales of Goods is expressly excluded.
  • Page 10 Fortinet, such amendment or other agreement must be signed by Forti- net’s General Counsel. No waiver will be implied from conduct or failure to enforce rights nor effective unless in a writing signed on behalf of the party against whom the waiver is asserted.
  • Page 11 (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if Fortinet, Inc. - EULA v14 - September 2015...
  • Page 12 Fortinet, Inc. - EULA v14 - September 2015...
  • Page 13 License. 8. If the distribution and/or use of the Program is restricted in certain countries either by pat- ents or by copyrighted interfaces, the original copyright holder who places the Program under Fortinet, Inc. - EULA v14 - September 2015...
  • Page 14 OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PRO- GRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Fortinet, Inc. - EULA v14 - September 2015...
  • Page 15 2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: Fortinet, Inc. - EULA v14 - September 2015...
  • Page 16 Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for soft- ware interchange. Fortinet, Inc. - EULA v14 - September 2015...
  • Page 17 Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of Fortinet, Inc. - EULA v14 - September 2015...
  • Page 18 Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance. Fortinet, Inc. - EULA v14 - September 2015...
  • Page 19 General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is Fortinet, Inc. - EULA v14 - September 2015...
  • Page 20 15. The warranty disclaimer contained in Sections 11 and 12 of the preceding GPL License is incorporated herein. Fortinet, Inc. - EULA v14 - September 2015...
  • Page 21: Table Of Contents

    Typographic Conventions ......12 Contacting Fortinet ........12 Customer Services and Support .
  • Page 22 Install the Access Point ........22 Restoring AP1000i Settings .
  • Page 23 Distributed Antenna Systems (DAS) ......92 Supported PoEs ..............93 Supported Power Over Ethernet Devices for Fortinet APs ..93 Table of Contents...
  • Page 24 Table of Contents...
  • Page 25: About This Guide

    Fortinet System Director Configuration Guide Website Resources For the first 90 days after you buy a Fortinet controller, you have access to online support. If you have a support contract, you have access for the length of the contract. See this web site for information such as: •...
  • Page 26: External References

    Identifies important information about actions that could result in damage to or loss of data, or could cause the application to behave in unexpected ways. Identifies critical information about actions that could result in equipment failure or bodily harm. Contacting Fortinet You can visit Fortinet on the Internet at this URL: http://www.merunetworks.com Typographic Conventions...
  • Page 27: Customer Services And Support

    Customer Services and Support For assistance, contact Fortinet Customer Services and Support 24 hours a day at +1-888-637-8952 or +1-408-215-5305. Email can be sent to support@merunetworks.com. Fortinet Customer Services and Support provide end users and channel partners with the fol- lowing: •...
  • Page 28 Contacting Fortinet...
  • Page 29: Access Points

    Access Points Access Points contain radio devices that communicate with the Controller and form the wire- less LAN (WLAN). The Controller and Access Points connect to the site’s wired LAN through wired switches. Wireless clients associate with the Access Points as they roam throughout the WLAN.
  • Page 30: Ap1000I

    AP1000i The AP1000i Access Point is an internal-antenna AP with either one or two dual-band 802.11n radios, 2x2 MIMO and internal antennas. Model Configuration AP1014i One single-band 802.11n radio with 2x2 MIMO, internal antennas, and four wired ethernet ports. AP1010i One single-band 802.11n radio with 2x2 MIMO and internal antennas AP1020i...
  • Page 31: Ap1000E

    AP1000e The AP1000ie Access Point is an external-antenna AP with either one or two dual-band 802.11n radios, 2x2 MIMO and external antennas. Model Configuration AP1010e One single-band 802.11n radio with 2x2 MIMO and external antennas AP1020e Two dual-band 802.11n radios with 2x2 MIMO and external antennas Features for the AP1000e include: •...
  • Page 32 AP1000e...
  • Page 33: Installing Ap1000I

    Installing AP1000i AP1000i is supported by System Director versions 4.1 and greater. This chapter describes how to install and configure an AP1000i. It contains the following sections: • “Safety Precautions” on page 19 • “Best Practices for a Mixed Network” on page 19 •...
  • Page 34: Unpack The Ap1000I

    Meru string over the air Assumptions for the above best practices include: • AP1000 models have Virtual Port disabled (recommended). • AP300 models have Virtual Port enabled (recommended). • AP1000is and AP300s are on the same channel. (AP1000i and AP320i could also be on different channels.)
  • Page 35: Power Requirements

    802.3af or 802.3at PoE cable; either one works automatically with no configuration required. For a list of supported PoEs, see the appendix “Supported Power Over Ethernet Devices for Fortinet APs” on page 93 Additional Equipment The following AP1000i mounting options require the listed additional equipment:...
  • Page 36: Installing Ap1000I

    • On a wall, orient the AP1000i horizontally so that you can read the Fortinet logo without tilt- ing your head at 90 degrees - this orientation provides optimum MIMO performance. •...
  • Page 37 • “Set AP1000i on a Shelf” on page 34 • “Mount AP1000i Above a Suspended Ceiling” on page 35 Mount AP1000i Below a Suspended Ceiling AP1000i ships ready to mount below a suspended ceiling; the built-in clips snap onto a ceiling rail.
  • Page 38 Figure 6: Install AP1000i Below a Suspended Ceiling T-bar (in ceiling) AP1000 Press down on the tab indicated in Figure 6 on page 24 above and rotate the AP1000i into place. Connect one end of the CAT5 (or greater) Ethernet cable with PoE to the 100/1000 Ether-...
  • Page 39 If you want to lock AP1000i in place, use the supplied locking tool to press the AP1000i locking mechanism shown in Figure 8 on page Figure 8: Optionally lock AP1000i AP1000 (mounted on ceiling) LOCK To unlock AP1000i, press the unlocking mechanism on the opposite side of AP1000i see Figure 5 on page Installing AP1000i...
  • Page 40 Mount AP1000i on a Dropped Ceiling Bevel Tile The mounting procedure for a ceiling that has recessed supports and lowered tiles is similar to that of mounting on a suspended ceiling. However, this procedure requires a specialized mounting bracket (ACC-MNT-SCRMKIT-03), as shown in Figure 9 on page Figure 9:...
  • Page 41 Figure 10: Unlock AP1000i UNLOCK Align the mounting bracket with the AP1000i slots used for the ceiling t-bar in the previous section (as shown in Figure 6 on page 24). Press down on the tab indicated in Figure 6 on page 24 and rotate the AP1000i into place.
  • Page 42 Figure 12 on page Figure 12: Optionally lock AP1000i AP1000 (mounted on ceiling) LOCK To unlock AP1000i, press the unlocking mechanism on the opposite side of AP1000i see Figure 10 on page Mount AP1000i on an Interlude T-Bar The mounting procedure for a ceiling that has interlude T-Bar supports is similar to that of mounting on a suspended ceiling.
  • Page 43 Figure 13: T-Bar Mounting Bracket Remove the ceiling tile alongside which the AP will be mounted. Be sure that AP1000i is not locked by inserting the locking key into the Unlock mechanism as shown in Figure 14 on page 29 below.
  • Page 44 Align the mounting bracket with the AP1000i slots used for the ceiling t-bar in the previous section (as shown in Figure 6 on page 24). Press down on the tab indicated in Figure 6 on page 24 and rotate the AP1000i into place. Push down on the thumbscrews provided on the mounting bracket and clip it to the ceiling bar that will support the AP.
  • Page 45 Figure 16: Optionally lock AP1000i AP1000 (mounted on ceiling) LOCK To unlock AP1000i, press the unlocking mechanism on the opposite side of AP1000i see Figure 10 on page Mount AP1000i on a Wall The AP1000i attaches directly to the wall. To mount an AP1000i on sheet rock or wall studs,...
  • Page 46 Figure 17: AP1000i Wall Bracket Wall mount with screws. Attach the PoE Ethernet cable to the Ethernet port shown in Figure 18 on page Be sure to connect the Ethernet cable to the Ethernet port. The cable can mistakenly be plugged into the Console port;...
  • Page 47 Mount AP1000i on a Wall Using the Optional Locking Kit The AP1000i locking wall mount kit (840-00052 MNT-WMKIT-01)contains a wall bracket, screws, and a locking key. To mount an AP1000i on sheetrock or wall studs with this kit, follow these steps: Attach AP1000i to the bracket as shown in Figure 19 on page...
  • Page 48 Figure 20: AP1000i Locked to a Wall $3 PRXQWHG RQ ZDOO ORFN locking kHy :DOO EUDFNHW :DOO EUDFNHW Set AP1000i on a Shelf Set AP1000i on any horizontal surface and then connect a PoE Ethernet cable. Be sure to connect the Ethernet cable to the Ethernet port. The cable can mistakenly be plugged into the Console port;...
  • Page 49 Mount AP1000i Above a Suspended Ceiling AP1000i is not plenum-rated and should only be mounted above ceilings in non-plenum air space, such as a return airflow for air conditioning. Use the optional T-bar box hanger mounting kit to mount AP1000i above suspended ceiling T- rails.
  • Page 50 Attach the mounting bar (depicted in Figure 23 on page 36) to the mounting brace (which looks like a small handle) with the crossbar of the mounting kit sandwiched between them. See Figure 24 on page Figure 23: Mounting Bar Figure 24: Assembled Mounting Bracket Mounting Bar...
  • Page 51 Figure 25: Lock AP1000i AP1000 (mounted on ceiling) LOCK Attach the legs for the mounting kit to the T-Bars in the ceiling by sliding the clips down onto each respective bar. Remove the top nut from each leg. Lower the crossbar (with the AP attached) onto the legs and screw the nuts back on top of the bar.
  • Page 52: Restoring Ap1000I Settings

    Restoring AP1000i Settings Trigger the Restore mechanism to return the AP1000i to the factory default settings. This overrides any changes that have been made from the controllers. Note that this restore mech- anism differs from the ones on the other APs. Instead of a straight paper clip, you need to use a paper clip bent at a right angle to push the mechanism trigger located on the inside as indi- cated in the Figure below.
  • Page 53: Check Ap1000I Leds

    Check AP1000i LEDs Figure 27: AP1000i Status LEDs LEDs Status Check AP1000i LEDs...
  • Page 54 Color State Status AP is off - either there is no power or the LEDs are set (right LED) to Off on the controller. Check the LED setting on the controller by clicking Configuration > Devices > AP, selecting the AP and then checking the setting for LED Mode.
  • Page 55: Where To Go From Here

    Where to Go From Here Now that the AP1000i is installed, go to the Meru System Director Getting Started for instructions on initializing the hardware. Return to this chapter to check the Guide status of the LEDs once the WLAN is operational; note that LED status is configurable, so the chart above may not apply to APs whose status was reconfigured.
  • Page 56 Where to Go From Here...
  • Page 57: Installing Ap1000E

    Installing AP1000e AP1000e is supported by System Director versions 5.1 and greater. This chapter describes how to install and configure an AP1000e. It contains the following sections: • “Safety Precautions” on page 43 • “Best Practices for a Mixed Network” on page 44 •...
  • Page 58: Best Practices For A Mixed Network

    Meru string over the air Assumptions for the above best practices include: • AP1000 models have Virtual Port disabled (recommended). • AP300 models have Virtual Port enabled (recommended). • AP1000es and AP300s are on the same channel. (AP1000e and AP320i could also be on different channels.)
  • Page 59: Unpack The Ap1000E

    802.3af or 802.3at PoE cable; either one works automatically with no configuration required. For a list of supported PoEs, see the appendix “Supported Power Over Ethernet Devices for Fortinet APs” on page 93 Additional Equipment The following AP1000e mounting options require the listed additional equipment:...
  • Page 60: Installing Ap1000E

    AP and the wireless clients. We recommend planning for about 20 data clients per radio (or per interference region) if you plan to use Virtual Port. This is the recommendation for a data-only installation. Refer to the Fortinet Deployment Guides on the support site for more information.
  • Page 61 Figure 28: Install AP1000e Below a Suspended Ceiling T-bar (in ceiling) Press down on the tab indicated in Figure 28 on page 47 above and rotate the AP1000e into place. Connect one end of the CAT5 (or greater) Ethernet cable with PoE to the 100/1000 Ether- net connector shown in Figure 29 on page 47...
  • Page 62 Mount AP1000e on a Dropped Ceiling Bevel Tile The mounting procedure for a ceiling that has recessed supports and lowered tiles is similar to that of mounting on a suspended ceiling. However, this procedure requires a specialized mounting bracket (ACC-MNT-SCRMKIT-03), as shown in Figure 30 on page Figure 30:...
  • Page 63 Figure 31: AP1000e Ethernet Port Console Ethernet port port port RES E T DC 5V CONSOLE Mount AP1000e on an Interlude T-Bar The mounting procedure for a ceiling that has interlude T-Bar supports is similar to that of mounting on a suspended ceiling. However, this procedure requires a specialized mounting bracket (ACC-MNT-SCRMKIT-04), as depicted in Figure 32 on page...
  • Page 64 Connect one end of the CAT5 (or greater) Ethernet cable with PoE to the 100/1000 Ether- net connector shown in Figure 33 on page 50 below. Be sure to connect the Ethernet cable to the Ethernet port. The cable can mistakenly be plugged into the Console port;...
  • Page 65 Slide the AP downwards until it locks into place. The plastic lever attached to the wall mount kit will click, locking the device. Connect the antennas to the ports on the AP. Attach the PoE Ethernet cable to the Ethernet port shown in Figure 35 on page Be sure to connect the Ethernet cable to the Ethernet port.
  • Page 66 Figure 36: Mounting Bar Figure 37: Assembled Mounting Bracket Mounting Bar Mounting Brace Clips attach to T-bar Gently press the underside of the AP1000e against the mounting brace and rotate it into place until the locking mechanism clicks. Note that this is essentially the same process as depicted in Figure 28 on page...
  • Page 67: Restoring Ap1000E Settings

    Connect one end of the PoE Ethernet cable to the Ethernet connector on the AP. Be sure to connect the Ethernet cable to the Ethernet port; the cable can mistakenly be plugged into the Console port. If you do this. the AP won’t power up. Use a shielded Cat 5e (or greater) Ethernet cable in order to comply with international electromagnetic emissions limits.
  • Page 68: Check Ap1000E Leds

    Check AP1000e LEDs Figure 39: AP1000e Status LEDs Color State Status AP is off - either there is no power or the LEDs (right LED) are set to Off on the controller. Check the LED setting on the controller by clicking Configuration >...
  • Page 69: Where To Go From Here

    Click OK. Where to Go From Here Now that the AP1000e is installed, go to the Fortinet System Director Getting Started Guide for instructions on initializing the hardware. Return to this chapter to check the status of the LEDs once the WLAN is operational; note that LED status is configurable, so the chart above may not apply to APs whose status was reconfigured.
  • Page 70 Where to Go From Here...
  • Page 71: Installing Ap1014I

    Installing AP1014i AP1014i is supported by System Director versions 5.3 and greater. This chapter describes how to install and configure an AP1014i. It contains the following sections: • “Safety Precautions” on page 57 • “Unpack the AP1014i” on page 57 •...
  • Page 72: Power Requirements

    802.3af or 802.3at PoE cable; either one works automatically with no configuration required. For a list of supported PoEs, see the appendix “Supported Power Over Ethernet Devices for Fortinet APs” on page 93 Additional Equipment The following AP1014i mounting options require the listed additional equipment:...
  • Page 73: Installing Ap1014I

    AP and the wireless clients. We recommend planning for about 20 data clients per radio (or per interference region) if you plan to use Virtual Port. This is the recommendation for a data-only installation. Refer to the Fortinet Deployment Guides on the support site for more information.
  • Page 74 • “Set AP1014i on a Shelf” on page 71 • “Mount AP1014i Above a Suspended Ceiling” on page 72 Mount AP1014i Below a Suspended Ceiling AP1014i ships ready to mount below a suspended ceiling; the built-in clips snap onto a ceiling rail.
  • Page 75 Figure 42: Install AP1014i Below a Suspended Ceiling T-bar (in ceiling) AP1000 Press down on the tab indicated in Figure 42 on page 61 above and rotate the AP1014i into place. Connect one end of the CAT5 (or greater) Ethernet cable with PoE to the 100/1000 Ether-...
  • Page 76 Figure 44 on page Figure 44: Optionally lock AP1014i AP1000 (mounted on ceiling) LOCK To unlock AP1014i, press the unlocking mechanism on the opposite side of AP1014i see Figure 41 on page Mount AP1014i on a Dropped Ceiling Bevel Tile The mounting procedure for a ceiling that has recessed supports and lowered tiles is similar to that of mounting on a suspended ceiling.
  • Page 77 Figure 45: Dropped Bevel Tile Mounting Bracket Remove the ceiling tile alongside which the AP will be mounted. Be sure that AP1014i is not locked by inserting the locking key into the Unlock mechanism as shown in Figure 46 on page 63 below.
  • Page 78 Align the mounting bracket with the AP1014i slots used for the ceiling t-bar in the previous section (as shown in Figure 42 on page 61). Press down on the tab indicated in Figure 42 on page 61 and rotate the AP1014i into place.
  • Page 79 Figure 48: Optionally lock AP1014i AP1000 (mounted on ceiling) LOCK To unlock AP1014i, press the unlocking mechanism on the opposite side of AP1014i see Figure 46 on page Mount AP1014i on an Interlude T-Bar The mounting procedure for a ceiling that has interlude T-Bar supports is similar to that of mounting on a suspended ceiling.
  • Page 80 Figure 49: T-Bar Mounting Bracket Remove the ceiling tile alongside which the AP will be mounted. Be sure that AP1014i is not locked by inserting the locking key into the Unlock mechanism as shown in Figure 46 on page 63 below.
  • Page 81 Press down on the tab indicated in Figure 42 on page 61 and rotate the AP1014i into place. Push down on the thumbscrews provided on the mounting bracket and clip it to the ceiling bar that will support the AP. Tighten the screws to ensure that the mechanism stays locked in place.
  • Page 82 Figure 52: Optionally lock AP1014i AP1000 (mounted on ceiling) LOCK To unlock AP1014i, press the unlocking mechanism on the opposite side of AP1014i see Figure 46 on page Mount AP1014i on a Wall The AP1014i attaches directly to the wall. To mount an AP1014i on sheet rock or wall studs,...
  • Page 83 Figure 53: AP1014i Wall Bracket Wall mount with screws. Attach the PoE Ethernet cable to the Ethernet port shown in Figure 54 on page Be sure to connect the Ethernet cable to the green uplink port. The yellow ports can be used to connect wired clients to the AP.
  • Page 84 Mount AP1014i on a Wall Using the Optional Locking Kit The AP1014i locking wall mount kit (840-00052 MNT-WMKIT-01)contains a wall bracket, screws, and a locking key. To mount an AP1014i on sheetrock or wall studs with this kit, follow these steps: Attach AP1014i to the bracket as shown in Figure 55 on page...
  • Page 85 Figure 56: AP1014i Locked to a Wall $3 PRXQWHG RQ ZDOO ORFN locking kHy :DOO EUDFNHW :DOO EUDFNHW Set AP1014i on a Shelf Set AP1014i on any horizontal surface and then connect a PoE Ethernet cable. Be sure to connect the Ethernet cable to the green uplink port. The yellow ports can be used to connect wired clients to the AP.
  • Page 86 Mount AP1014i Above a Suspended Ceiling AP1014i is not plenum-rated and should only be mounted above ceilings in non-plenum air space, such as a return airflow for air conditioning. Use the optional T-bar box hanger mounting kit to mount AP1014i above suspended ceiling T- rails.
  • Page 87 Attach the mounting bar (depicted in Figure 59 on page 73) to the mounting brace (which looks like a small handle) with the crossbar of the mounting kit sandwiched between them. See Figure 60 on page Figure 59: Mounting Bar Figure 60: Assembled Mounting Bracket Mounting Bar...
  • Page 88 Figure 61: Lock AP1014i AP1000 (mounted on ceiling) LOCK Attach the legs for the mounting kit to the T-Bars in the ceiling by sliding the clips down onto each respective bar. Remove the top nut from each leg. Lower the crossbar (with the AP attached) onto the legs and screw the nuts back on top of the bar.
  • Page 89: Restoring Ap1014I Settings

    Figure 62: AP1014i Green Uplink Port Use a shielded Cat 5e (or greater) Ethernet cable in order to comply with international electromagnetic emissions limits. Check that the AP1014i is operating correctly before replacing the ceiling tile to the ceiling. Verify correct operation using the LEDs, as shown in “Check AP1014i LEDs”...
  • Page 90: Check Ap1014I Leds

    Check AP1014i LEDs Figure 64: AP1014i Status LEDs LEDs Status Check AP1014i LEDs...
  • Page 91: Where To Go From Here

    Click OK. Where to Go From Here Now that the AP1014i is installed, go to the Fortinet System Director Getting Started Guide for instructions on initializing the hardware. Return to this chapter to check the status of the LEDs once the WLAN is operational; note that LED status is configurable, so the chart above may not apply to APs whose status was reconfigured.
  • Page 92 Where to Go From Here...
  • Page 93: Cautions And Warnings

    Cautions and Warnings The cautions and warnings that appear in this manual are listed below in English, German, French, and Spanish. Cautions A Caution calls your attention to a possible hazard that can damage equipment. "Vorsicht” weist auf die Gefahr einer möglichen Beschädigung des Gerätes in. Une mise en garde attire votre attention sur un risque possible d'endommagement de l'équi- pement.
  • Page 94 The radiated output power of the access points is well below the FCC radio frequency exposure limits. However, the Fortinet Access Point should be used in such a manner that the potential for human con- tact during normal operation is minimized. To avoid the possibility of exceeding the FCC radio fre- quency exposure limits, you should keep a distance of at least 20 cm between you (or any other person in the vicinity) and the Access Point antennas.
  • Page 95: Warnings

    Exposure to Radio Frequency Radiation. The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit an RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website http://www.hc-sc.gc.ca/rpb.
  • Page 96 Una advertencia le llama la atención sobre cualquier posible peligro que pueda ocasionar daños personales o la muerte. A continuación se dan las advertencias utilizadas en este man- ual. With plastic covers removed, this product is suitable for use in environmental air space in accordance with the Section 300-22(c) of the National Electric Code and Sections 2- 128.12 - 010 (3) and 12 - 100 of the Canadian Electrical Code.
  • Page 97 Inside antennas must be positioned to observe minimum separation of 20 cm. (~ 8 in.) from all users and bystanders. For the protection of personnel working in the vicinity of inside (downlink) antennas, the following guidelines for minimum distances between the human body and the antenna must be observed.
  • Page 98 Warnings...
  • Page 99: Regulatory Information

    Regulatory Information The Meru Access Point (APs) must be installed and used in strict accordance with the manu- facturer’s instructions as described in the user documentation that comes with the product. For country-specific approvals, see below. Meru Networks, Inc. is not responsible for any radio or television interference caused by unauthorized modification of APs, or the substitution or attachment of connecting cables and equipment other than that specified by Meru Networks, Inc.
  • Page 100: Fcc Radiation Exposure Statement

    FCC Radiation Exposure Statement The radiated output power of the Fortinet devices is well below the FCC radio frequency exposure lim- its. However, the Access Point should be used in such a manner that the potential for human contact during normal operation is minimized. When installing and operating these devices, keep a minimum distance of 20 cm (8 inches) between the antennas and any persons/users in the vicinity.
  • Page 101: Canada. Industry Canada (Ic)

    This device must not be co-located or operating in conjunction with any other antenna or transmitter. For products available in the USA and Canadian markets, only channels 1 through 11 can be operated. Selection of other channels is not authorized. Canada.
  • Page 102: Europe-Eu Declaration Of Conformity And Restrictions

    To reduce the potential radio interference to other users, the antenna type and gain should be chosen so that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding.
  • Page 103 EN 301 893. Broadband Radio Access Networks (BRAN). 5 GHz high-performance RLAN, harmonized EN standards covering essential requirements of article 3.2 of the R&TTE direc- tive. EN 301 489-17. Electromagnetic Compatibility and Radio Spectrum Matters (ERM). Electro- magnetic Compatibility (EMC) Standard for Radio Equipment and Services, Part 17 Specific Conditions for Wideband Data and HIPERLAN Equipment.
  • Page 104 Undertegnede Meru Networks, Inc. erklærer herved, at følgende udstyr Access Points over- holder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Hiermit erklärt Meru Networks, Inc. dass sich dieser/diese/dieses Access Points in Überein- stimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet.
  • Page 105: Ieee 802.11A Restrictions

    IEEE 802.11a Restrictions • These products are for indoor use only (5150–5250 MHz). • To ensure compliance with local regulations, be sure to set your Access Point to the country in which you are using the Access Point. • The Meru Access Point products can be used only indoors in the following countries: Austria, Belgium, Bulgaria, Czech Republic, Germany, Cyprus, Denmark, Estonia, Finland, France, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, The Netherlands, Norway, Portugal, Poland, Romania, Spain, Slovak Republic, Slovenia, Swe-...
  • Page 106: South Korea

    The AP1010e and AP1020e must be connected at the Ethernet port using shielded pair Ether- net (STP) cables only. Manufacturing Information The AP1000 is built in Taiwan. Factory information is provided under NDA and upon request. Distributed Antenna Systems (DAS) Fortinet does not certify or endorse any specific Distributed Antenna System (DAS) vendors.
  • Page 107: Supported Poes

    Description ACC-POE-AT- Mid-Span High Power pre-802.3at PoE injector (1 Port, 110V/220V AC input). Ideal for Fortinet AP300, AP300i, or AP1000; backward compatible with 802.3af, also works with Fortinet AP150. ACC-POE-AT- Mid-Span 802.3af+ High Power PoE injector (12 Port, 110V/220V AC 12AC input), 19"...
  • Page 108 Supported Power Over Ethernet Devices for Fortinet APs...
