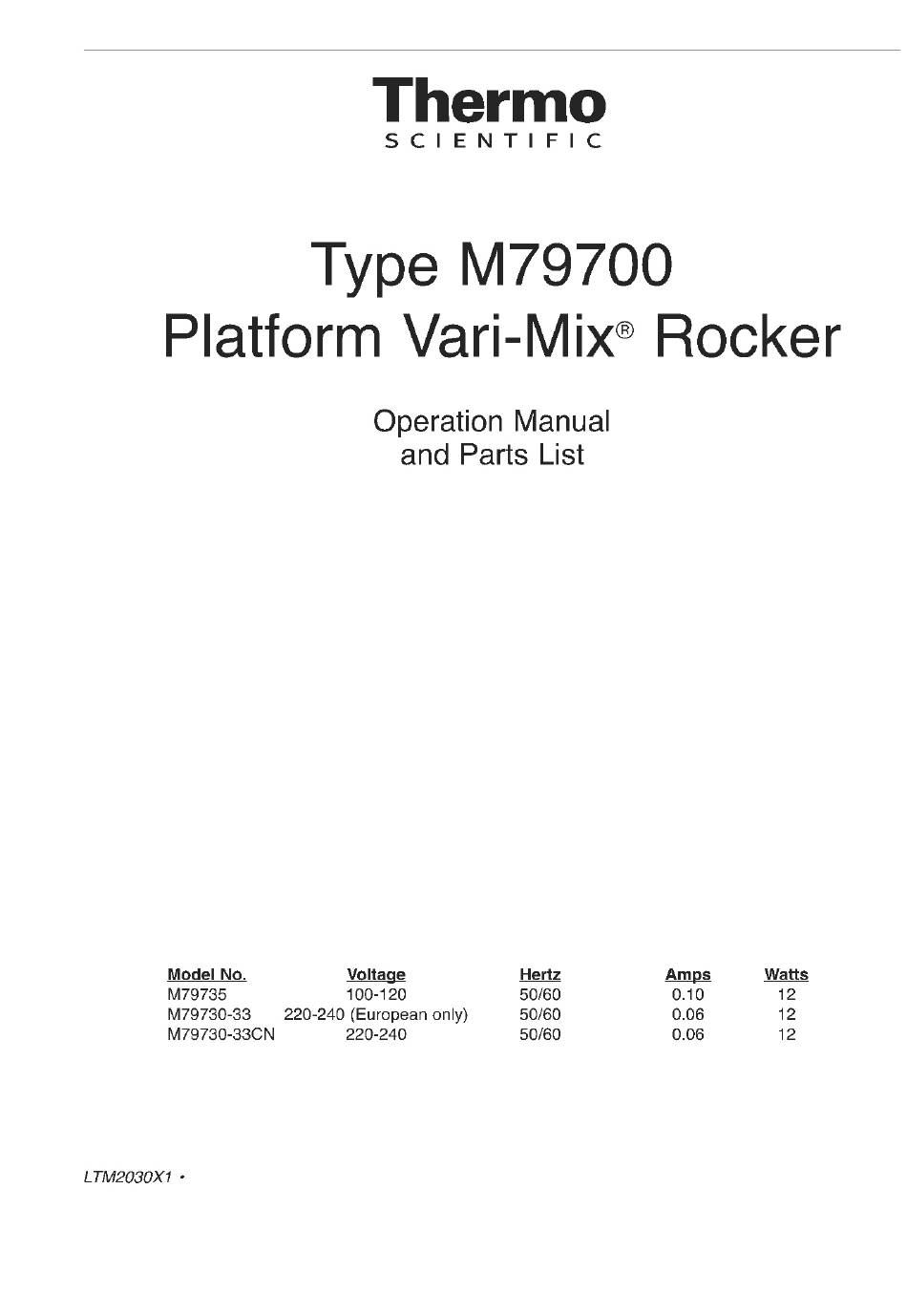

- Page 1 9/9/10...
-
Page 2: Table Of Contents
Table of Contents Safety Information ..............................3 Alert Signals..............................3 Warnings ..............................3 Introduction................................4 Principles of Operation ..........................4 Declaration of Conformity ..........................4 Technical Specifications..........................5 Installation ..............................5 Operation ................................6 Setting the Speed ............................6 Setting the Pitch............................6 Setting the Timer ............................6 Operating Tips ..............................7 Maintenance and Servicing ..........................8 Timer Verification ............................8 Adjusting the Calibration of the Speed Control ....................8 Disassembling the Slow Speed Variable Speed Platform Rocker..............9... -
Page 3: Safety Information
Safety Information Alert Signals Congratulations on your purchase of a Thermo Scientific Type M79700 Platform Vari-Mix Rocker. It has been designed with function, reliability, and safety in mind. It is your responsibility to install it in conformance with local Warning electrical codes. -
Page 4: Principles Of Operation
Thermo Fisher Scientific Robert-Bosch-Strasse 1,D-63505 Langenselbold,Germany. -
Page 5: Introduction
NTRODUCTION Technical Specifications Overall Dimensions: 12 5/8” W x 7 1/4” H x 12” D Platform Working Dimensions: 10 5/8” x 12 5/8” Platform Angle Variation (Pitch): 0 to ±24 angle rpm (No Load Condition): 5-30 rpm ± 2 rpm Maximum Load: Centered: 15 lbs. -
Page 6: Operation
Operation Place the timer control knob in the hold position for con- stant operation. The platform should rock in a quiet, smooth motion. Note If the equipment is used in a manner Setting the Speed not specified by the manufacturer, the protection provided by the equip- ment may be impared. -
Page 7: Operating Tips
PERATION Operating Tips It is safer to mix reagents and chemicals in small mouth labware to avoid splashing. Test vessel stability to ensure vessel will not tip, teeter, walk or slide. Improvised tie downs or trays may be used to hold unstable vessels in position if you prefer. -
Page 8: Maintenance And Servicing
Maintenance and Servicing Timer Verification Note The timer settings may be verified by setting the indicator If the equipment is used in a manner line on the timer knob to a specified reference mark and not specified by the manufacturer, the timing the elapsed time with a calibrated elapsed timer. -
Page 9: Disassembling The Slow Speed Variable Speed Platform Rocker
AINTENANCE AND ERVICING Disassembling the Platform Vari-Mix Rocker Unplug unit. Remove the nut securing the driver arm to the rocking platform. Slide the pivot bar out of its sleeve bearings. Remove the rocking plate. Remove the screws securing the top cover (2 per side and 2 on top). -
Page 10: Troubleshooting
Troubleshooting Problem Cause Solution Unit will not rock (though Timer is defective. Replace timer. power light illuminates). Defective motor, printed circuit board Replace appropriate part. or speed control. Fuse blown on PC board. Replace fuse. Unit will not rock (power light Unit is unplugged or power supply Verify that unit is plugged into a does not illuminate). -
Page 11: Exploded View
Exploded View... -
Page 12: Replacement Parts
Replacement Parts Model Type: M79700 Product Name: Platform Vari-Mix Rocker Series Number: 2030 Part Number Description BC797X2A Drive bushing, Link BC797X1A Support bushing, Nylon CR843X1 Cord set, 100/120V CR500X2 Cord set, 240V CRM2030X1 Cord set 5120-0016 Fuse (on PCB) MTX94... -
Page 13: Ordering Procedures
800-943-2006 or 800-926-0505. -
Page 14: One Year Limited Warranty
North America: USA/Canada +1 866 984 3766 (866-9-THERMO) www.thermo.com Europe: Austria +43 1 801 40 0, Belgium +32 2 482 30 30, France +33 2 2803 2180, Germany national toll free 08001-536 376, Germany international +49 6184 90 6940, Italy +39 02 02 95059 434-254-375, Netherlands +31 76 571 4440, Nordic/Baltic countries +358 9 329 100, Russia/CIS +7 (812) 703 42 15, Spain/Portugal +34 93 223 09 18, Switzerland +41 44 454 12 12, UK/ Ireland +44 870 609 9203...
