Ryobi RGN3800A Operator's Manual page 2

CIRCUIT
CARBURETOR
BREAKER
DRAIN SCREW

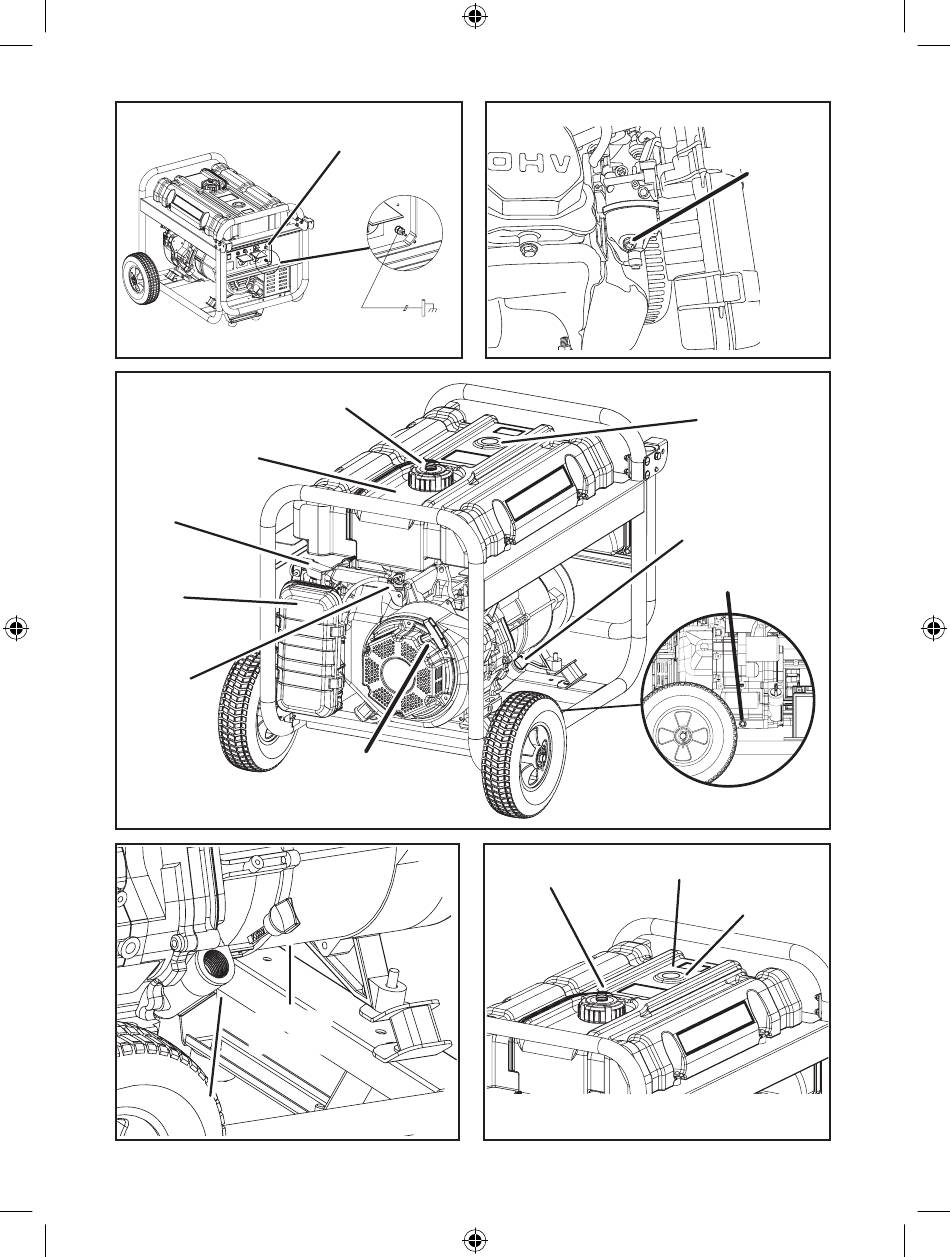

Fig. 1 Fig. 2
FUEL CAP
FUEL
LEVEL GAUGE
FUEL TANK
CHOKE
LEVER
OILCAP/ DIPSTICK
OIL DRAINAGE
PLUG
AIR
FILTER
FUEL
VALVE
RECOIL
STARTER GRIP
Fig. 3
FUEL TANK
FUEL CAP
FUEL LEVEL
GAUGE
OIL CAP/
OIL CAP/
DIPSTICK
DIPSTICK
OIL FILL HOLE
Fig. 4 Fig. 5
1
