G-Force
DANGER
INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE
IC700

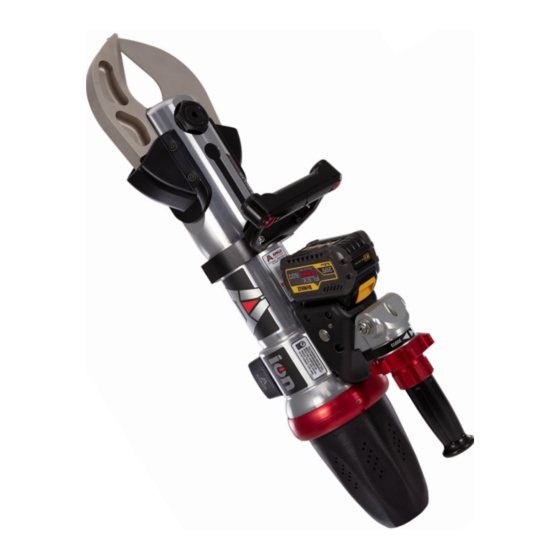

CUTTER Model: IC700
SPREADER Model: IS281
TELESCOPING RAM Model: ITR500
BATTERY DeWALT® Lithium Ion (AMKUS Part#) DCB606 (IBATTFV-6), DCB609 (IBATTFV-9),
CHARGER DeWALT® DCB118 1 Hour Charger, 120 VAC Part#: ICHRG120
HYDRAULIC SYSTEM Self-contained, 10,500 psi (724 bar) high-speed four stage pump
HYDRAULIC FLUID AMKUS MV1 (Mineral Oil base)
AMKUS RESCUE SYSTEMS
AMKUS.com
©Copyright AMKUS Rescue Systems 2020-2021
Understand manual before use. Operating AMKUS Rescue Systems without understanding the
manual, receiving proper training, and using appropriate personal protective equipment is a misuse
of AMKUS equipment. Obtain safety information at amkus.com
This instruction manual is intended to familiarize operators and maintenance personnel with the
operation, basic maintenance, and safety procedures associated with this product. This manual
should be kept available to all operating and maintenance personnel.
This manual does NOT address servicing of AMKUS Rescue Systems. Only competent rescue tool
repair technicians are qualified to repair AMKUS equipment.
Read and understand all instructions and warnings included in the packaging for DEWALT lithium
ion batteries and chargers.
DCB612 (IBATTFV-12)
Safety Data Sheet (SDS) for AMKUS MV1 Hydraulic Fluid is available at AMKUS.com and
CHEMTREC.com (for equipment stored and operated in environments below 32°F (0°C) contact
AMKUS Rescue System for recommendation)
Electro-hydraulic Rescue Tools
IS281
4201 Montdale Drive, Valparaiso, IN 46383-4098 USA
1
ION
Battery Powered
®
ITR500
800-592-6587 · 219-548-5000
LAI-004 July 20, 2021 Rev01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITR500 and is the answer not in the manual?

Questions and answers

Related Manuals for Amkus ITR500

Summary of Contents for Amkus ITR500

  • Page 1 This manual should be kept available to all operating and maintenance personnel. This manual does NOT address servicing of AMKUS Rescue Systems. Only competent rescue tool repair technicians are qualified to repair AMKUS equipment.
  • Page 2 AMKUS RESCUE SYSTEMS 4201 Montdale Drive, Valparaiso, IN 46383-4098 USA www.amkus.com 800-592-6587 • 219-548-5000 • Fax 219-476-1669 ©Copyright Amkus Rescue Systems, Inc. 2014-2016 LAA-004 December 8, 2016 Rev04 Safety Data Sheet (SDS) DeWalt Charger Original Packaging DeWalt Battery Original Packaging AMKUS MV1 HYDRAULIC FLUID ©Copyright AMKUS Rescue Systems 2020-2021...

  • Page 3: Table Of Contents

    10.1.5 HANDLE LIGHT BATTERY REPLACEMENT 11.0 TROUBLESHOOTING 11.1 GENERAL 11.2 TROUBLESHOOTING THE MOTOR 11.3 TROUBLESHOOTING THE HYDRAULICS 12.0 PARTS, SERVICE, AND TECHNICAL INFORMATION 13.0 DECOMMISSIONING 14.0 INSPECTION, CLEANING, DECONTAMINATION, AND STORAGE ©Copyright AMKUS Rescue Systems 2020-2021 LAI-004 July 20, 2021 Rev01...

  • Page 4: Meaning Of Safety Signal Words

    • Power units with electric motors or internal combustion engines are ignition sources. Flammable vapors heavier than air can accumulate in low spots. Avoid selecting these locations when setting up the power units. Use detectors to verify safe site selection. ©Copyright AMKUS Rescue Systems 2020-2021 LAI-004 July 20, 2021 Rev01...
  • Page 5 Risk of injury increases in unfavorable conditions such as poor lighting, inclines, loose, wet, or icy surfaces. Follow accepted safe lifting practices. Use of hydraulic fluids other than AMKUS MV1 or MV0 (see Specifications for fluid for specific tool NOTICE lines) can result in equipment damage and loss of function.

  • Page 6: General Description

    AMKUS manufactures a complete line of ION battery powered electro-hydraulic rescue tools. These rescue tools continue the AMKUS tradition of superior craftsmanship and quality. AMKUS backs these tools with a standard warranty published on the AMKUS website. The AMKUS ION tool's self-contained hydraulic system provides the motive forces needed to operate the tool. The brushless direct current (DC) motor operates from energy stored in a 60 Volt battery.

  • Page 7: Safety Markings

    SAFETY MARKINGS Telescoping Ram Product Information Cutter, Spreader Safety Label Model # Serial # (also engraved on tool) Date of Manufacture Fluid Type Figure 3.2 ©Copyright AMKUS Rescue Systems 2020-2021 LAI-004 July 20, 2021 Rev01...

  • Page 8: Specifications

    20V MAX tools and power in the new 60V MAX and 120V MAX tools. Also compatible with: DEWALT DCB1800B 1800 Watt Portable Power Station and Simultaneous Battery Charger - AMKUS ICHRG120-4 ©Copyright AMKUS Rescue Systems 2020-2021 LAI-004 July 20, 2021 Rev01...

  • Page 9: Cutter Specifications

    AMKUS tools facilitate the extrication of entrapment victims. Only trained emergency services WARNING personnel should attempt victim extrication. All personnel using Amkus rescue tools are assumed to have completed a training course covering safe extrication of entrapment victims. The training must be acknowledged as educationally sound by the local Authority Having Jurisdiction (AHJ) over such training.

  • Page 10: Operating Considerations

    SET-UP PROCEDURE Normally, AMKUS equipment is prepared and serviced by your dealer prior to delivery. If, however, you have decided to place the equipment into service yourself, remove equipment from the packing cartons and carefully inspect for damage. Damage that occurs during shipment should be reported immediately to the carrier.

  • Page 11: Power Button On/Off

    HANDLE LIGHTS AMKUS dual handle lights operate in one of two modes, an on/off mode (standard), or an optional mode with three intensity levels. To operate the lights in the on/off mode, press the power button to turn the lights on. Press the button again to turn off.

  • Page 12: Control Valve Actuator

    Tool in Error • Temperature is over 113°F (45°C) • Temperature is under 3°F (-16°C) • Actuator ON, motor not running • Actuator NOT ON, motor running Flashing Red Battery Fault ©Copyright AMKUS Rescue Systems 2020-2021 LAI-004 July 20, 2021 Rev01...

  • Page 13: Cutting

    The blades on AMKUS cutters effectively cut steering columns, brake pedals, door mechanisms, CAUTION and other vehicle items as necessary for extrication. However, using AMKUS cutters as a piercing tool for heavy metal is not recommended. Therefore, when cutting, take care to insure the blade tips move through a clear path of travel.
  • Page 14 CORRECT BLADE POSITION INCORRECT BLADE POSITION BLADE TIPS STAY TOGETHER BLADES FLEX FORCING TIPS APART Figure 7.5 ©Copyright AMKUS Rescue Systems 2020-2021 LAI-004 July 20, 2021 Rev01...

  • Page 15: Spreading / Squeezing / Lifting

    • Always stabilize the object being lifted. INCORRECT TIPS MAY SLIP CORRECT INCREASE GAP AND STARTING POSITION STARTING POSITION REPOSITION TIPS Figure 7.6B For exchanging spreader tips, See Section 8.1 on page 17. ©Copyright AMKUS Rescue Systems 2020-2021 LAI-004 July 20, 2021 Rev01...

  • Page 16: Telescoping Ram Operation

    OFF (neutral) position. The ram is NOT to be used for pulling tension loads with pistons retracting. Too much space Too much space Space filled with cribbing CORRECT STARTING POSITION INCORRECT STARTING POSITION Table 7.7B ©Copyright AMKUS Rescue Systems 2020-2021 LAI-004 July 20, 2021 Rev01...

  • Page 17: Accessories

    • Activate the control valve actuator to close the arms and draw the load Figure 8.2A Chain Rating: 3/8” grade 70 Transport chain, working load limit 6600 lbs (29.94 kN) LOCK RELEASE Figure 8.2B ©Copyright AMKUS Rescue Systems 2020-2021 LAI-004 July 20, 2021 Rev01...

  • Page 18: Safety Guards

    The use of damaged blades decreases the cutting efficiency of the tool and can overheat the motor. Replace the blades when they become worn, cracked, or gouged. (Consult AMKUS Rescue Systems) Check the torque on the cutter and combination tool pivot bolt monthly. Proper pivot bolt torque is 140 ft-lb (190 N-m).

  • Page 19: Lubrication

    10.1.4 LUBRICATION Cutter blades, combi blades, spreader arms, links, and pins are lubricated with white lithium grease. Annual re-lubrication per AMKUS Service Procedures is recommended for average service conditions. More frequent lubrication may be required for severe or frequent usage conditions.

  • Page 20: Parts, Service, And Technical Information

    Parts, service, and technical information may be obtained from your local AMKUS dealer, or at amkus.com 13.0 DECOMMISSIONING When decommissioning any AMKUS Rescue Systems Tool or power supply, follow local regulations. For proper disposal information, contact your local AMKUS Rescue Systems dealer.
