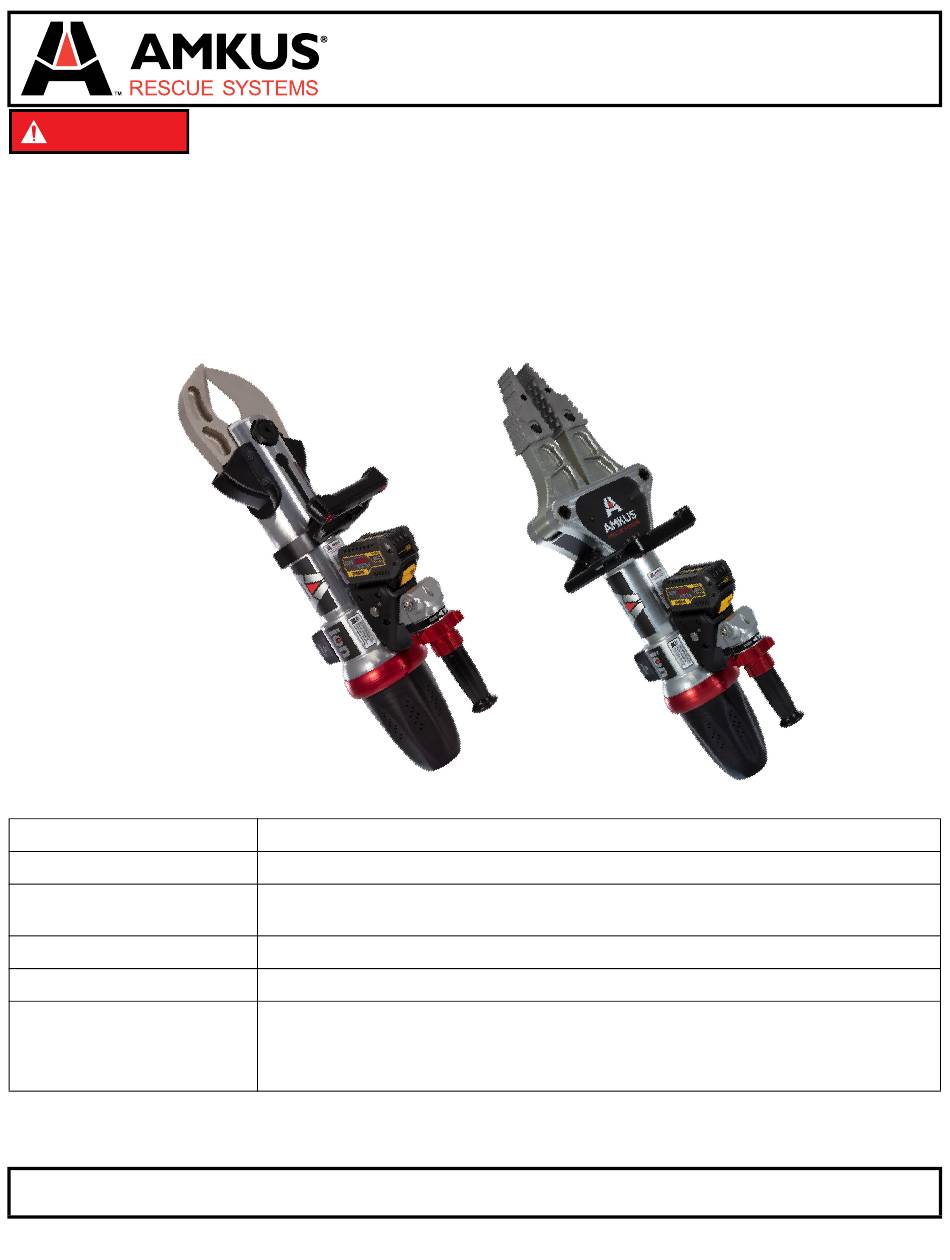

G-Force
DANGER
INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE

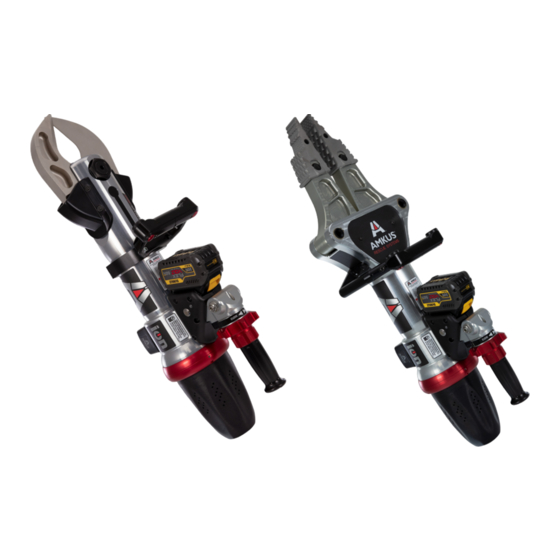

CUTTER Model: IC700
SPREADER Model: IS281
BATTERY DeWALT® Lithium Ion (AMKUS Part#) DCB606 (IBATTFV-6), DCB609 (IBATTFV-9),
CHARGER DeWALT® DCB118 1 Hour Charger, 120 VAC Part#: ICHRG120
HYDRAULIC SYSTEM Self-contained, 10,500 psi (724 bar) high-speed four stage pump
HYDRAULIC FLUID AMKUS MV1 (Mineral Oil base)
AMKUS RESCUE SYSTEMS
AMKUS.com
©Copyright AMKUS Rescue Systems 2020-2021
Understand manual before use. Operating AMKUS Rescue Systems without understanding the
manual, receiving proper training, and using appropriate personal protective equipment is a misuse
of AMKUS equipment. Obtain safety information at amkus.com
This instruction manual is intended to familiarize operators and maintenance personnel with the
operation, basic maintenance, and safety procedures associated with this product. This manual
should be kept available to all operating and maintenance personnel.
This manual does NOT address servicing of AMKUS Rescue Systems. Only competent rescue tool
repair technicians are qualified to repair AMKUS equipment.
Read and understand all instructions and warnings included in the packaging for DEWALT lithium
ion batteries and chargers.
IC700
DCB612 (IBATTFV-12)
Safety Data Sheet (SDS) for AMKUS MV1 Hydraulic Fluid is available at AMKUS.com and
CHEMTREC.com (for equipment stored and operated in environments below 32°F (0°C) contact
AMKUS Rescue System for recommendation)
Electro-hydraulic Rescue Tools
4201 Montdale Drive, Valparaiso, IN 46383-4098 USA
1
ION
Battery Powered
®
IS281
800-592-6587 · 219-548-5000
LAI-004 February 3, 2021 Rev00
