****** ****** ****** USB Modem
by Sierra Wireless
598U
© 2008 ******. ****** and the logo are trademarks of ******. Other marks are the property of their respective
owners.
© 2008 Sierra Wireless. All rights reserved. Sierra Wireless, the Sierra Wireless logo, and the red wave design are
trademarks of Sierra Wireless.
Advertisement
Table of Contents
Related Manuals for Sierra Wireless U598
Summary of Contents for Sierra Wireless U598
- Page 1 © 2008 ******. ****** and the logo are trademarks of ******. Other marks are the property of their respective owners. © 2008 Sierra Wireless. All rights reserved. Sierra Wireless, the Sierra Wireless logo, and the red wave design are trademarks of Sierra Wireless.
-
Page 3: Table Of Contents
Table of Contents Your ****** ****** ****** USB Modem ........i How to Use This Guide . - Page 4 Section 3: Technical Specifications, Regulatory and Safety Information, and Warranty ..... 21 3A. Technical Specifications ..........22 LED Operation .
-
Page 5: Your ****** ****** ****** Usb Modem
Your ****** ****** ****** USB Modem Thank you for purchasing a ****** ****** ****** USB modem. This USB modem offers more freedom than ever before. No wires, no cables—just access to your data when you need it. The power of the Internet is truly at your fingertips. -
Page 6: How To Use This Guide
How to Use This Guide The advantages of ****** are as clear as each wireless connection you make. With ****** service, we give you what you really want from a wireless service provider—clear connections, easy-to-understand service plans, and self-servicing options for managing your account. -
Page 7: Section 1: Introducing The ****** ****** ****** Usb Modem
Section 1 Introducing the ****** ****** ****** USB Modem... -
Page 8: Introducing The ****** ****** ****** Usb Modem

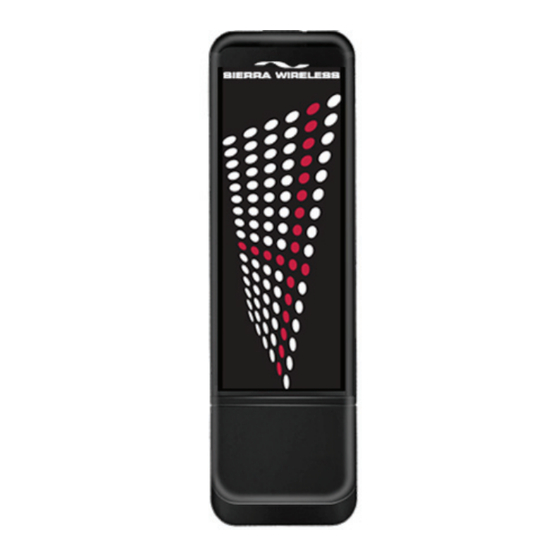

This section introduces your ****** ****** ****** USB modem, and describes what is included with your USB modem. Your ****** ****** ****** USB Modem The Sierra Wireless 598U USB modem is a dual-band wireless USB modem. It enhances the functionality of your mobile computing devices by adding wireless connectivity to the Internet. -
Page 9: Package Contents
Package Contents Your ****** ****** ****** USB modem package contains the following components: ****** ****** ****** USB modem by Sierra Wireless (Model 598U) Get Started guide (this document) USB extension cable with laptop clip Note To meet FCC (regulatory) requirements, use only the supplied USB extension cable and laptop clip;... - Page 10 Section 1A. Introducing the ****** ****** ****** USB Modem...
-
Page 11: Section 2: Installing And Using The Usb Modem
Section 2 Installing and Using the USB Modem... -
Page 12: Installing The Software
Section 2A Installing the Software Installing the Software on a Windows Computer (page 6) Installing the Software on a Mac Computer (page 9) The installation process has two stages: — Insert the USB modem to install the drivers and the Installing the Software and Drivers software (for Windows, see below;... - Page 13 Installing the Software and Drivers Note Windows Vista users: You must log in with administrative privileges to install the software and drivers. Windows XP users: You may need to log in with administrative privileges, depending on your Windows configuration. As part of the installation process you may be prompted to restart your computer; save any open documents.
- Page 14 Windows detects the USB modem and installs the drivers for it. This may take a few minutes. Once completed, the system tray may display “Your devices are ready to use” or “Your new hardware is installed and ready to use.” LED indicator is lit (blue, or blinking amber);...
-
Page 15: Installing The Software On A Mac Computer
If a message that you must restart your computer is displayed, click to restart your computer. Wait until your computer restarts. Proceed to “Starting the Windows Software” on page 11. Installing the Software on a Mac Computer System Requirements The ****** ****** ****** USB modem is supported on a MacBook™, MacBook Air™, MacBook ®... - Page 16 Gripping both sides of the USB modem, insert it into your computer’s USB slot. Alternatively, you can attach the USB extension cable to your computer’s USB slot, connect the USB modem and laptop clip to the USB extension cable, and then attach the laptop clip to the top of your laptop’s screen (see page 13).
-
Page 17: Using Your Usb Modem
Section 2B Using Your USB Modem Starting the Windows Software (page 11) Starting the Mac Software (page 11) Activating Your USB Modem (page 12) Using the USB Extension Cable and Laptop Clip (page 13) Viewing the User Guide (page 14) Removing the USB Modem (page 15) Contacting ****** Customer Service (page 15) Troubleshooting (page 16) -
Page 18: Activating Your Usb Modem
Activating Your USB Modem If your USB modem has not been preactivated or you have not activated it at the time of purchase, you must activate your account and configure the USB modem to use your account. If the “****** ****** ******” window appears, click to indicate that you’d like to have the network autoprogram your USB modem. -
Page 19: Using The Usb Extension Cable And Laptop Clip
Using the USB Extension Cable and Laptop Clip Optionally, you can use the provided USB extension cable and laptop clip. The laptop clip fits on top of your laptop screen and holds your USB modem. This allows you to use your USB modem in crowded spaces. -
Page 20: Viewing The User Guide
Place the laptop clip, with the USB modem in it, on top of your laptop screen, as shown in the photo below. Viewing the User Guide The user guide provides detailed information on the Windows and Mac versions of the ****** ****** software. -
Page 21: Removing The Usb Modem
Removing the USB Modem Exit the ****** ****** software if it is open. If a memory card (microSD™) is inserted into the USB modem, ensure that you have completed any file transfers, and then safely remove the hardware: Click the Safely Remove Hardware icon ( in Windows Vista;... -
Page 22: Troubleshooting
Troubleshooting For a more complete listing of errors and possible solutions, please see the user guide or online Help. You may also visit or contact ****** Customer Service (see www.******.com above). Problem/error Solution The USB modem has no power. Ensure the following: The USB modem is properly inserted. -
Page 23: Using A Memory Card (Microsd)
Section 2C Using a Memory Card (microSD) Inserting the Memory Card (microSD) (page 17) Removing the Memory Card (microSD) (page 18) With your USB modem and a microSD memory card (sold separately), you can store files (for example, files you download from the Internet) or transfer files (for example, images and music) between Your computer recognizes the SD-compatible devices, without the need of another flash drive. -
Page 24: Removing The Memory Card (Microsd)
Note Formatting erases all the data on the memory card, after which the files CANNOT be retrieved. To prevent the loss of important data, please check the contents before you format the memory card. Removing the Memory Card (microSD) Note The memory card can be easily damaged by improper operation. - Page 25 Important Connection Information To avoid loss of data, DO NOT remove the memory card while files are being accessed or transferred. DO NOT turn off or restart your computer, or put it into standby mode, while using a memory card. Doing so will result in loss or damage of data. Section 2C.
-
Page 27: Section 3: Technical Specifications, Regulatory And Safety Information, And Warranty
Section 3 Technical Specifications, Regulatory and Safety Information, and Warranty... -
Page 28: Technical Specifications
Section 3A Technical Specifications LED Operation (page 22) Radio Frequency and Electrical Specifications (page 24) Software Specifications (page 25) Environmental Specifications (page 26) Mechanical Specifications (page 27) This section describes the LED indicators and various specifications of your ****** ****** ****** USB modem. - Page 29 State of LED Indicates Blue, blinking The USB modem’s firmware is being updated. Do not remove the USB modem. Amber, blinking The USB modem is searching for service. If this state persists, try the following: Reorient your computer. If you are inside a building or near a structure that may be blocking the signal, change the position or location of your computer.
-
Page 30: Radio Frequency And Electrical Specifications
Approvals Compliant with: IS-2000 Release 1.0 (CDMA (1X), IS-707-A Data, IS-856 (CDMA 1xEV-DO), IS-866, IS-878, IS-890, CDMA Development Group FCC (ID: N7NU598) Industry Canada (ID: 2417C-U598) Voltage +5.0 Vdc from USB slot Current Maximum: 600 mA (from USB port) Typical data call current (talk mode):... -
Page 31: Software Specifications
Receive PCS: 1930 to 1989.95 MHz Cellular: 869.04 to 893.97 MHz GPS: 1575.42 MHz Channel spacing 1.25 MHz Frequency stability ±150 Hz Software Specifications Position Location Mobile Station based Data service IS-707A Mobile IP Supported SMS (IS-637) Not supported Not supported OMA-DM Supported OTASP (IS-683A, IS-683B, IS-683C) -
Page 32: Environmental Specifications
Single Voice Not supported E911 Not supported TTY/Accessibility Not supported Environmental Specifications Operating temperature -20 to +55°C Storage temperature -40 to +85°C Humidity 95%, non-condensing Vibration Random vibration, 10 to 1000 Hz, nominal 6G RMS in each of 3 mutually perpendicular axes. -
Page 33: Mechanical Specifications
Mechanical Specifications Dimensions (W x L x H) 24 mm x 74 mm x 12 mm Power button Not supported Headset jack Not supported Amber/blue Section 3A. Technical Specifications... -
Page 34: Regulatory Information
Section 3B Regulatory Information Regulatory Notices (page 29) Patents (page 31) Trademarks (page 32) Copyright (page 32) Limitation of Liability (page 32) Additional Information and Updates (page 33) This section contains important regulatory notices about your ****** ****** ****** USB modem, and also patent and other information. -
Page 35: Regulatory Notices
This USB modem must not be NOTE: used in any unapproved configurations. For details, contact Sierra Wireless. If the orientation of your computer’s USB slot or the thickness of your computer WARNING: are such that pressure is applied to the modem’s end or side, you may damage the... - Page 36 This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Any changes or modifications not expressly approved by Sierra Wireless could CAUTION: void the user’s authority to operate the equipment.
-
Page 37: Patents
5,228,054 5,267,261 5,267,262 5,337,338 5,414,796 5,416,797 5,490,165 5,504,773 5,506,865 5,511,073 5,535,239 5,544,196 5,568,483 5,600,754 5,657,420 5,659,569 5,710,784 5,778,338 Manufactured or sold by Sierra Wireless or its licensees under one or more patents licensed from InterDigital Group. Section 3B. Regulatory Information... -
Page 38: Trademarks
Trademarks ****** and the logo are trademarks of ******. Other marks are the property of their respective owners. Sierra Wireless, the Sierra Wireless logo, and the red wave design are trademarks of Sierra Wireless. ® Windows is a registered trademark of Microsoft Corporation. -
Page 39: Additional Information And Updates
Sierra Wireless product, regardless of the number of events, occurrences, or claims giving rise to liability, be in excess of the price paid by the purchaser for the Sierra Wireless product. Additional Information and Updates... -
Page 40: Important Safety Information
****** ****** ****** USB modem by Sierra Wireless (598U USB modem) CDMA modem, or for failure of the ****** ****** ****** USB modem by Sierra Wireless (598U USB modem) to transmit or receive such data. - Page 41 The driver or operator of any vehicle should not operate the ****** ****** ****** USB modem by Sierra Wireless (598U USB modem) while in control of a vehicle. Doing so will detract from the driver or operator's control and operation of that vehicle. In some jurisdictions, operating such communications devices while in control of a vehicle is an offense.
-
Page 42: One-Year Limited Warranty
The original end-user purchaser of the enclosed wireless personal computer modem card (the “Product”) from Sierra Wireless (the “Vendor”) or one of its authorized suppliers, is offered a personal, non-transferable, limited warranty that: (a) the Product will be of good quality and free from defects in design, materials, workmanship, and manufacture under normal use and service;... - Page 43 authorized service center; (d) Products which have been damaged due to fire, flood, acts of God, or other acts which are not Vendor’s fault and which the Product is not specified to tolerate; (e) cosmetic damage; (f) Products which have been operated outside of published maximum ratings;...
- Page 44 FOR THE PRODUCT. THE LIMITATIONS IN THIS SECTION SHALL APPLY WHETHER OR NOT THE ALLEGED BREACH, DEFAULT, NON-PERFORMANCE, OR FAILURE IS A BREACH OF FUNDAMENTAL CONDITION OR TERM, OR A FUNDAMENTAL BREACH. In the event that the Product supplied by Vendor is found to infringe any third-party US or Canadian patent, trade secret, copyright, trademark, or other proprietary right and/or the use of the Product is enjoined, Vendor will, at its sole option, either (a) procure for you the right to use such Product;...
