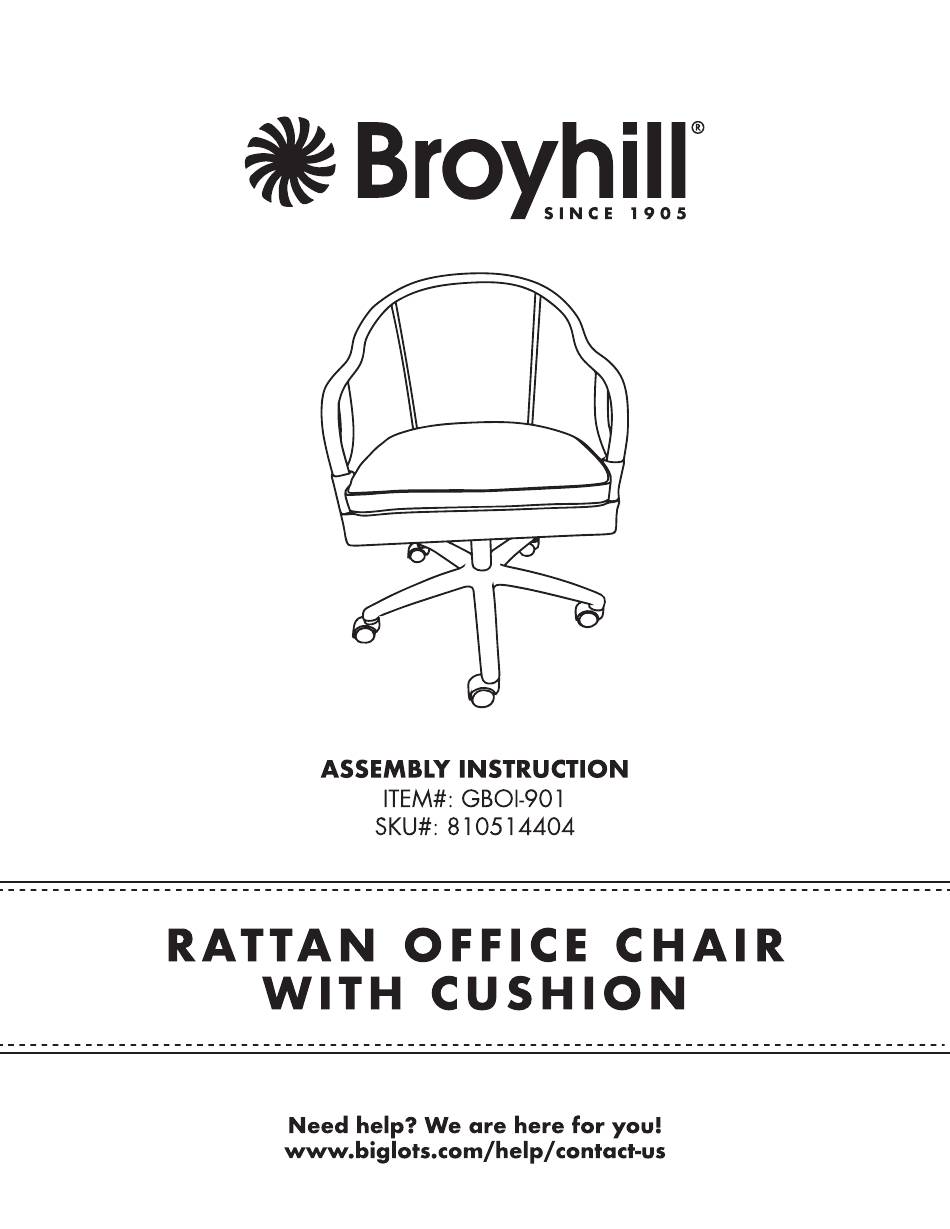

Summary of Contents for Broyhill GBOI-901
- Page 2 GENERAL BEST PRACTICES FOR ASSEMBLY: Read all instructions before starting Clear a flat covered space to being We recommend two adults for assembly Note that hardware required is provided for every step Pay attention to orientation Helpful hints provided along the way Retain these assembly instructions for future reference WARNINGS: Use the correct screws as indicated.
- Page 3 PARTS LIST Part No. Part Image Part No. Part Image Chair Seat Seat Cushion Chair Base Pole Screw(M6x15mm) Chair Base Washer Caster Wheel Allen Wrench Tilt Tension Control PRODUCT MAP...
- Page 4 STEP PART REQUIRED : 1 & 5 Using the Allen wrentch to tighten all the screws. STEP PART REQUIRED : 1, 2 & 5...
- Page 5 STEP PART REQUIRED : 3 & 4 STEP PART REQUIRED : 1, 2, 3, 4 & 5 Tighten all the screws.
- Page 6 STEP PART REQUIRED : 6 Finished! SPECIAL WARNING...
- Page 7 SPECIAL WARNING Warranty One-year limited warrantly. Proof of purchase (dated register receipt) is required for warranty claims. It remains the customer's responsibility for freight and packing charges to and from the service center.
